'08-10 models

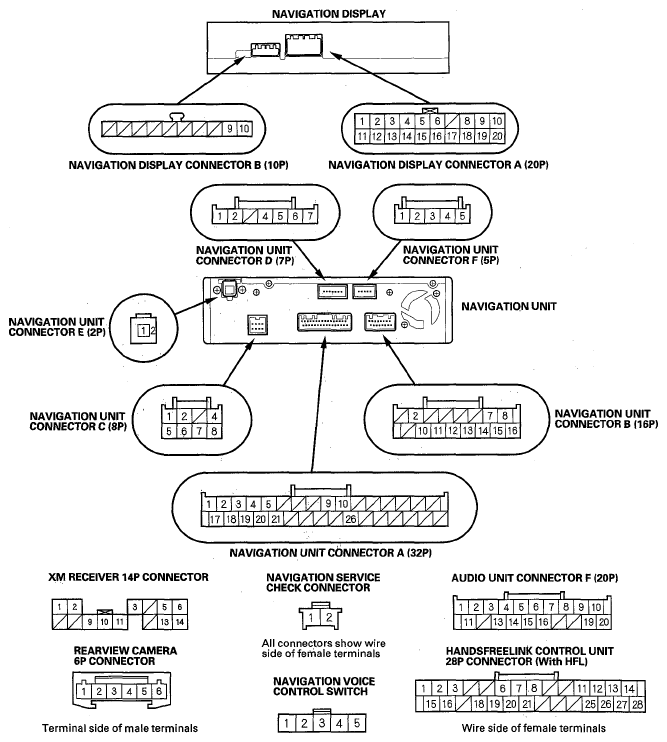

Fig 1: Identifying Navigation Unit Connector For Inputs And Outputs (08-09 models)
G05527447Courtesy of AMERICAN HONDA MOTOR CO., INC.
