Navigation display connector B (10P)

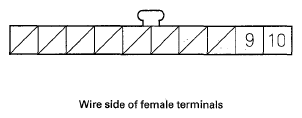

Fig 1: Identifying Navigation Display Connector B (10P)
G05527459Courtesy of AMERICAN HONDA MOTOR CO., INC.
NAVIGATION DISPLAY CONNECTOR B (10P)

Terminal Number Wire Color Terminal Name Description Voltage (about) Symptom
B9 BLU DISP OPEN Display open/close signal 0-3.3 V If open: CD Eject/Load function does not work.
If short to around: CD Eject/Load function works.
B10 PNK CD EJECT CD eject signal 0-3.3 V If open: Display can be opened or closed.
If short to ground: Display cannot be opened or closed.
