DTC U0122: F-CAN Malfunction (PCM-VSA Modulator-Control Unit)

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).
  • Information marked an asterisk (*) applies to the '08-10 models.
  1. Turn the ignition switch to ON (II).
  2. Check for Pending or Confirmed DTC's with the HDS.

    Are DTC U0073 (U0029)* and U0122 indicated at the same time?

    YES  -Go to TROUBLESHOOTING FOR DTC U0073 (U0029) *.

    NO  -Go to step 3.

  3. Clear the DTC with the HDS.
  4. Check for Pending or Confirmed DTC's with the HDS.

    Is DTC U0122 indicated?

    YES  -Go to step 5.

    NO  -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the VSA modulator-control unit and the PCM.

  5. Check for communication to the VSA system with the HDS.

    Does the HDS communicate with the VSA modulator-control unit?

    YES  -Go to step 6.

    NO  -Go to the DLC CIRCUIT TROUBLESHOOTING  .

  6. Turn the ignition switch to LOCK (0).
  7. Jump the SCS line with the HDS.
  8. Disconnect the VSA modulator-control unit 46P connector.
  9. Disconnect PCM connector A (49P).
  10. Check for continuity between PCM connector terminal A48 and VSA modulator-control unit 47P connector terminal No. 11.
    Fig 1: Checking Continuity Between PCM Connector Terminal A48 And VSA Modulator-Control Unit 47P Connector Terminal No. 11
    G06276717Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  -Go to step 11.

    NO  -Repair open in the wire between the PCM (A48) and the VSA modulator-control unit, then go to step  12.

  11. Check for continuity between PCM connector terminal A49 and VSA modulator-control unit 47P connector terminal No. 15.

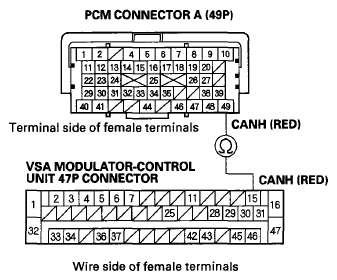

    Fig 2: Checking Continuity Between PCM Connector Terminal A49 And VSA Modulator-Control Unit 47P Connector Terminal 15
    G06276718Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    YES  - Substitute a known-good VSA modulator-control unit (See VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ), then go to step 12 and recheck. If DTC U0122 is not indicated, replace the original VSA modulator-control unit (See VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ), then go to step 12.

    NO  -Repair open in the wire between the PCM (A49) and the VSA modulator-control unit, then go to step 12.

  12. Reconnect all connectors.
  13. Turn the ignition switch to ON (II).
  14. Reset the PCM with the HDS.
  15. Do the PCM idle learn procedure (see PCM IDLE LEARN PROCEDURE ).
  16. Check for Pending or Confirmed DTC's with the HDS.

    Is DTC U0122 indicated?

    YES  -Check for poor connections or loose terminals at the VSA modulator-control unit and the PCM, then go to step  1.

    NO  -Troubleshooting is complete. If any other Pending or Confirmed DTC's are indicated, go to the indicated DTC'S TROUBLESHOOTING .
