AcuraLink Control Unit (XM Receiver) Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

With AcuraLink:

NOTE: The AcuraLink must be reactivated by Acura Client Services when:

The AcuraLink control unit (XM receiver) is replaced.
DATA RESET was selected while in the self-diagnostic function.
Vehicle ownership changes.

Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).

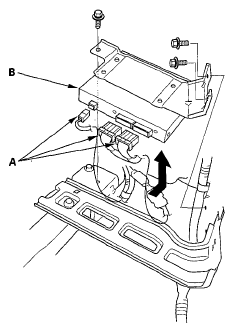

Disconnect the connectors (A), then remove the bolts and pull out the AcuraLink control unit (XM receiver) (B).

Fig 1: Identifying Acuralink Control Unit (XM Receiver)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the AcuraLink control unit (XM receiver) in the reverse order of removal.
NOTE: If you replaced the AcuraLink control unit, make sure it has the latest software (see UPDATING THE ACURALINK CONTROL UNIT ).
