XM Receiver Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
Disconnect the connectors (A), then remove the bolts and pull out the XM receiver (B).

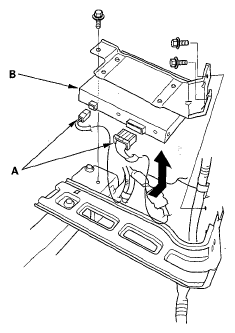

Fig 1: Identifying XM Receiver
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the XM receiver in the reverse order of removal.
