C601 Connector End View

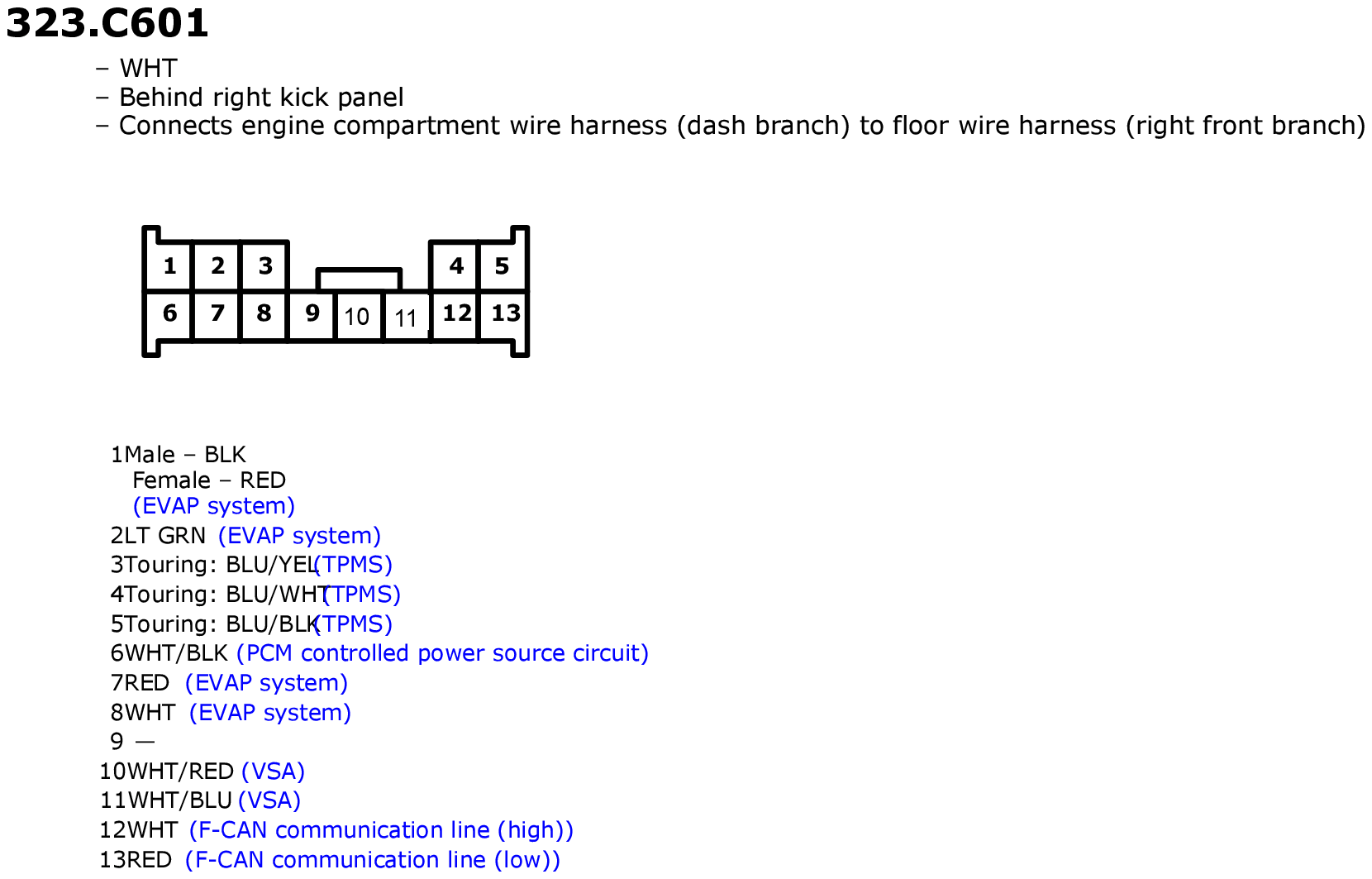

Fig 1: C601 Connector End View
GHHW5141Courtesy of AMERICAN HONDA MOTOR CO., INC.

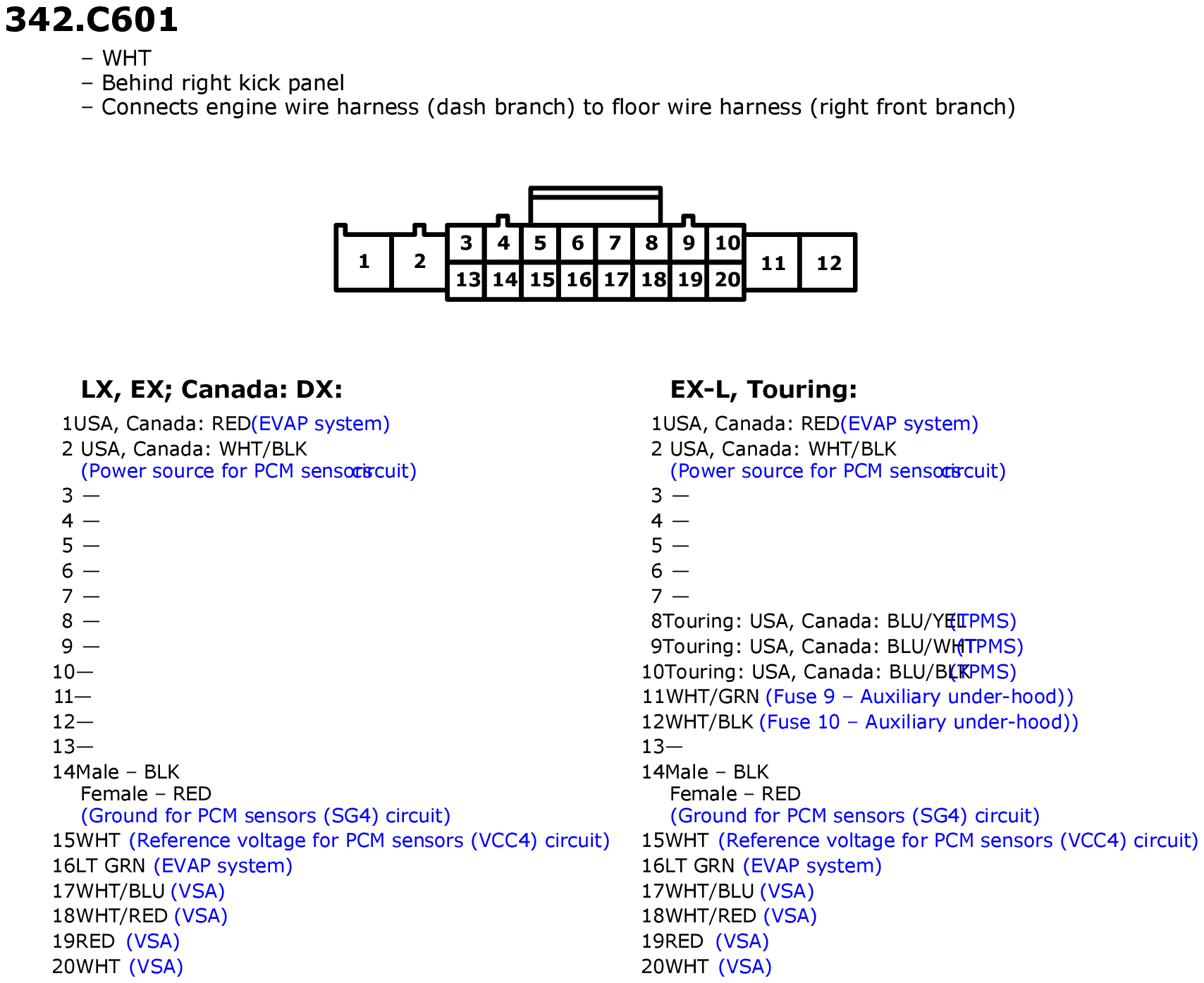

Fig 1: C601 Connector End View
GHHW5561Courtesy of AMERICAN HONDA MOTOR CO., INC.
