Driver Position Memory System (DPMS)
>>
Circuit Diagram - Power Mirror
>>
'08-10 Touring models
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
'08-10 Touring models

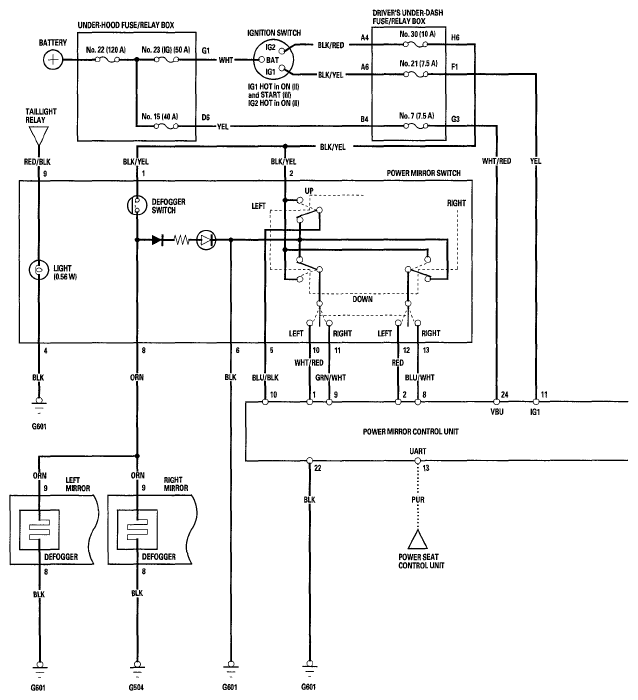

Fig 1: Power Mirror - Circuit Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

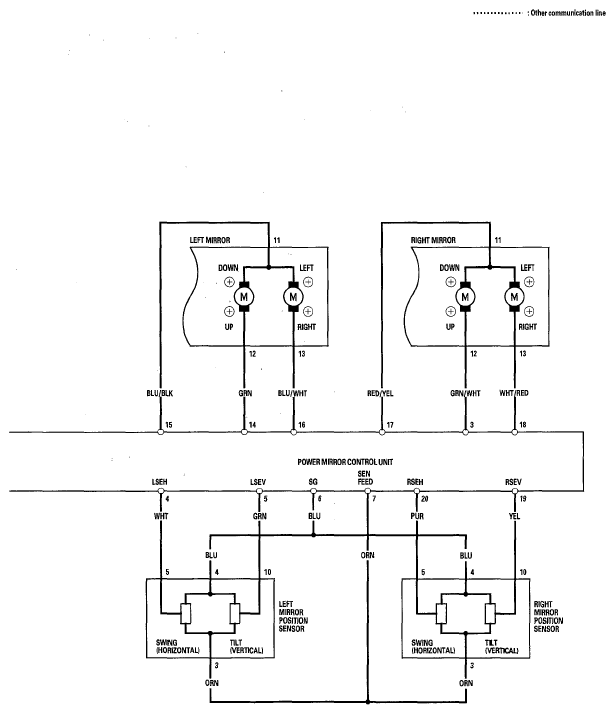

Fig 2: Power Mirror - Circuit Diagram (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
