Fuse Block

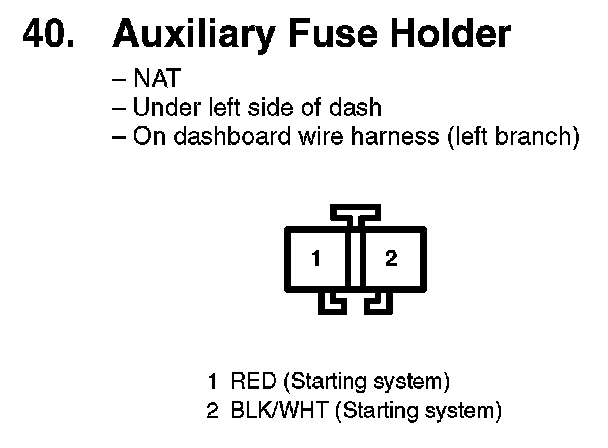

40. Auxiliary Fuse Holder:

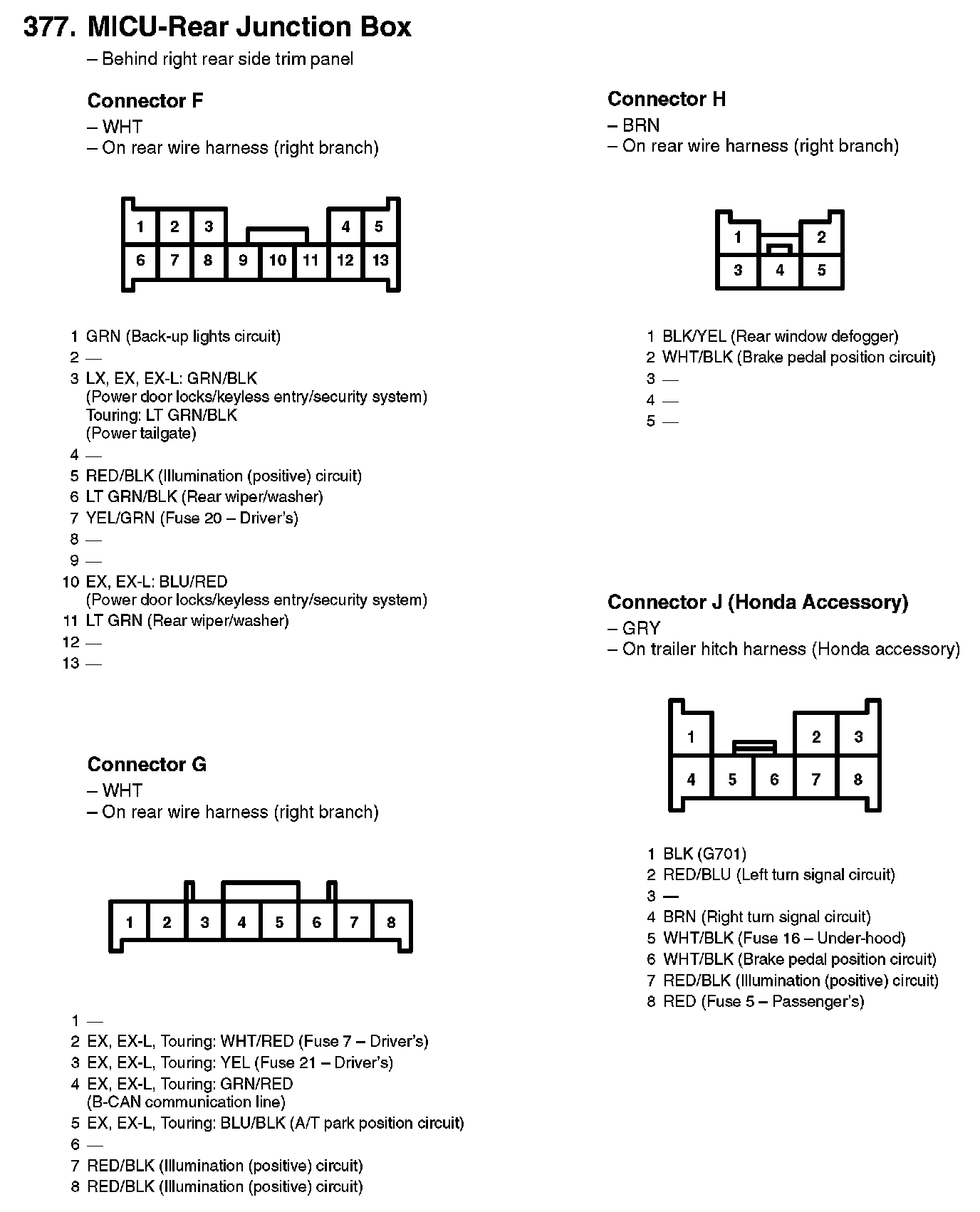

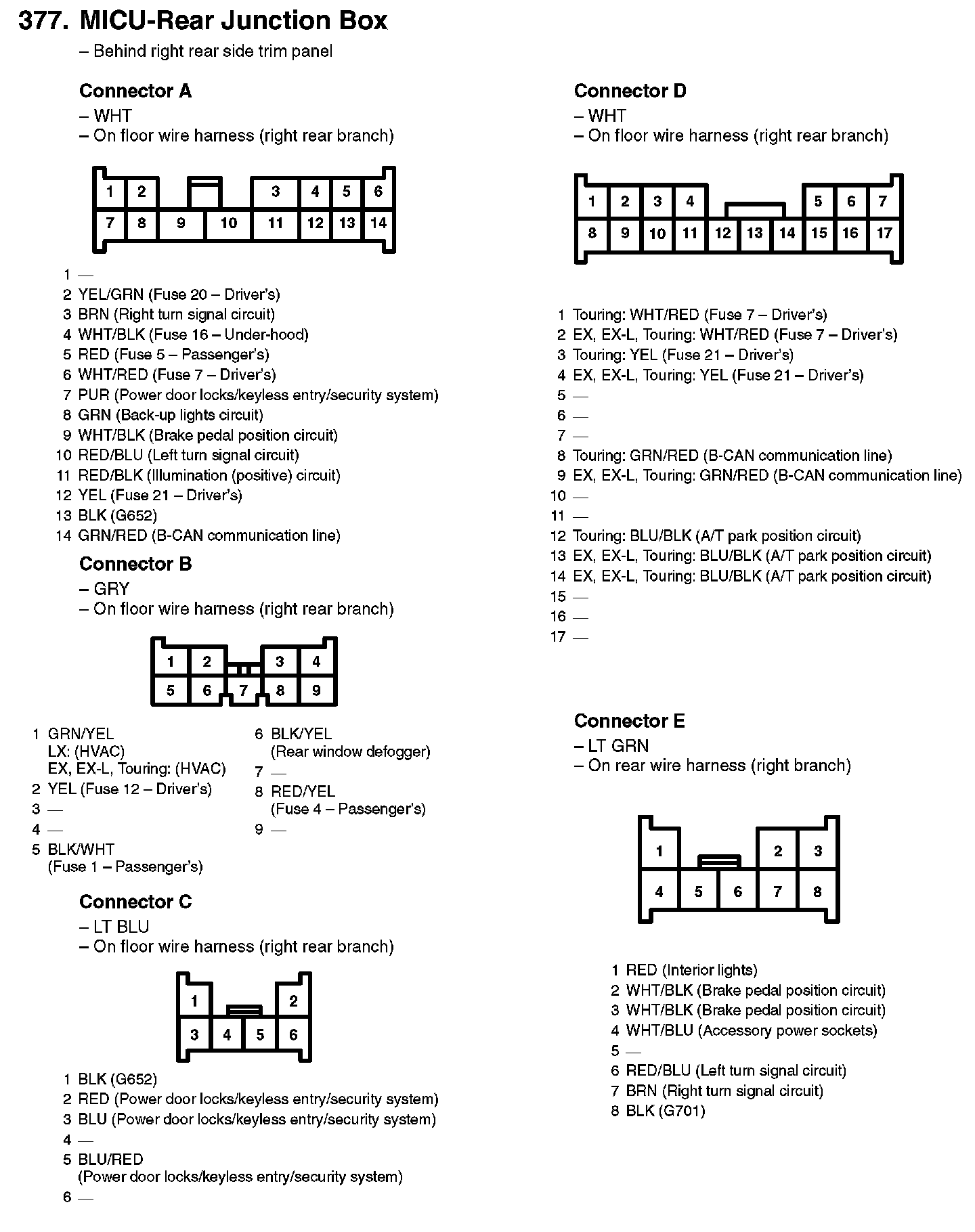

377. MICU-Rear Junction Box:



377. MICU-Rear Junction Box:

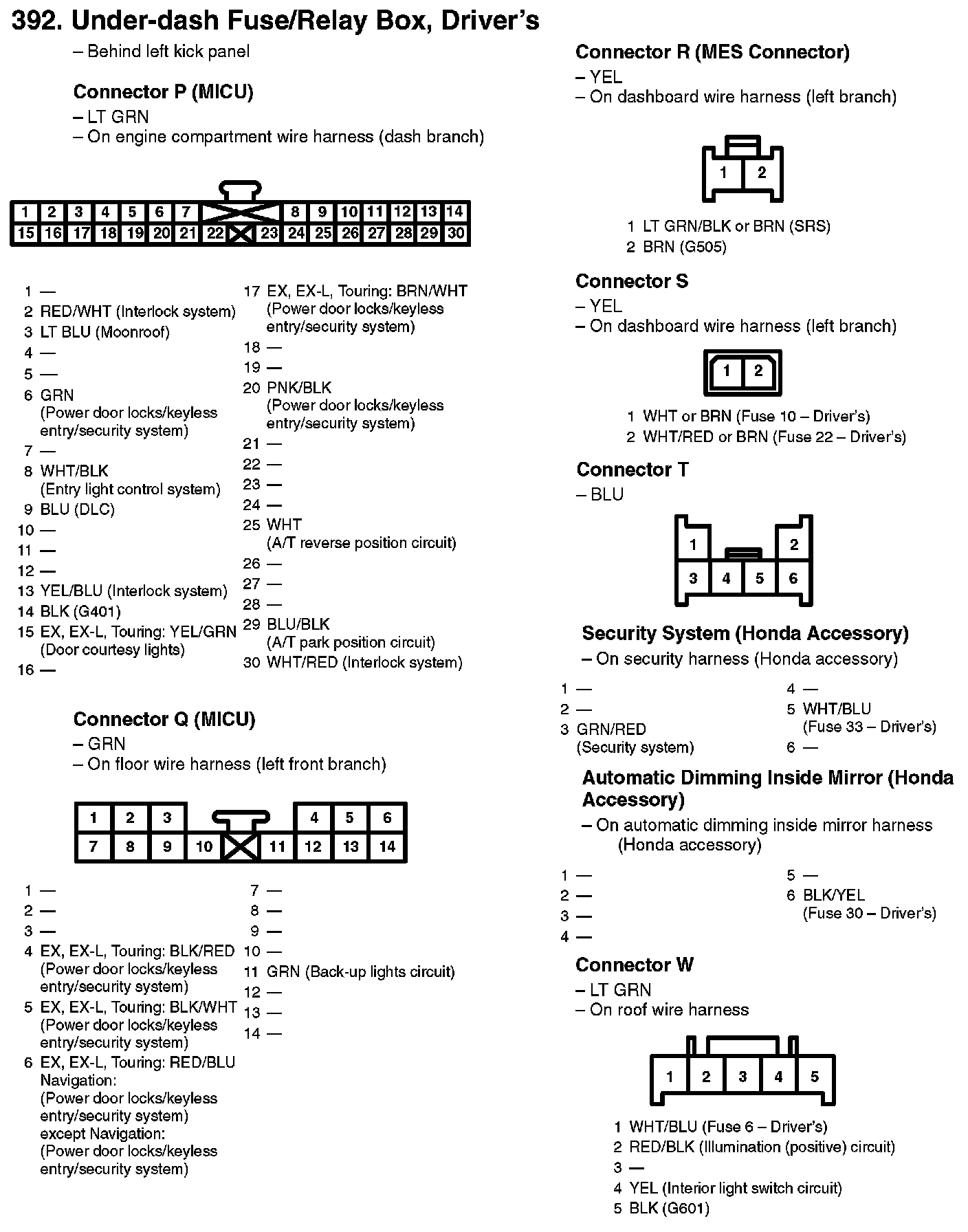

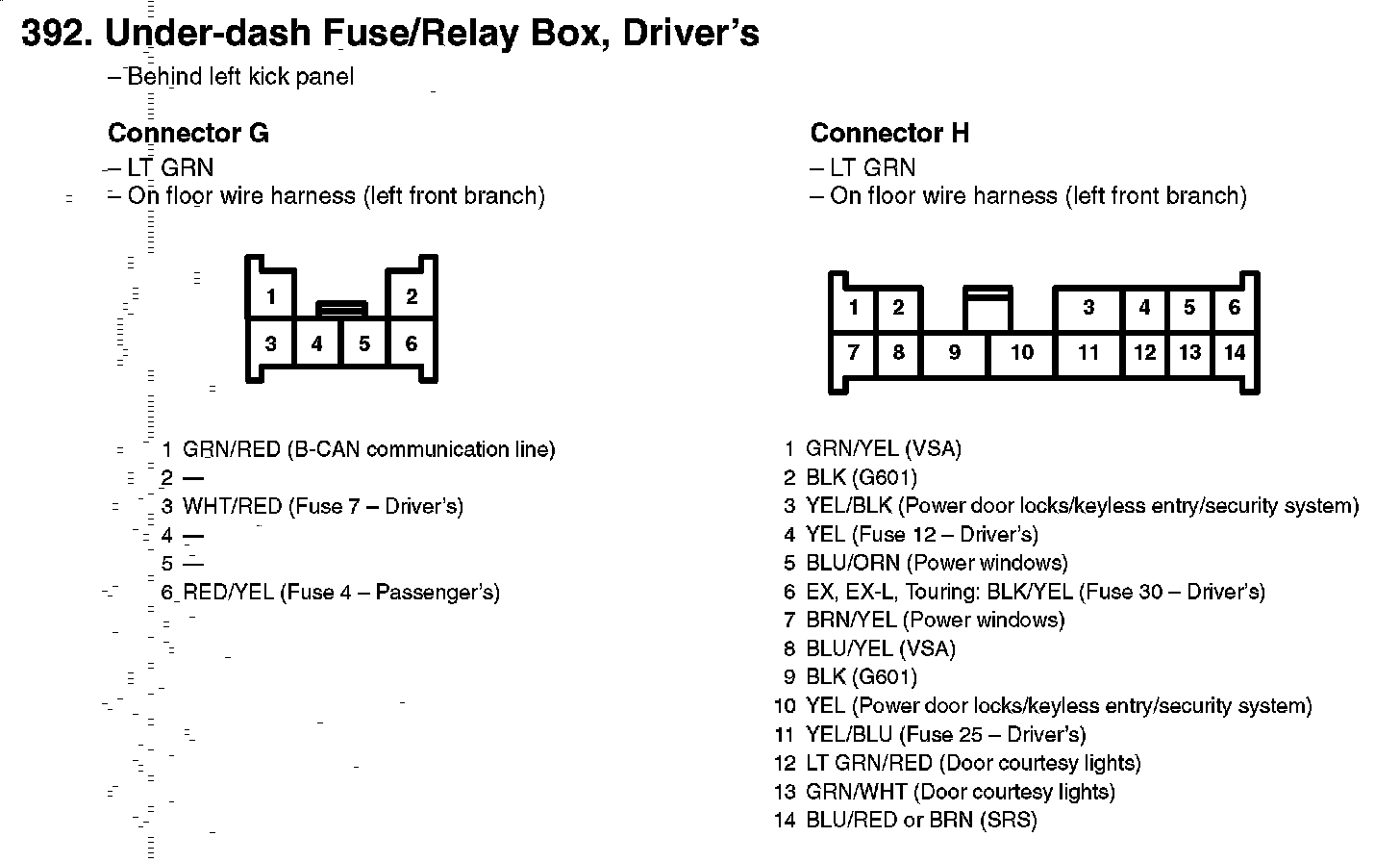

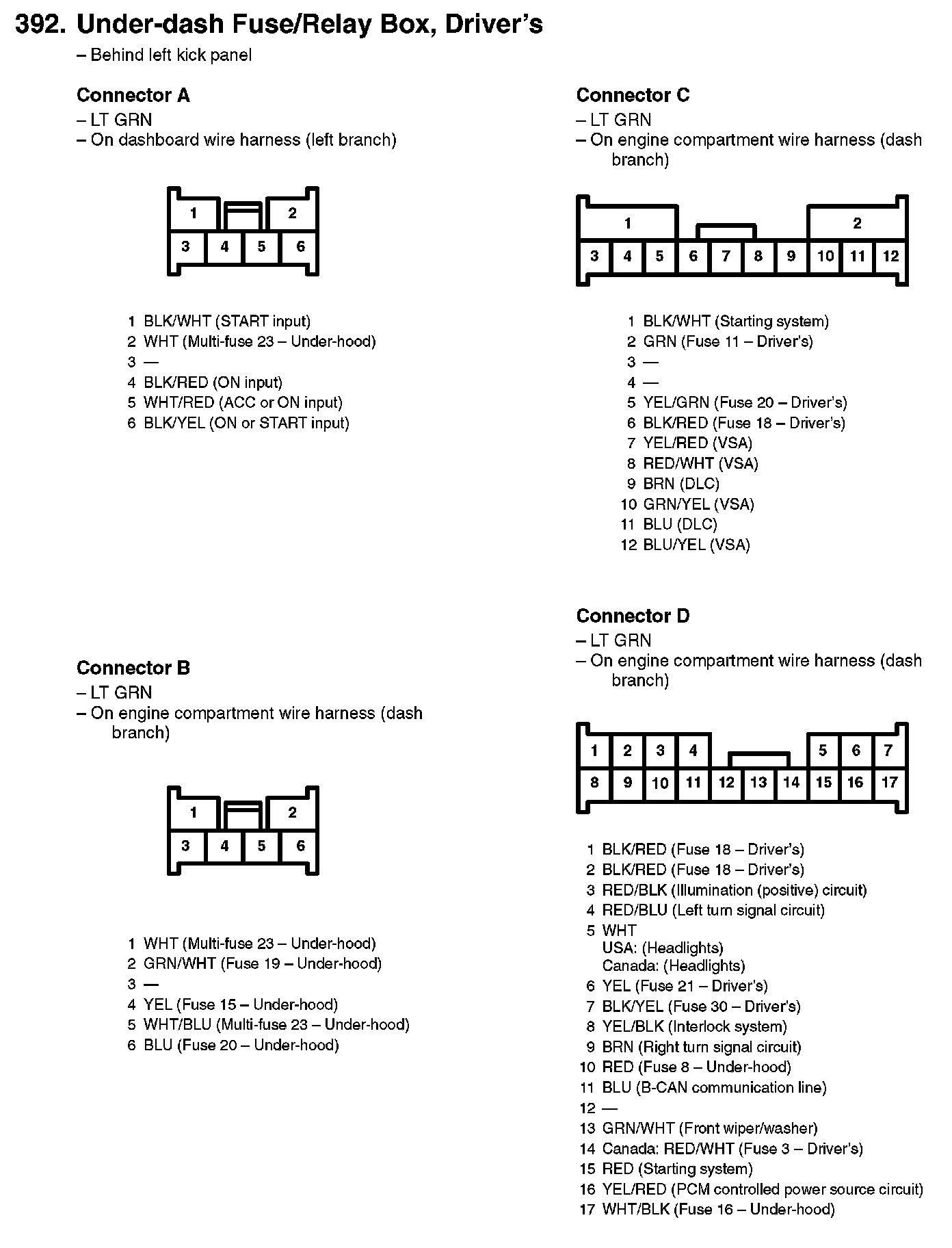

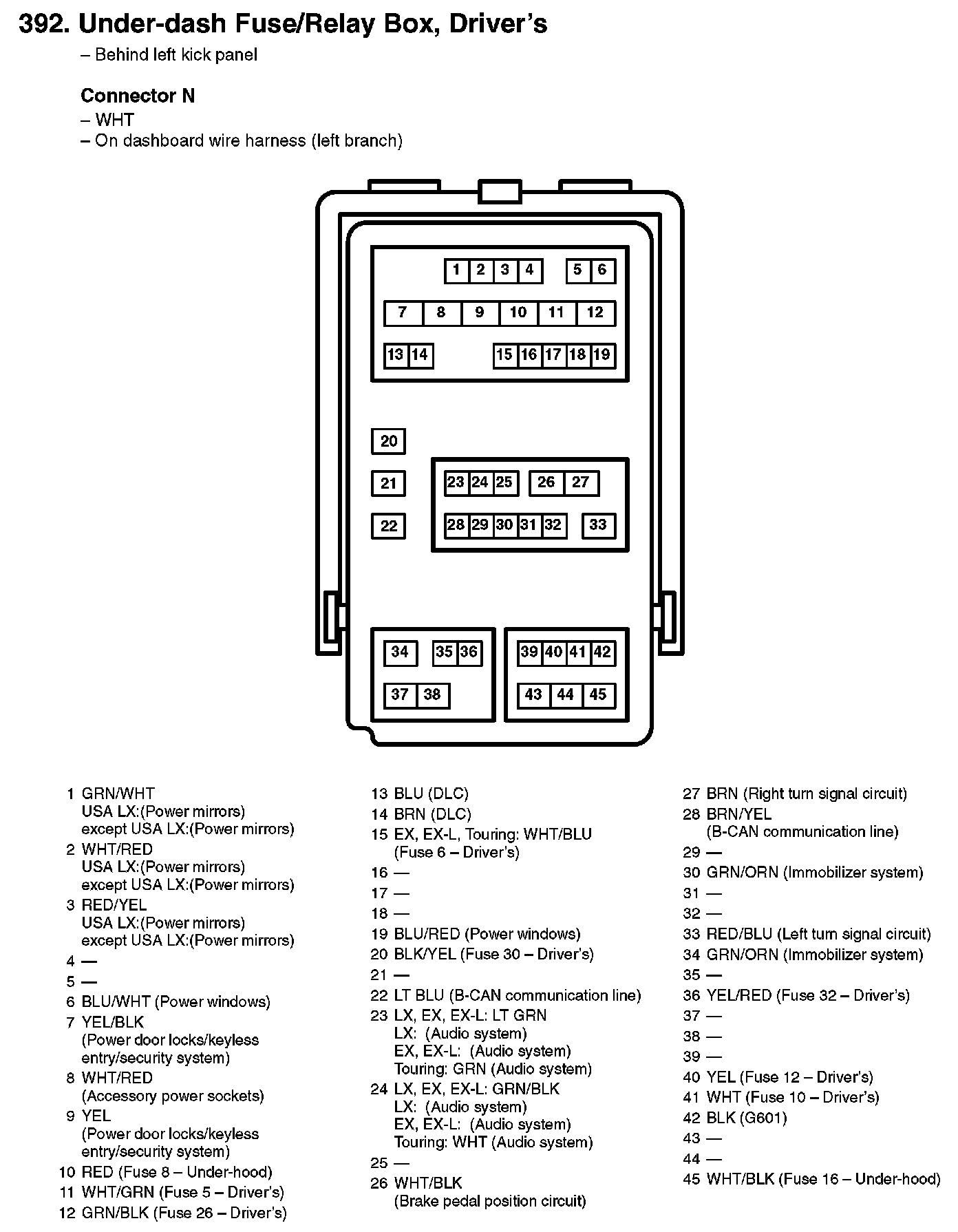

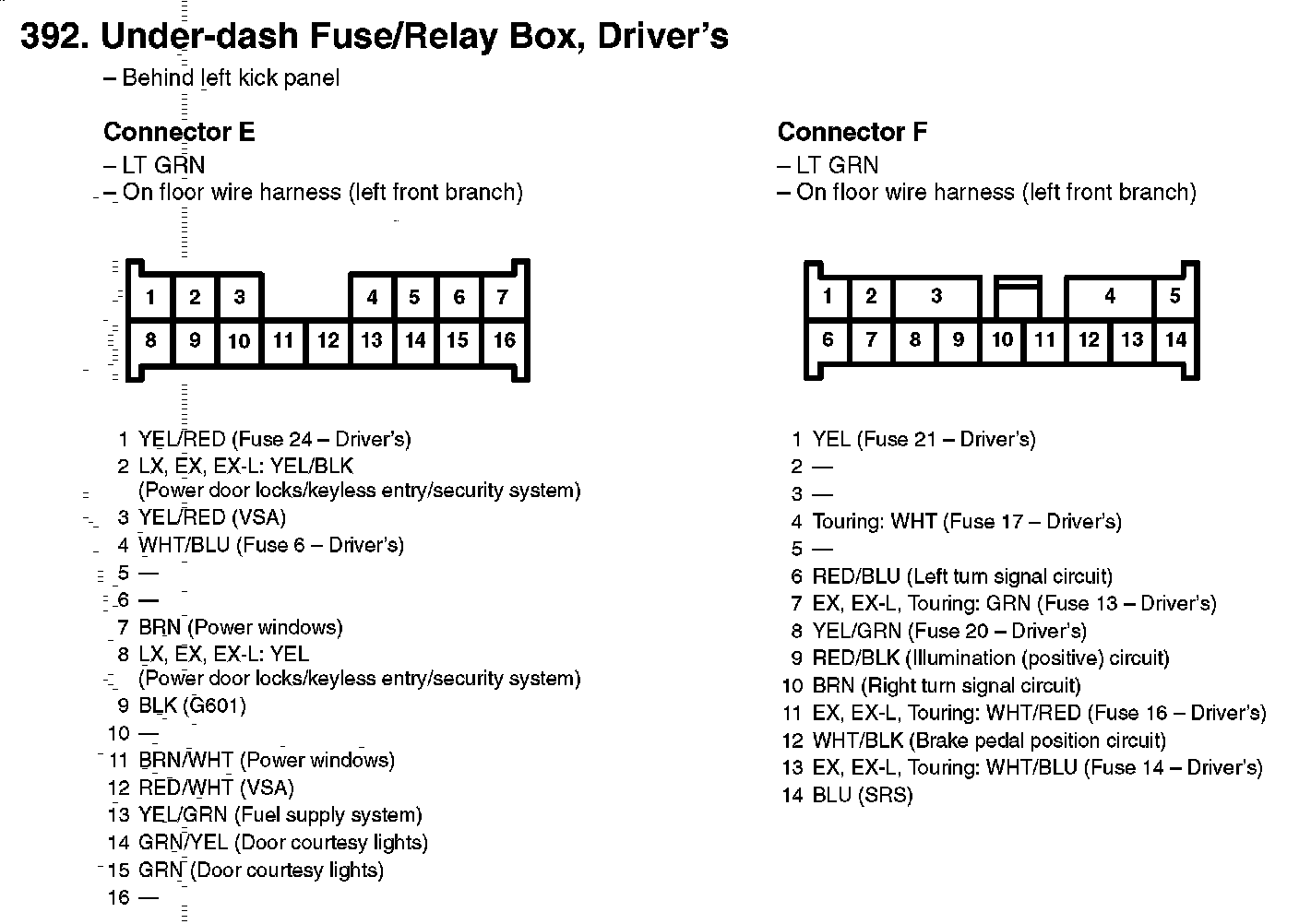

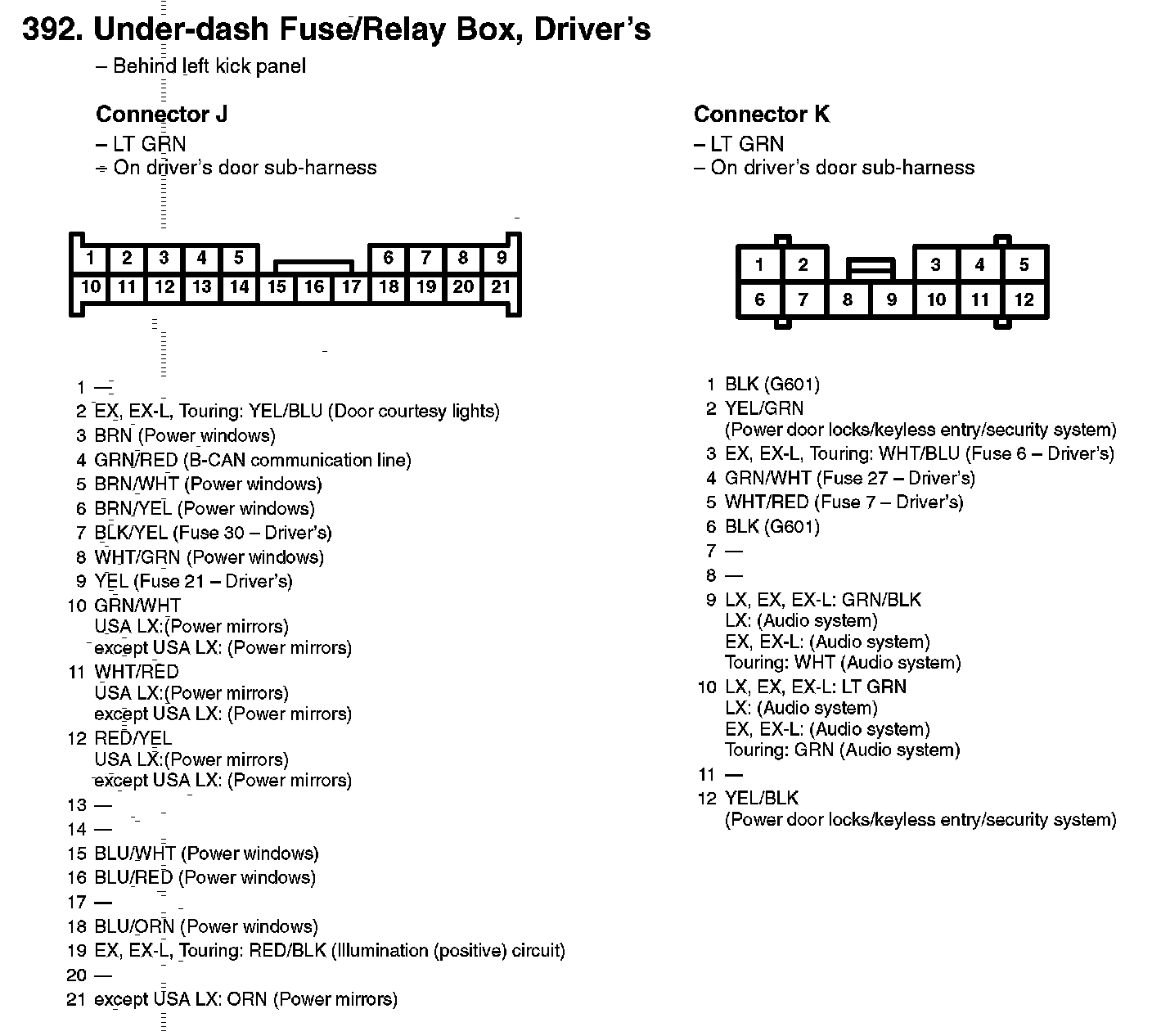

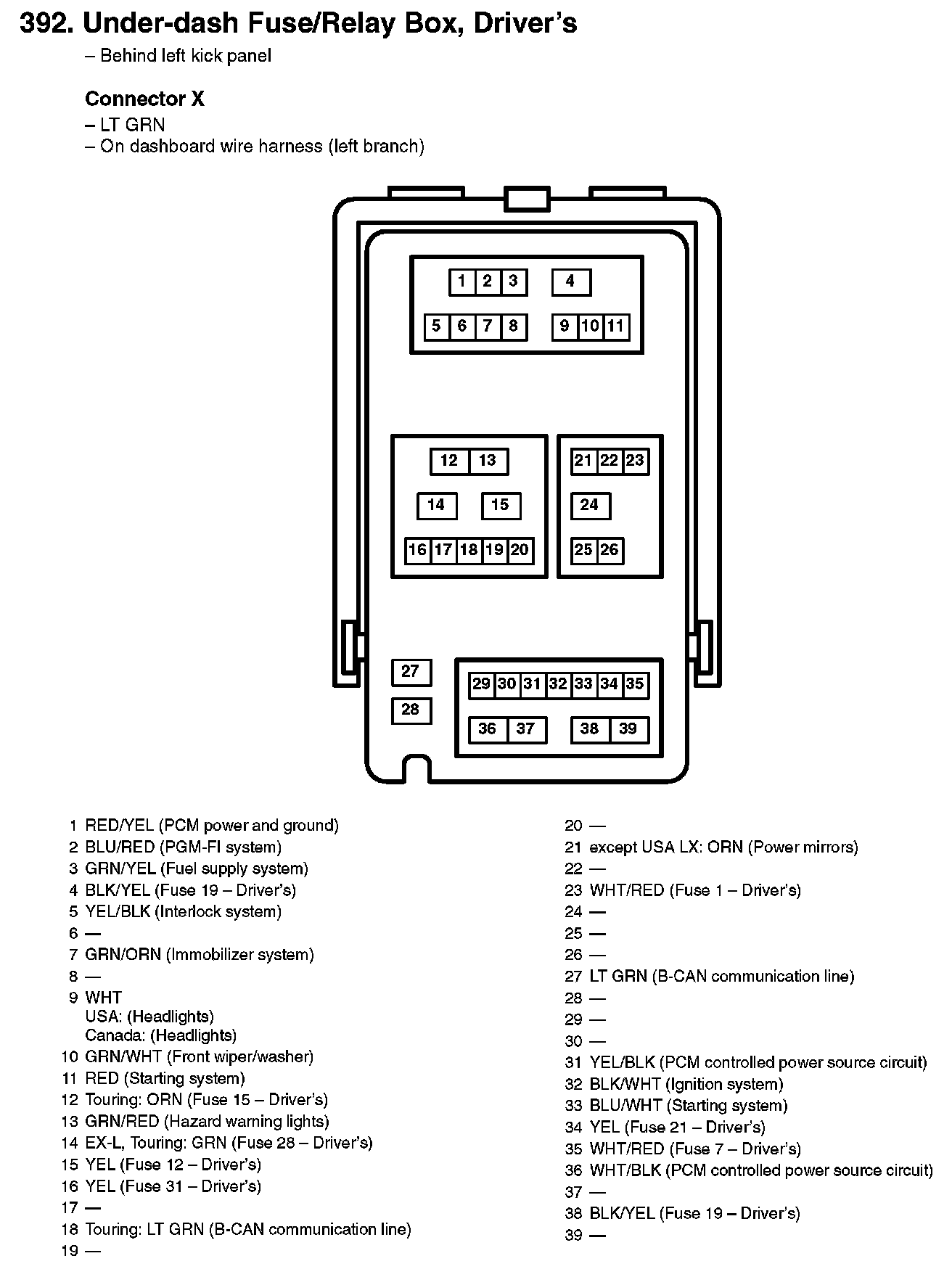

392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:



392. Under-dash Fuse/Relay Box, Driver's:

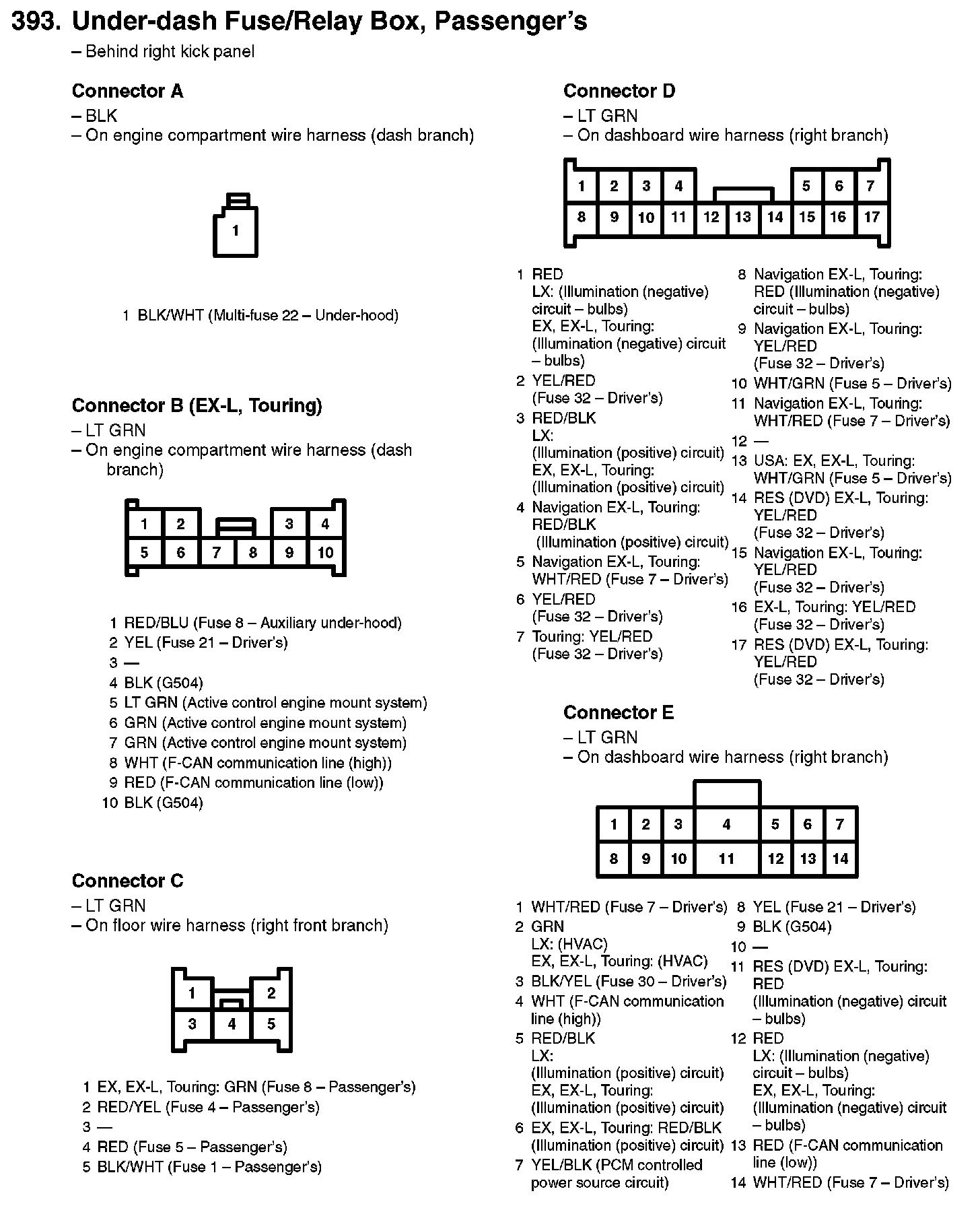

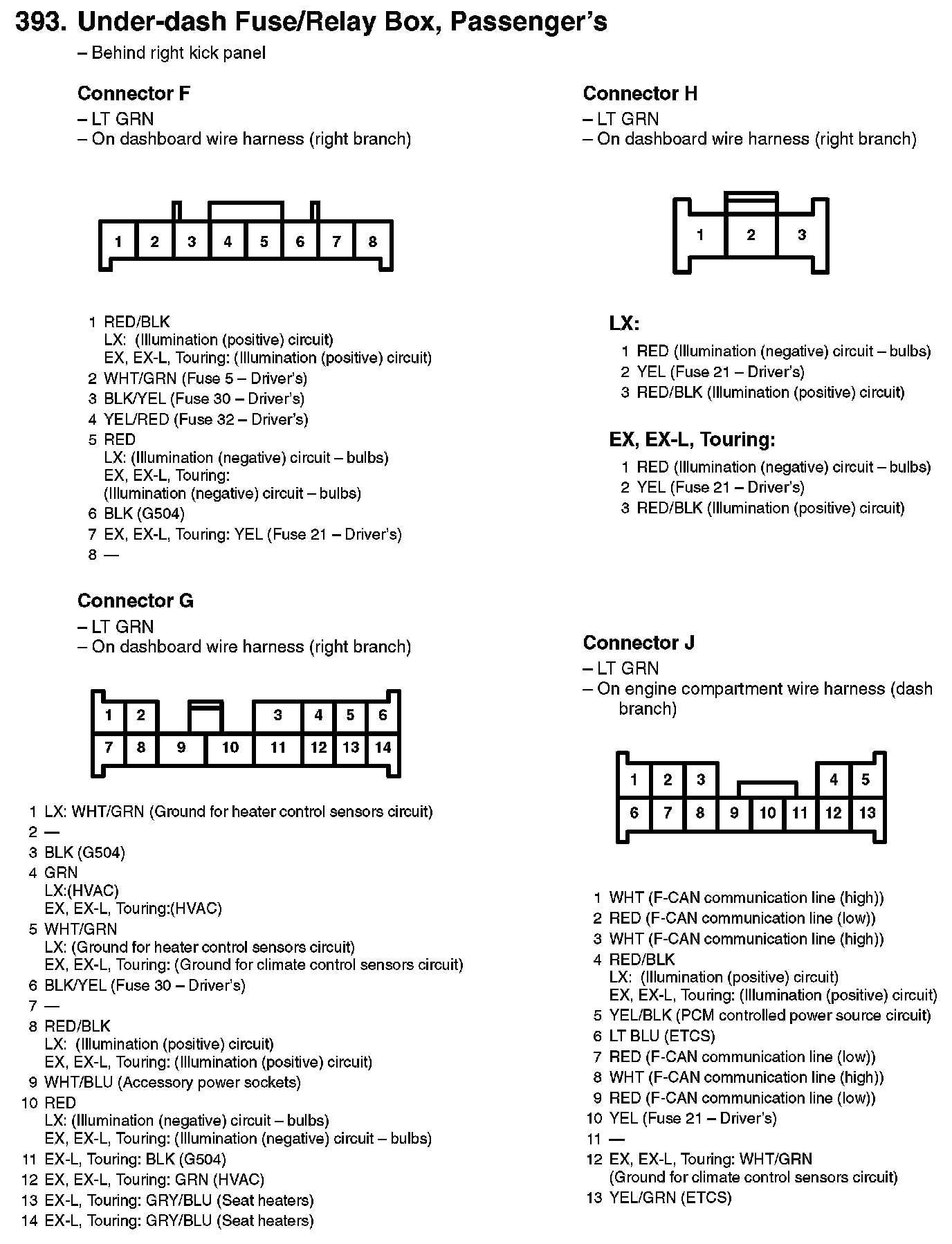

393. Under-dash Fuse/Relay Box, Passenger's:



393. Under-dash Fuse/Relay Box, Passenger's:

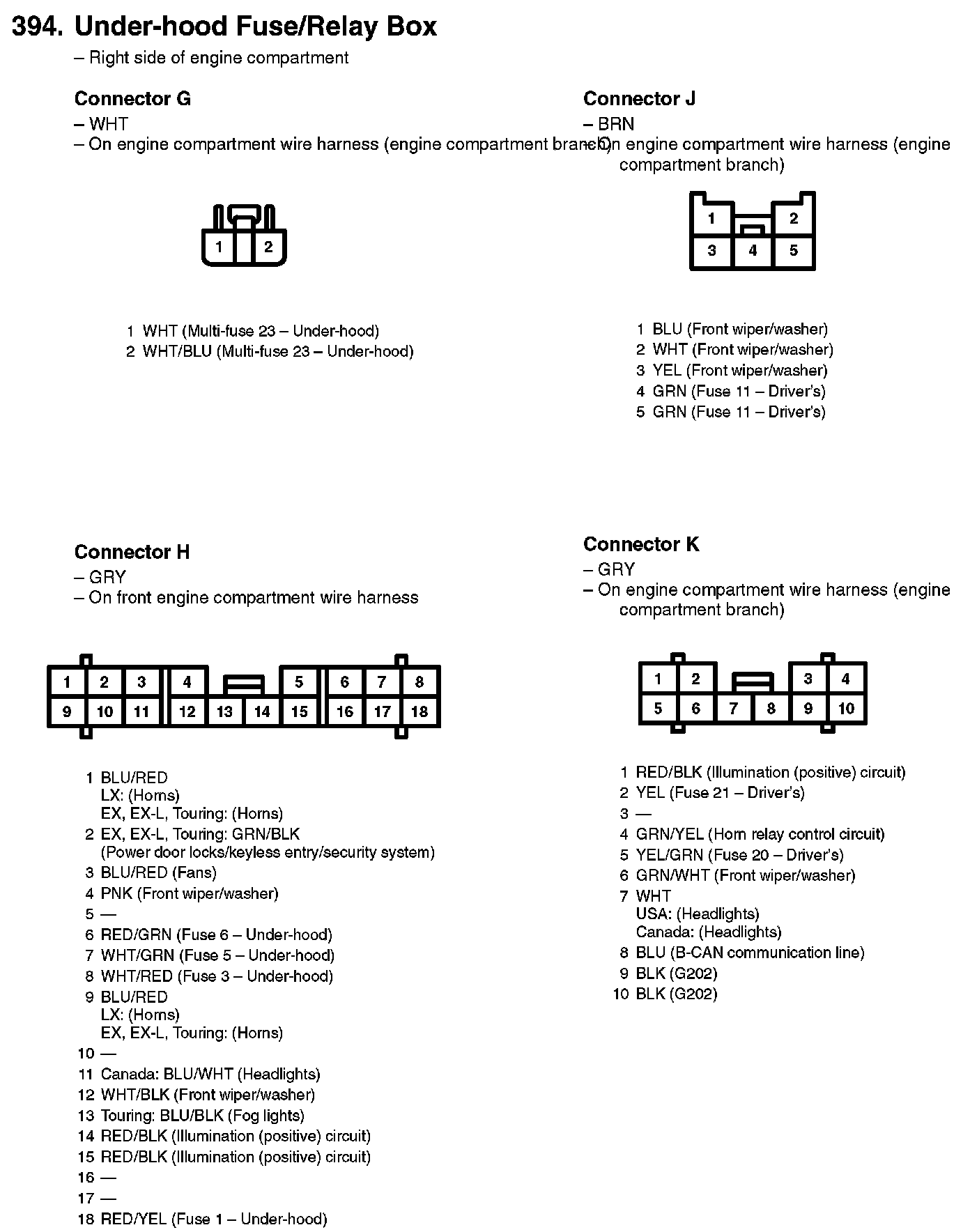

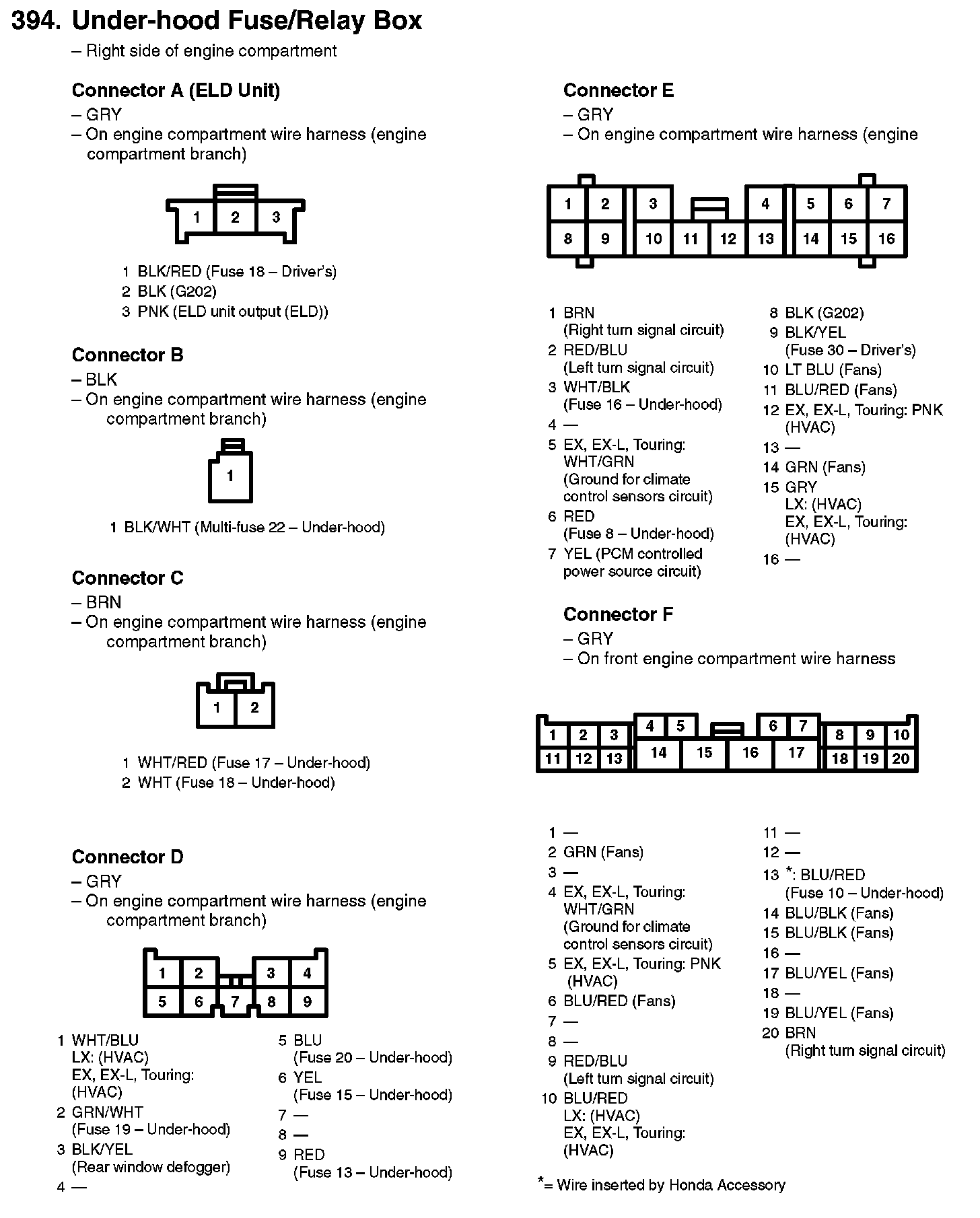

394. Under-hood Fuse/Relay Box:



394. Under-hood Fuse/Relay Box:
