Impact Sensor

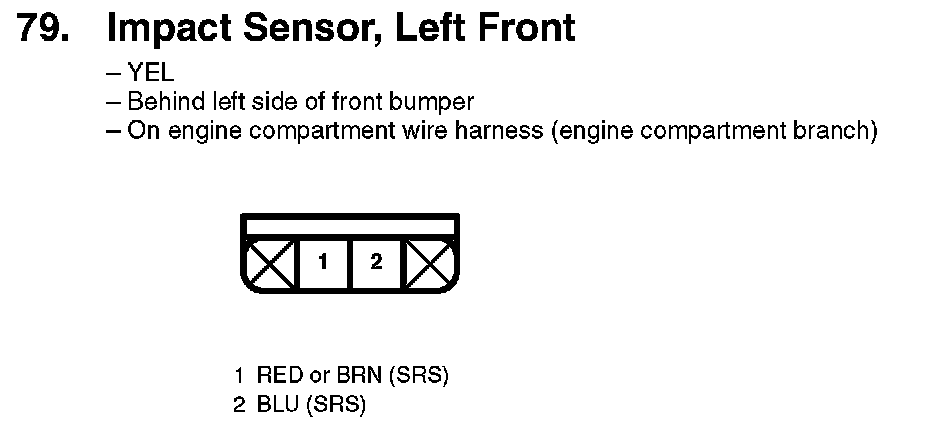

79. Impact Sensor, Left Front:

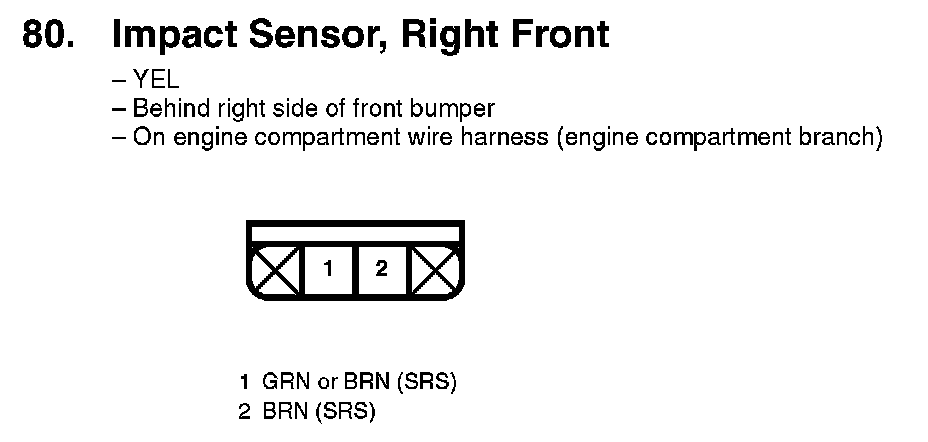

80. Impact Sensor, Right Front:

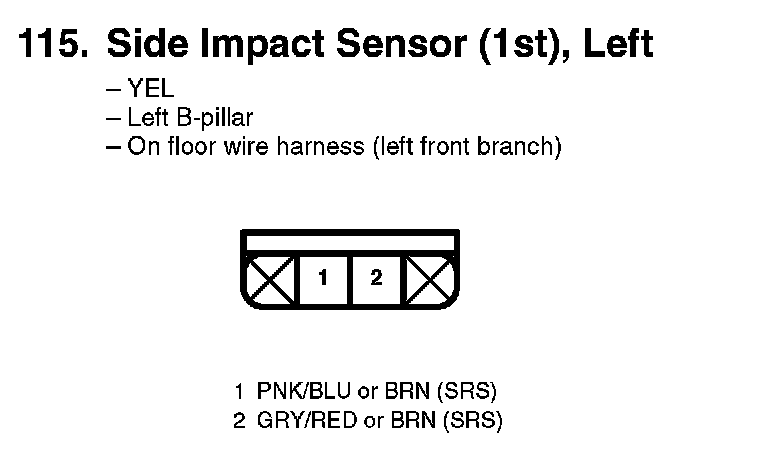

115. Side Impact Sensor (1st), Left:

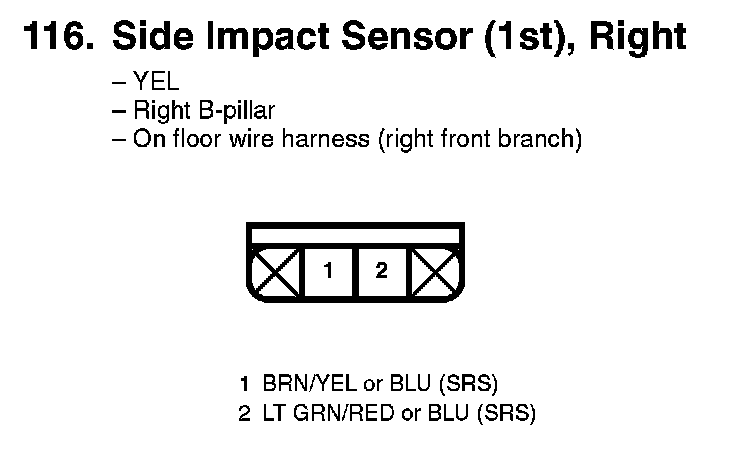

116. Side Impact Sensor (1st), Right:

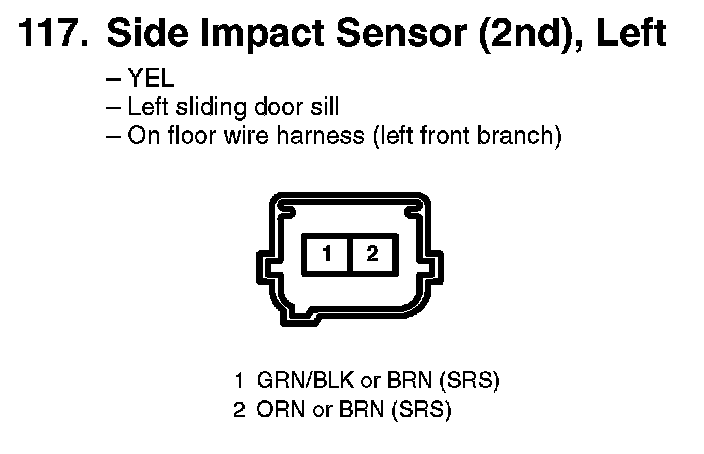

117. Side Impact Sensor (2nd), Left:

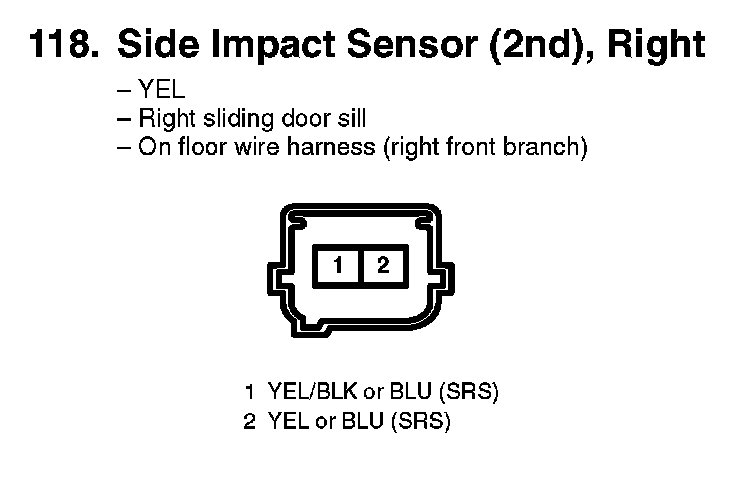

118. Side Impact Sensor (2nd), Right:

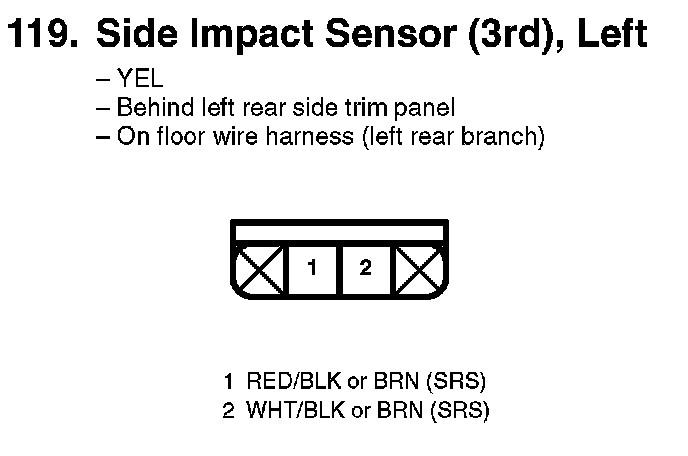

119. Side Impact Sensor (3rd), Left:

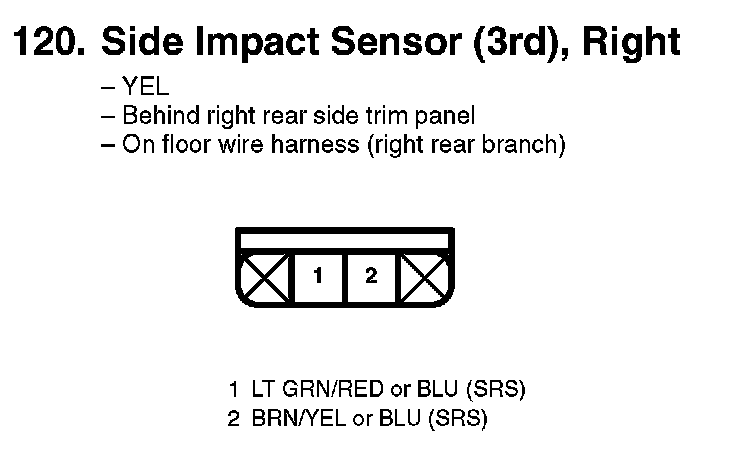

120. Side Impact Sensor (3rd), Right:
