Map Light

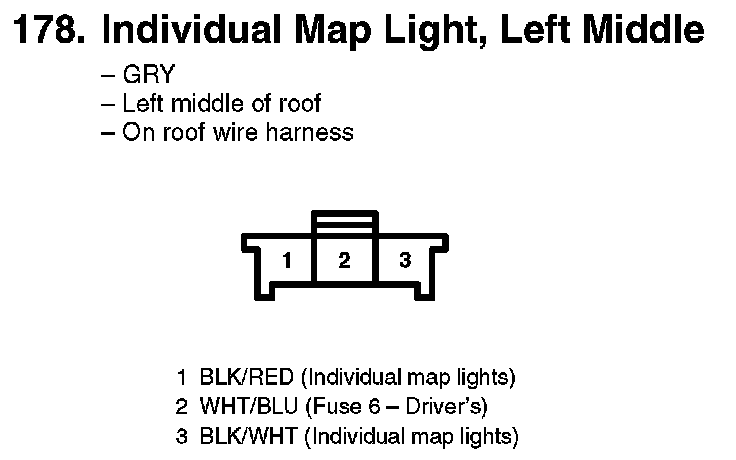

178. Individual Map Light, Left Middle:

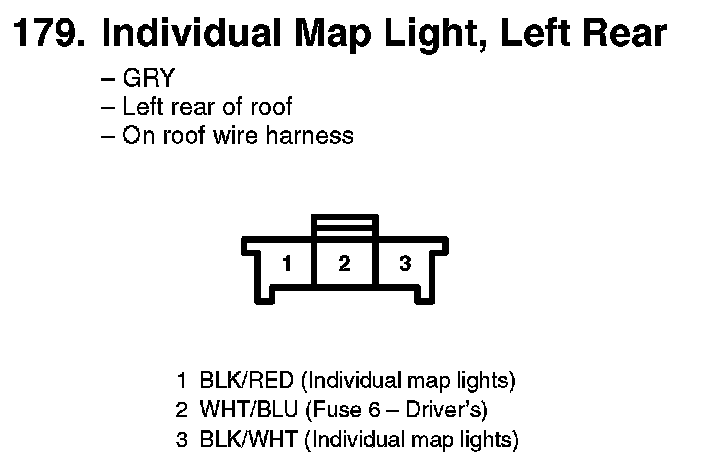

179. Individual Map Light, Left Rear:

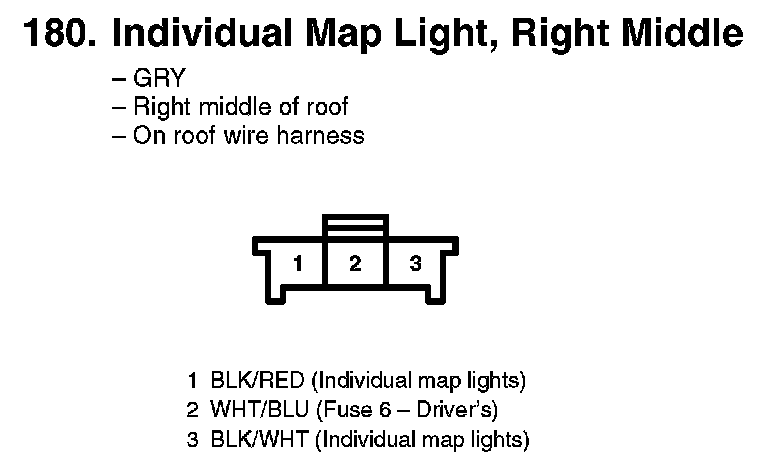

180. Individual Map Light, Right Middle:

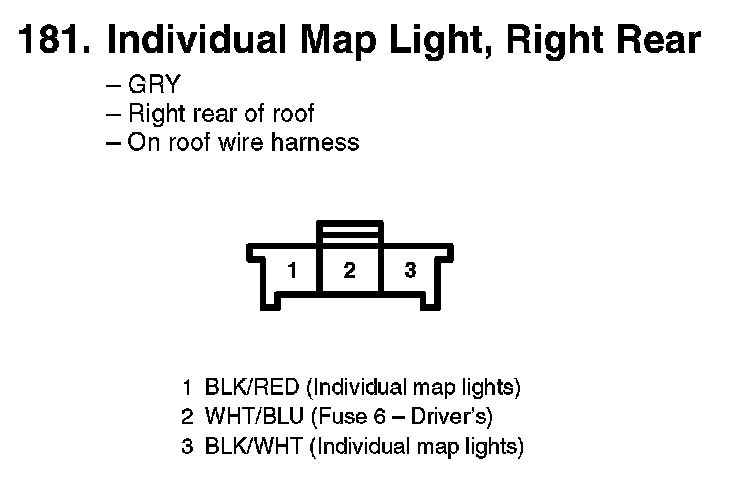

181. Individual Map Light, Right Rear:

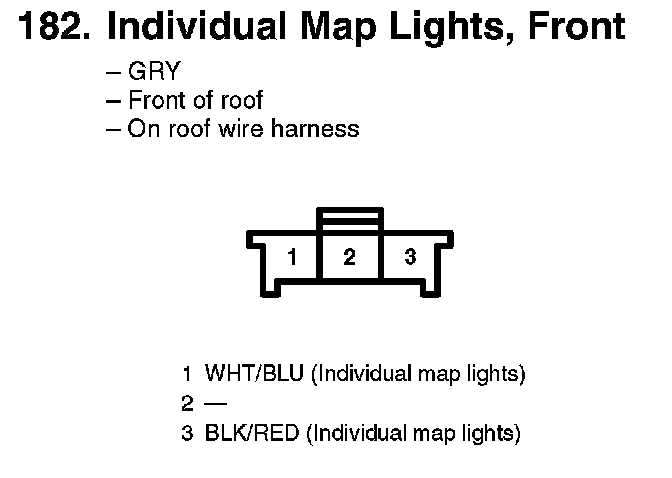

182. Individual Map Lights, Front:
