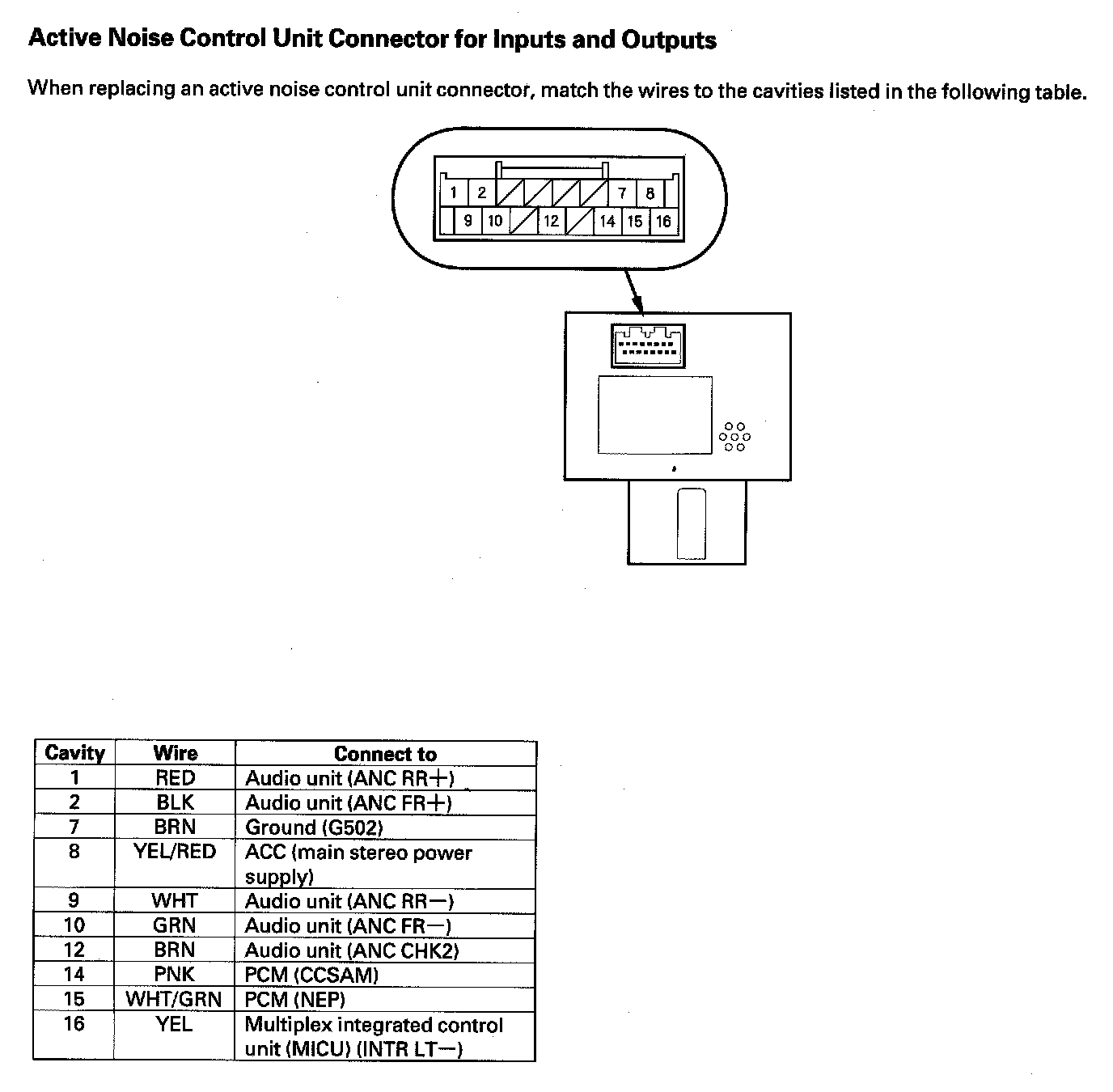

Active Noise Control Unit Connector For Inputs and Outputs
Active Noise Control Unit Connector For Inputs And Outputs:
