Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

Without Power Adjustable Pedals

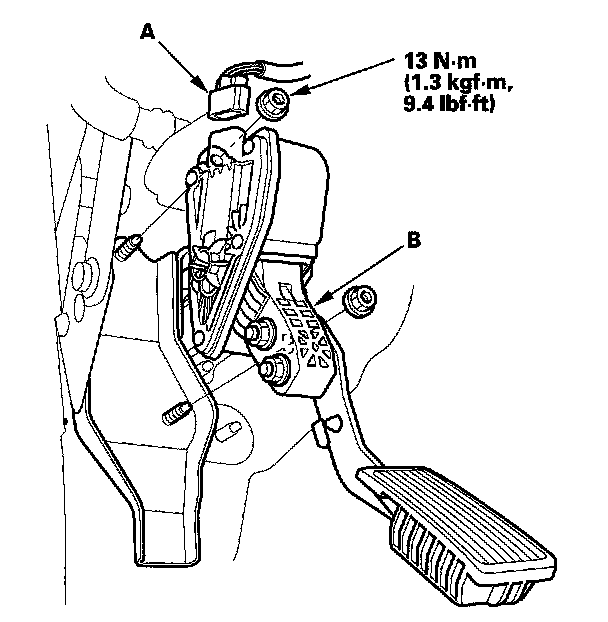

1. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).
2. Remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.

3. Install the parts in the reverse order of removal.

With Power Adjustable Pedals

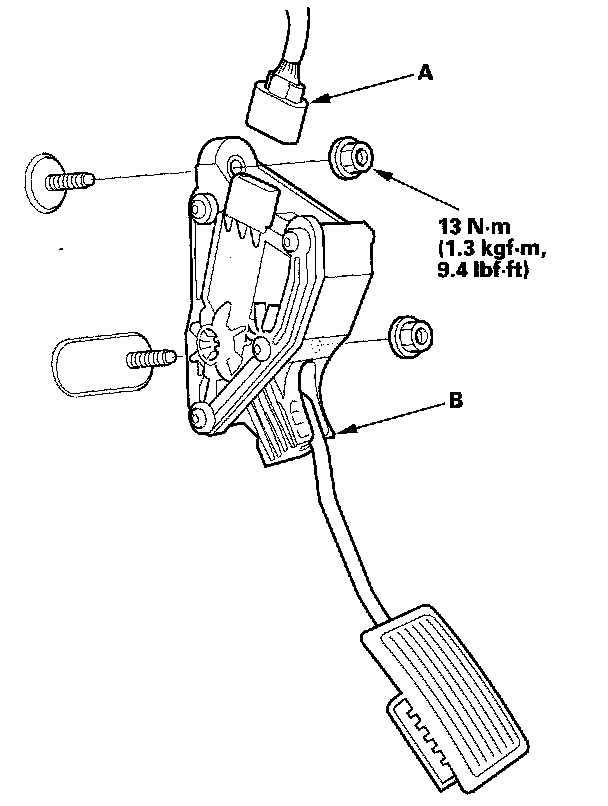

1. Disconnect the accelerator pedal position (APP) sensor 6P connector (A).
2. Remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.

3. Install the parts in the reverse order of removal.
4. Adjust the brake pedal height.
