EOP Sensor

EOP Sensor Removal/Installation

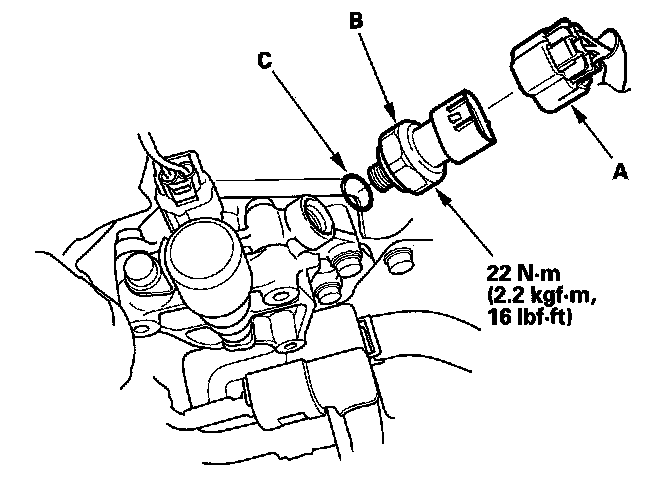

1. Remove the engine cover.




2. Remove the EOP sensor 3P connector (A).
3. Remove the EOP sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring.
