Rocker Arm Oil Pressure Switch

Rocker Arm Oil Pressure Switch Removal/Installation

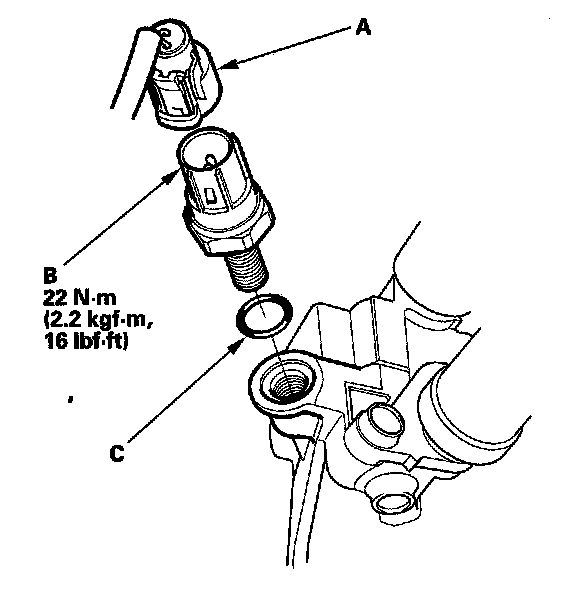

1. Disconnect the rocker arm oil pressure switch connector (A), then remove the rocker arm oil pressure switch (B).
2. Install the parts in the reverse order of removal with a new O-ring (C).
