Component Locations

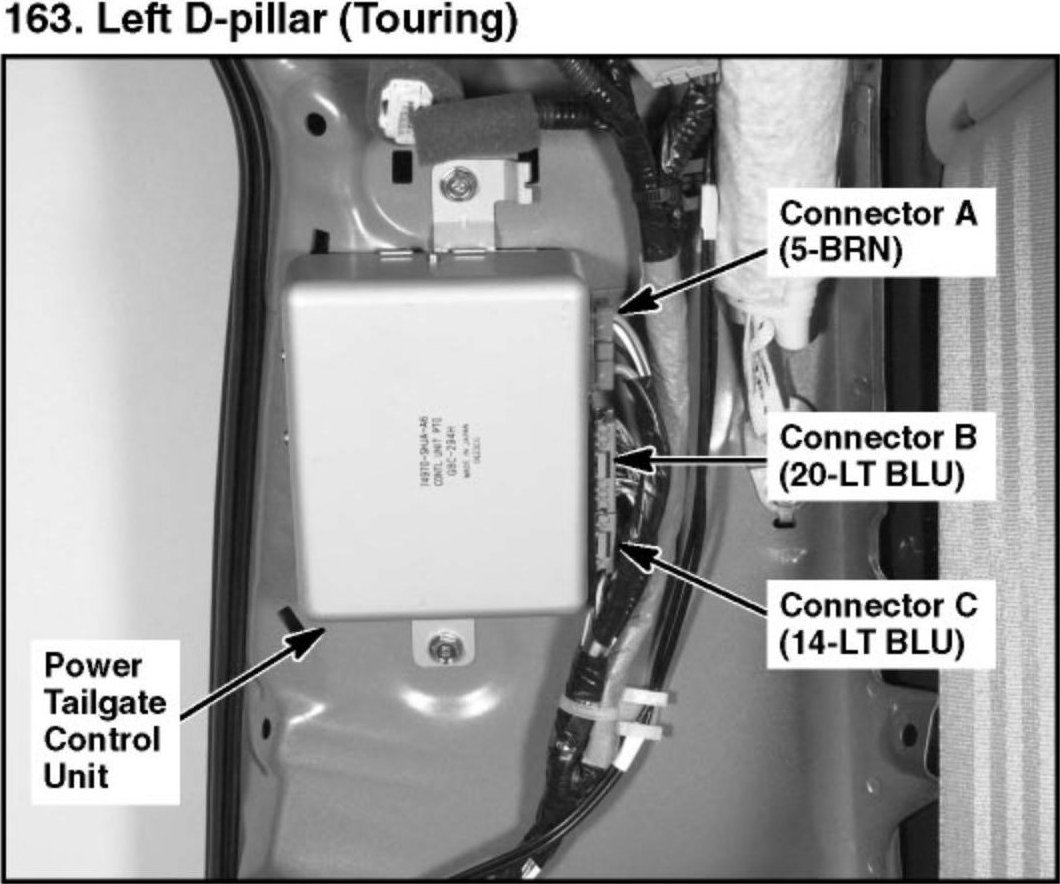

163. Left D-pillar (Touring):

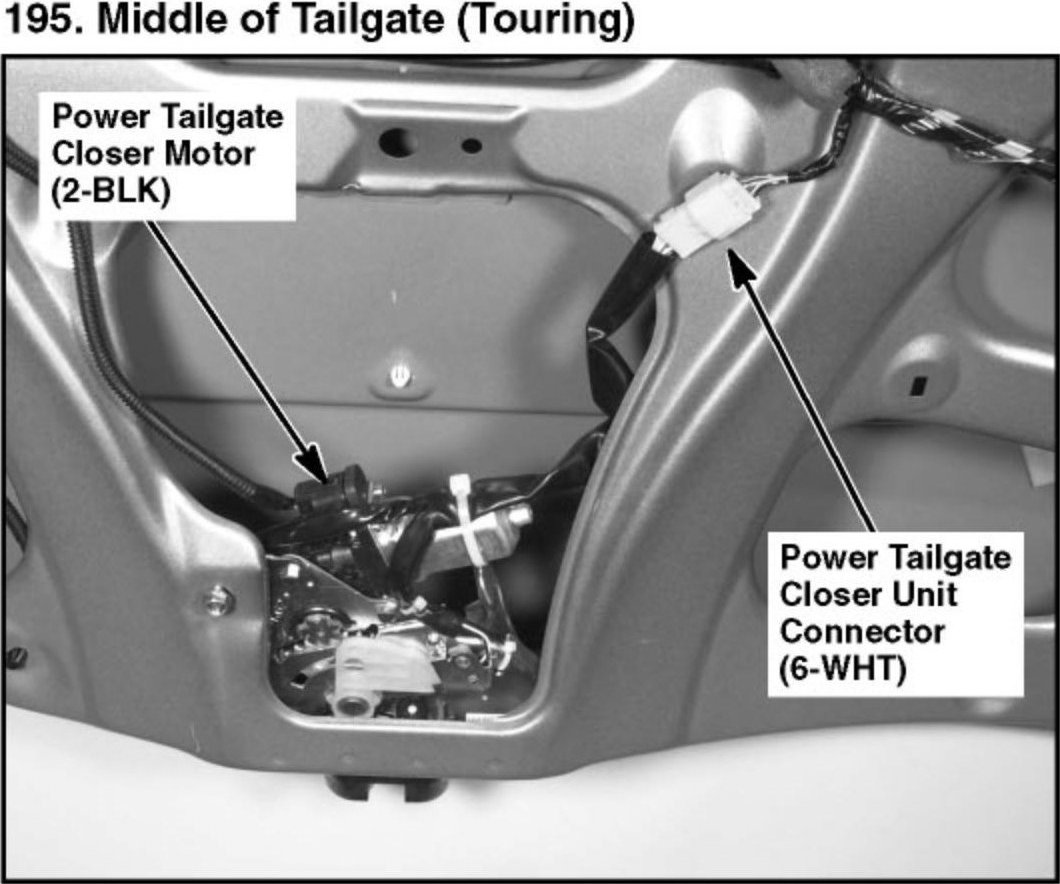

195. Middle of Tailgate (Touring):

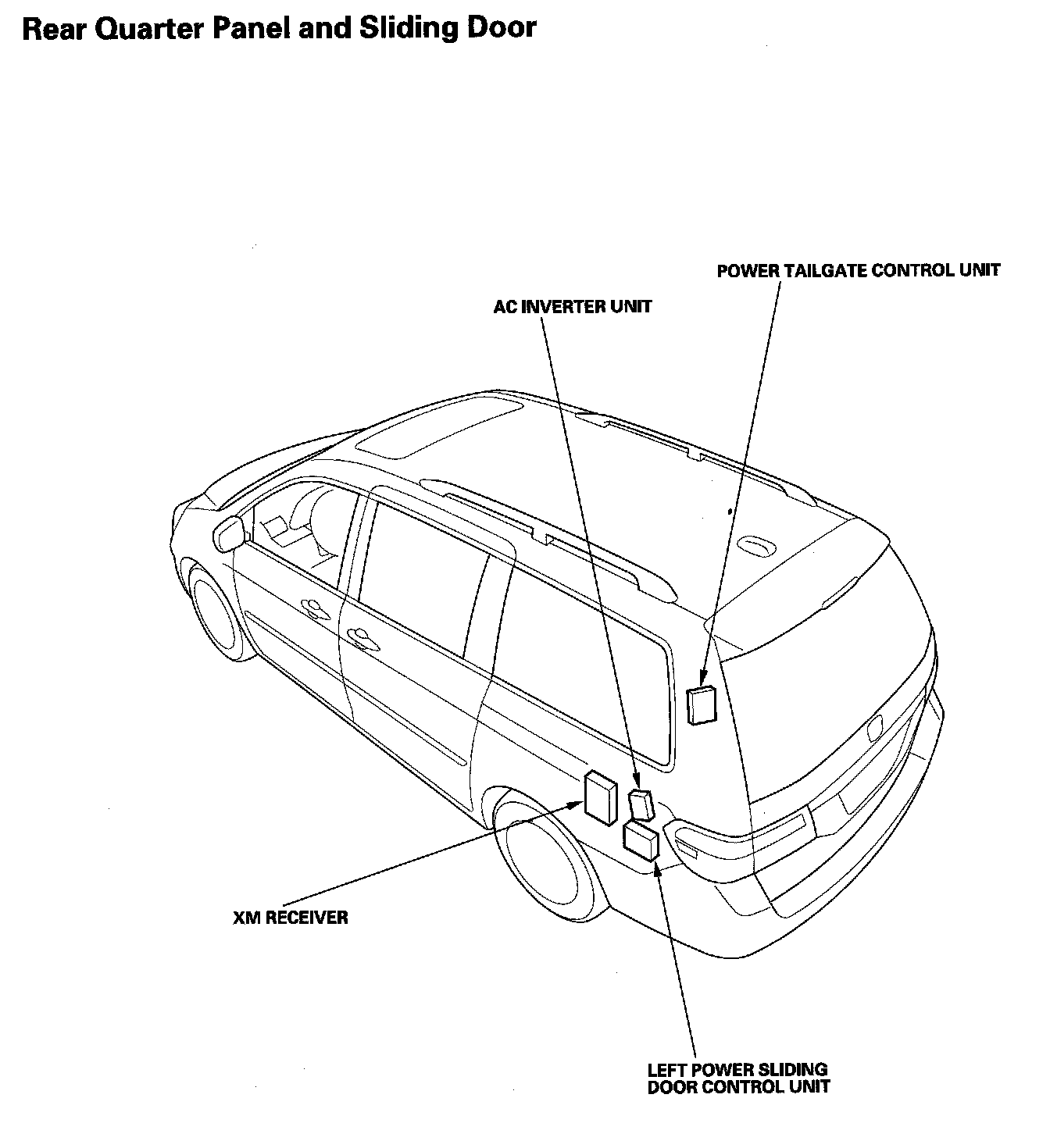

Relay And Control Unit Locations Rear Quarter Panel And Sliding Door:

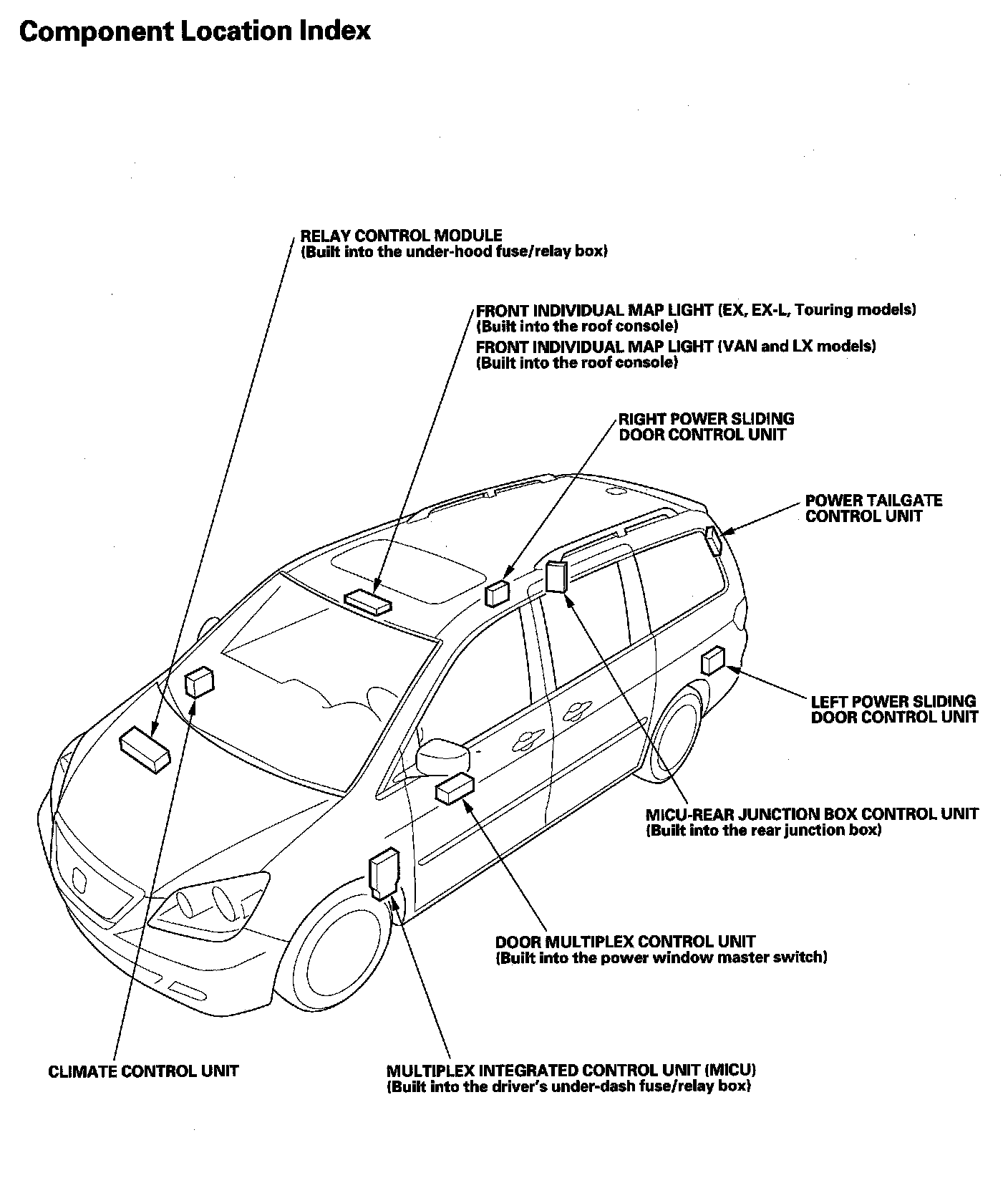

Multiplex Integrated Control System Component Location Index:
