Engine Mount Control Unit: Locations

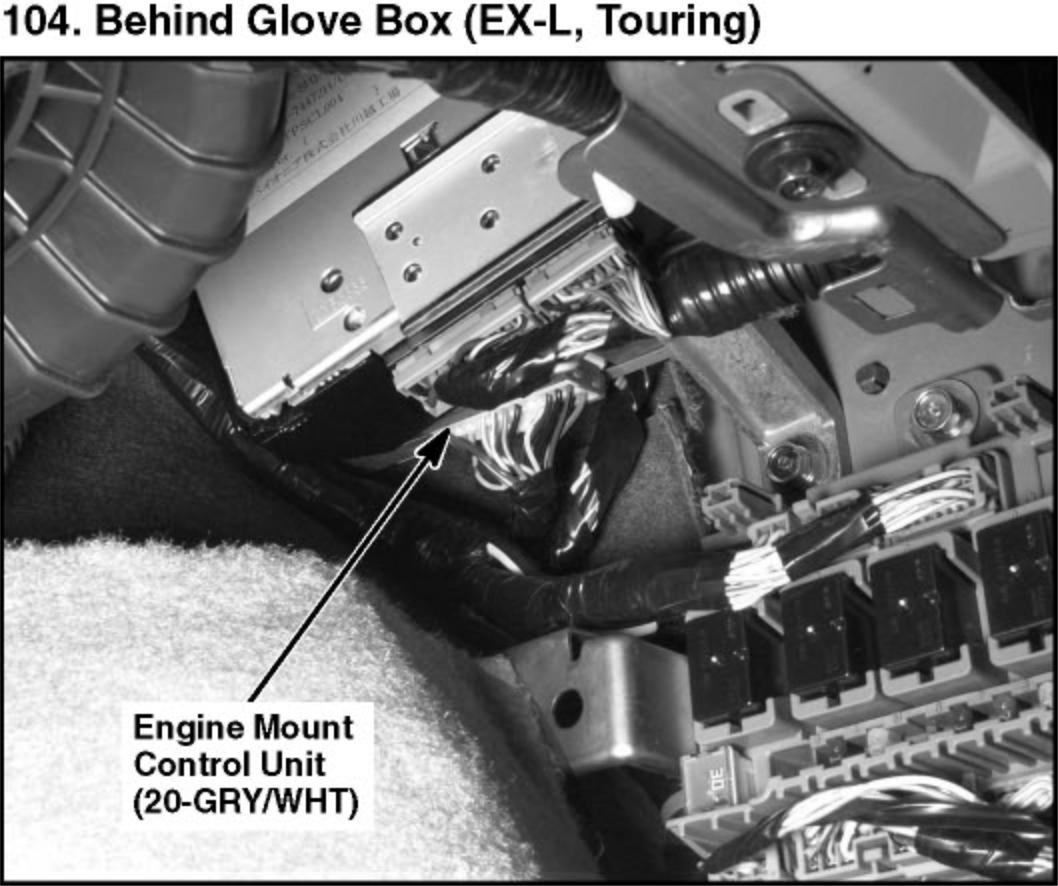

104. Behind Glove Box (EX-L, Touring):



Active Control Engine Mount (ACM) System Component Location Index:

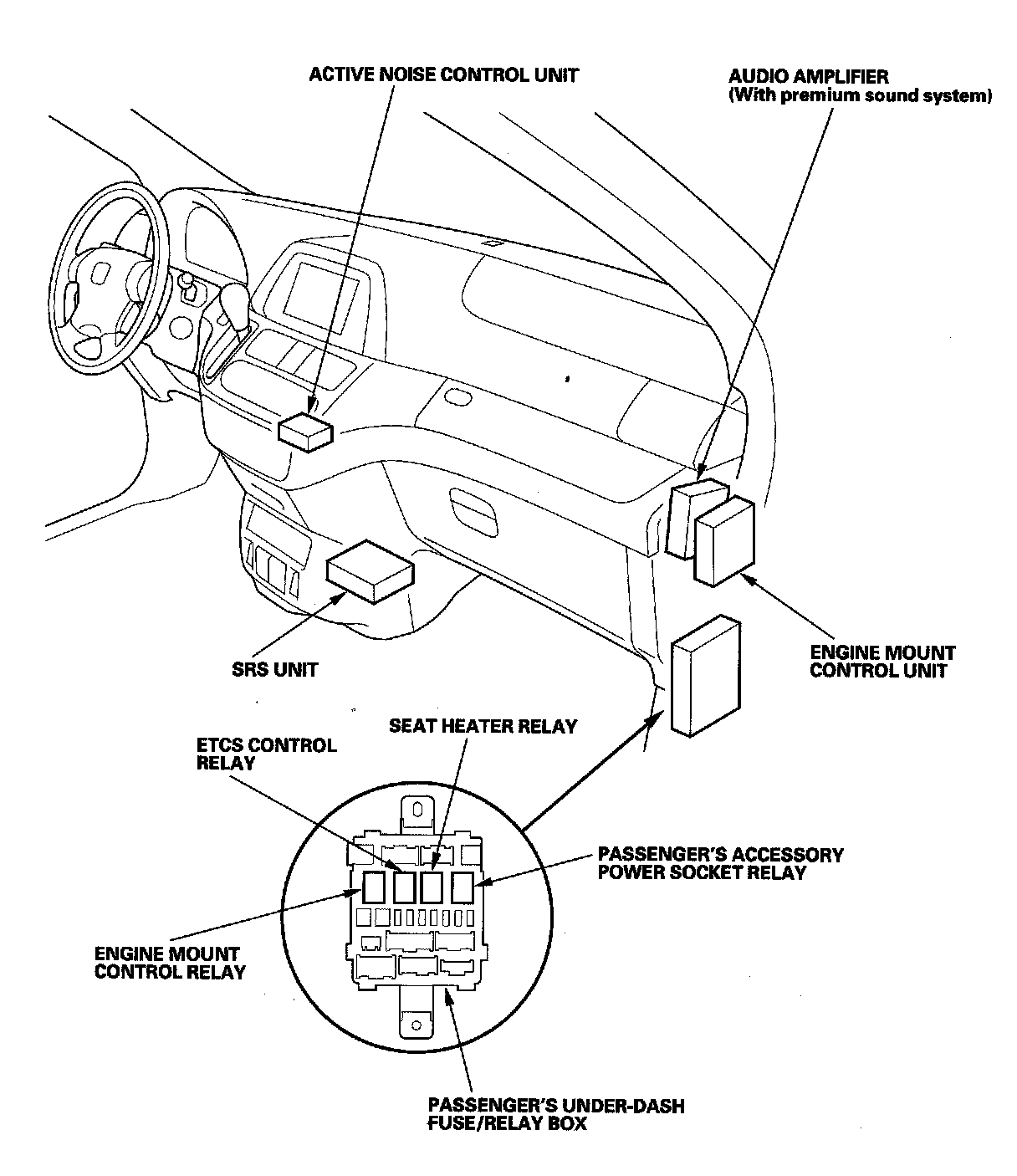

Relay And Control Unit Locations Dashboard:
