Engine Mount Control Unit: Service and Repair

Engine Mount Control Unit Replacement

1. Remove the lower glove box, and the right kick panel.

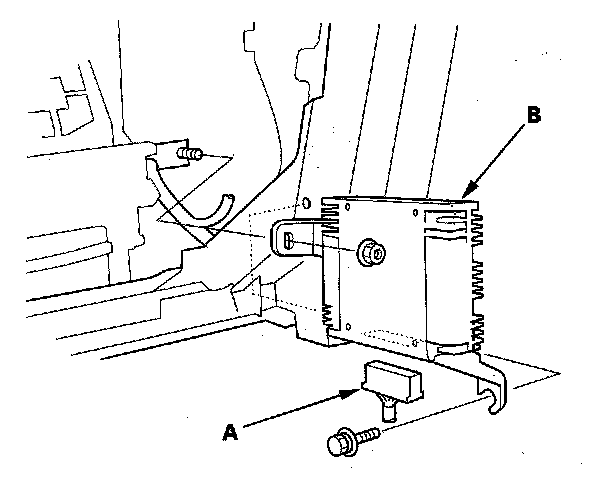

2. Disconnect the engine mount control unit 20P connector (A).
3. Remove the engine mount control unit (B).
4. Install the parts in the reverse order of removal.
