Voice Control Switch Test
Voice Control Switch Test1. Remove the driver's airbag assembly.

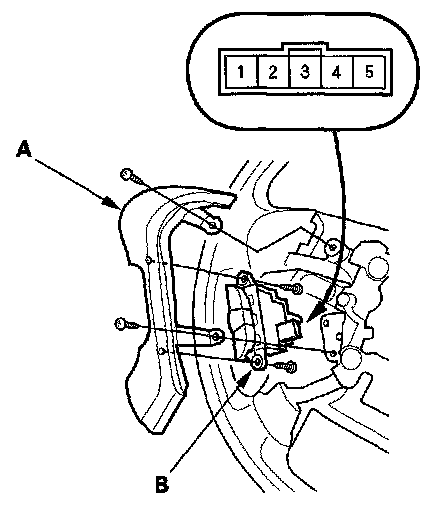

2. Remove the two screws and cover(A) from the steering wheel.
3. Remove the two screws from the audio remote/voice control switch (B).
4. Disconnect the 4P connector from the audio remote/voice control switch.

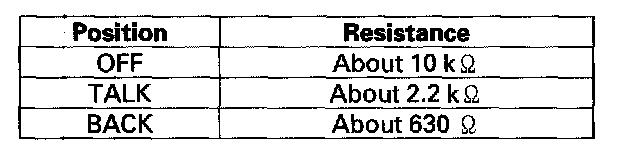

5. Measure the resistance between the No. 1 and No. 3 terminals in each switch position according to the table.
6. If the resistance is not as specified, replace the remote switch.
