Engine Mount Control Solenoid

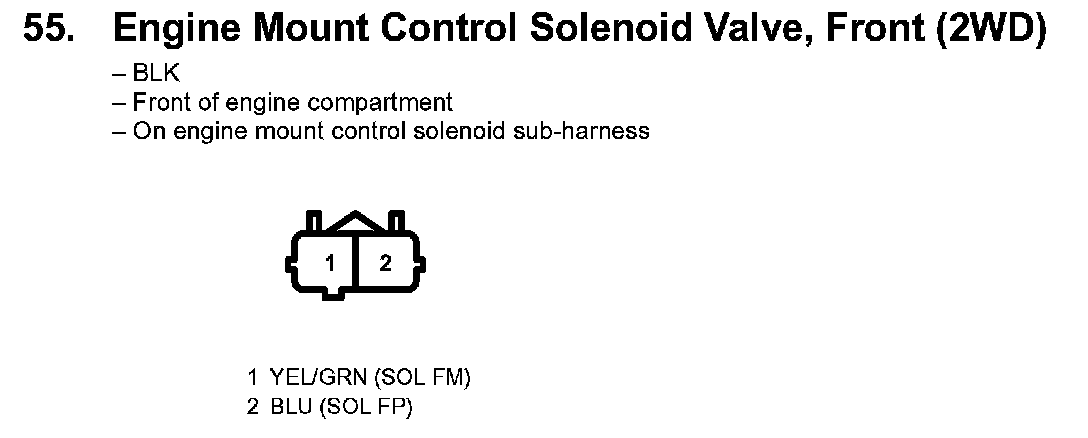

55. Engine Mount Control Solenoid Valve, Front:

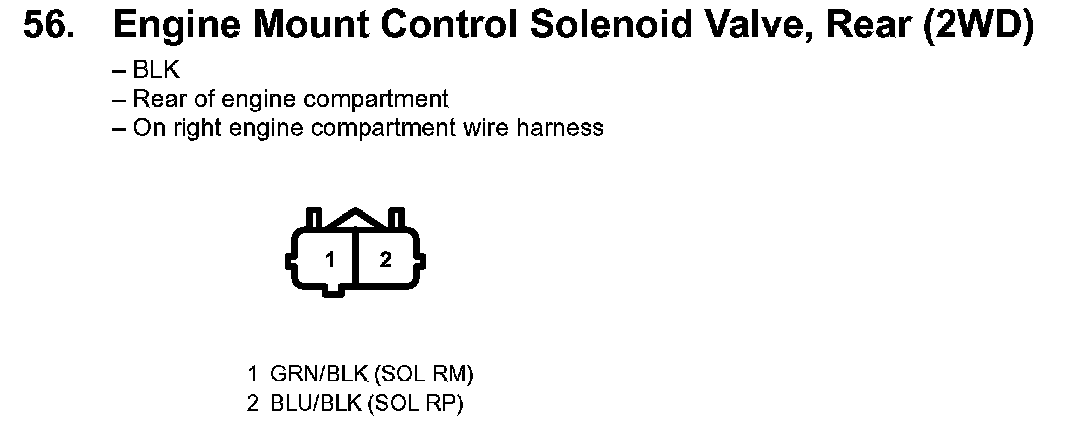

56. Engine Mount Control Solenoid Valve, Rear:
