Air Temperature Sensor ( Ambient / Intake ): Service and Repair

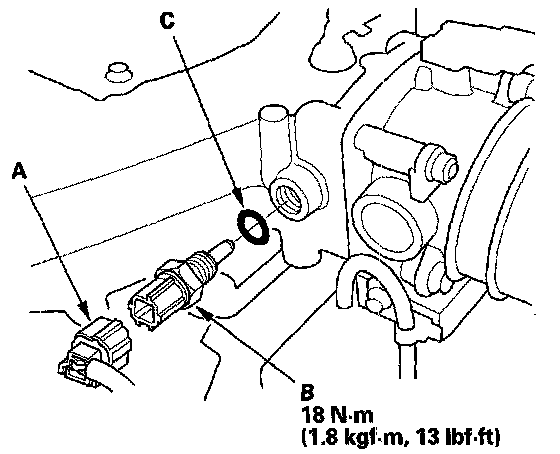

IAT Sensor Replacement

1. Remove the engine cover.




2. Disconnect the IAT sensor 2P connector (A).
3. Remove the IAT sensor (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
