Connector Locations

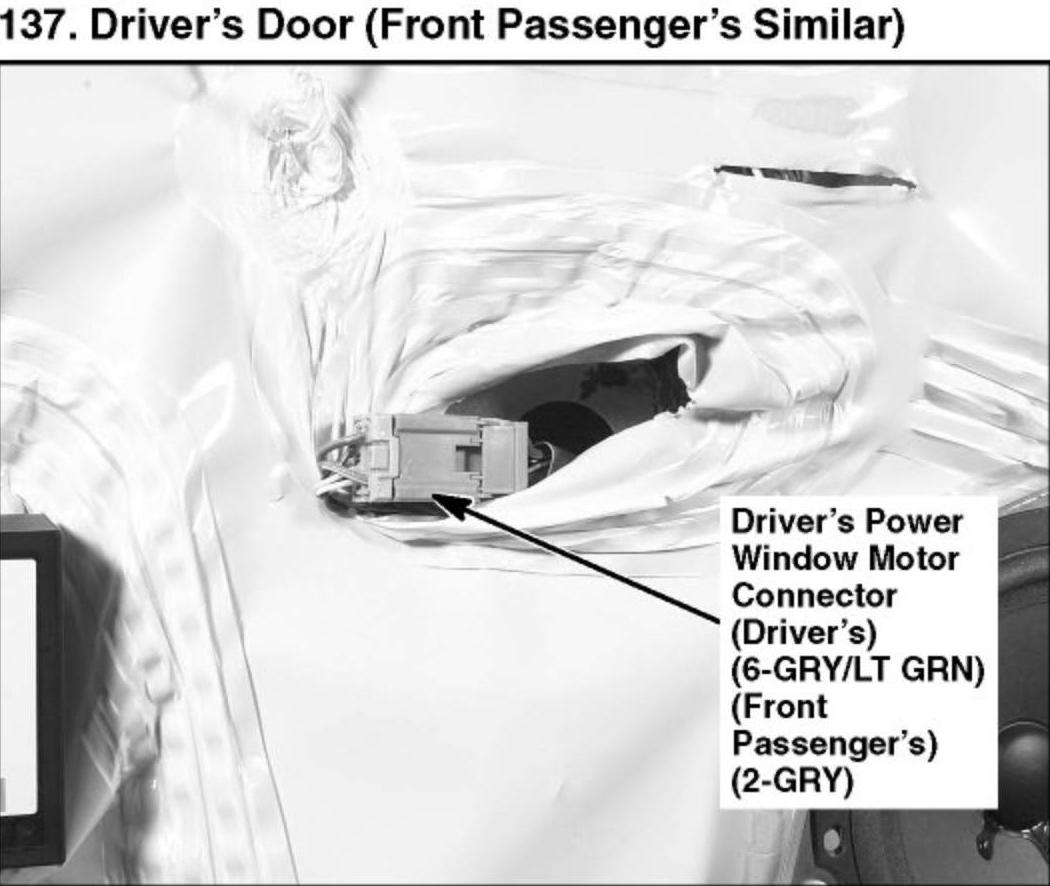

137. Driver's Door (Front Passenger's Similar):

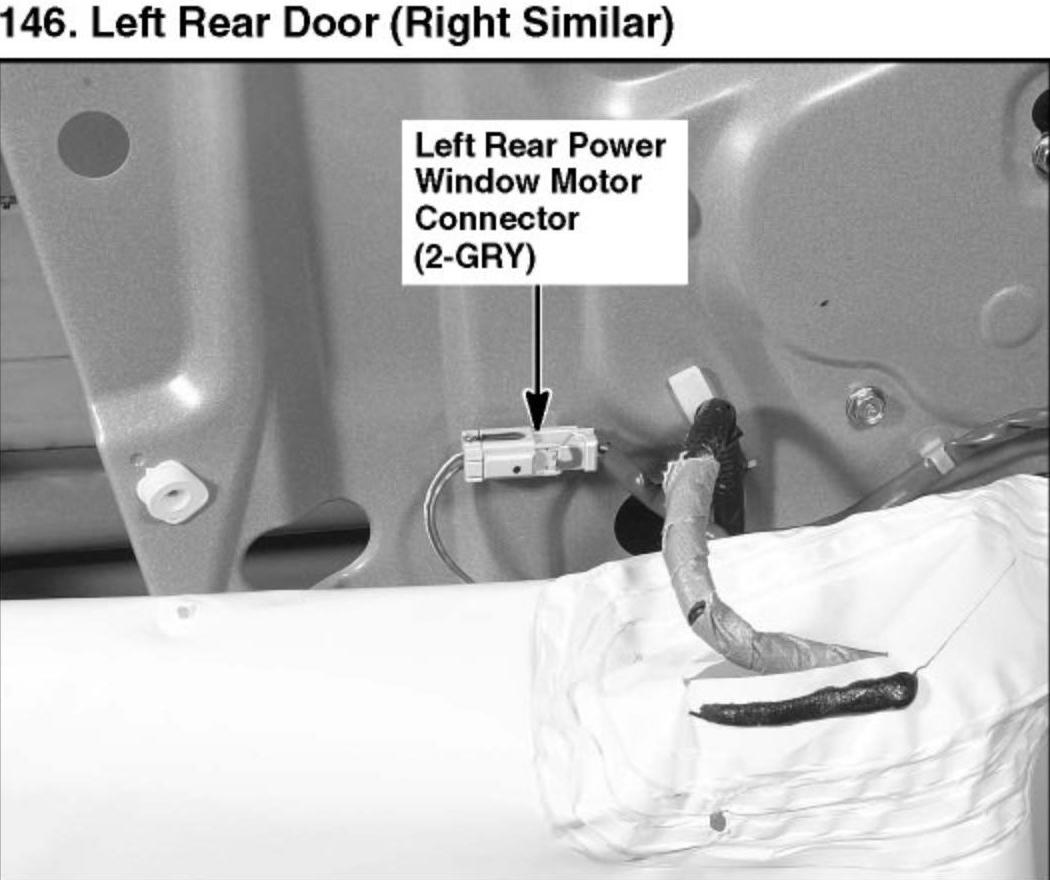

146. Left Rear Door (Right Similar):
