Engine Mount Control Unit Replacement

  1. Remove the passenger's console side trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the engine mount control unit 20P connector (A).

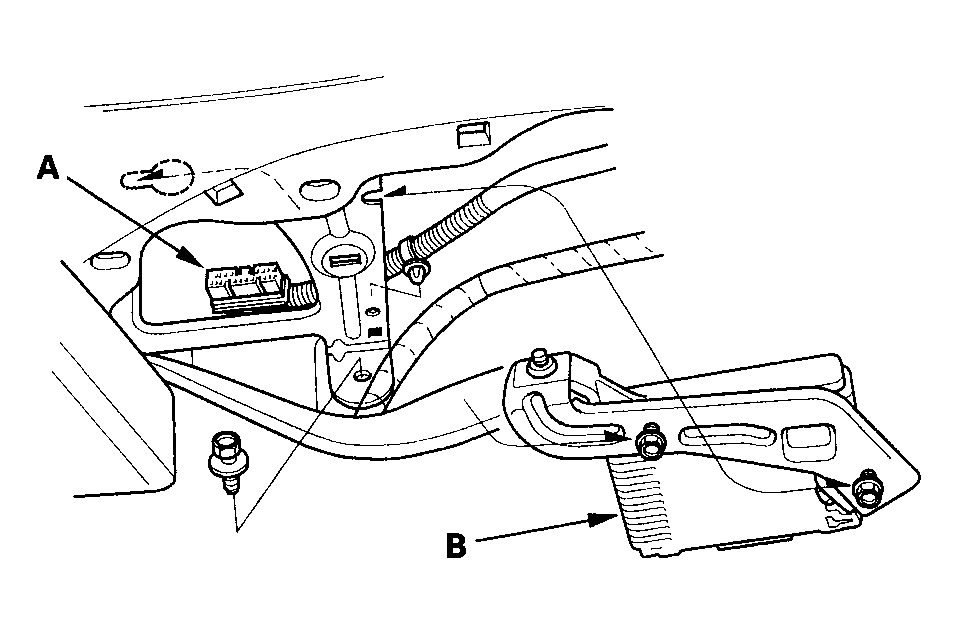

    Fig 1: Disconnecting Engine Mount Control Unit 20P Connector
    G04245431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the engine mount control unit (B).
  4. Install the engine mount control unit in the reverse order of removal.
