Power Window Master Switch Replacement
- Carefully pry off the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION
).

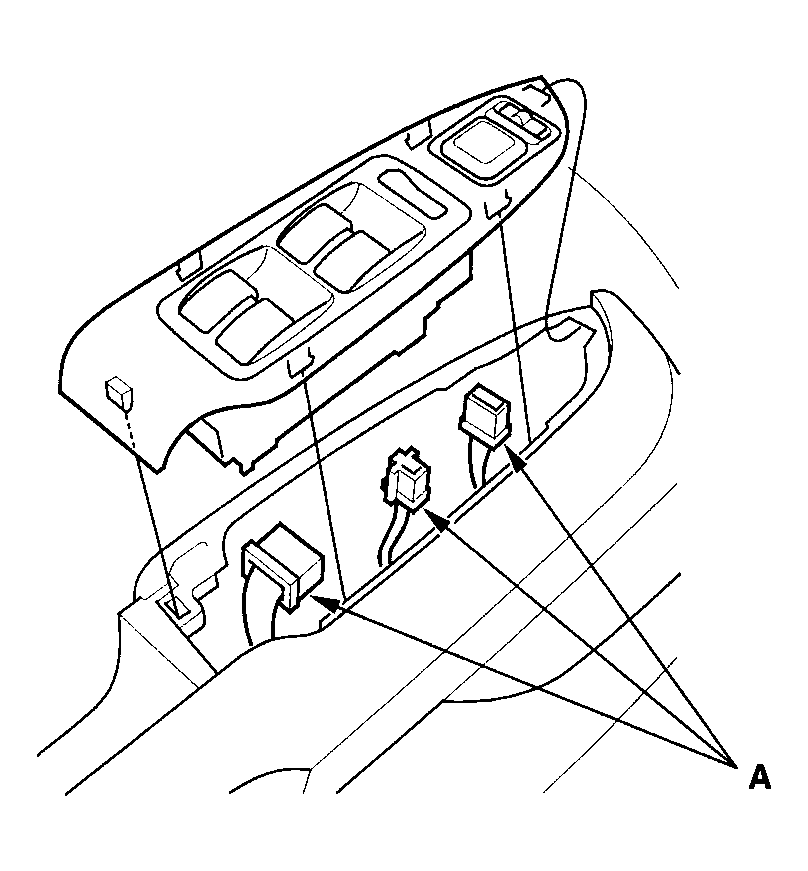

- Disconnect the power mirror and power window switch connectors (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

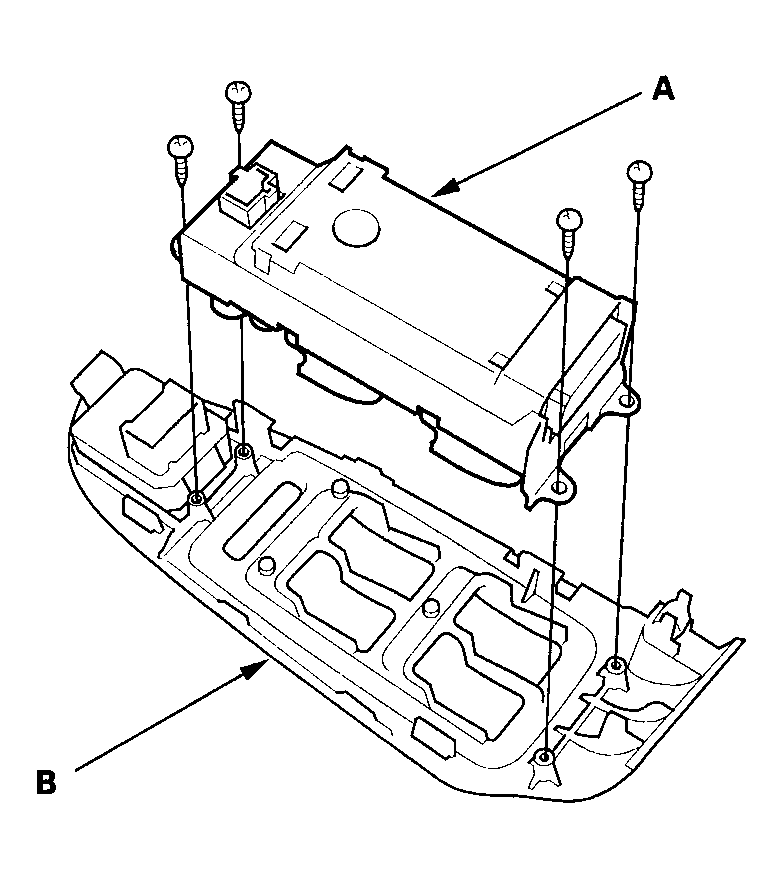

- Remove the four mounting screws, then remove the master switch (A) from the panel (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
