Relays And Control Unit Locations: Dashboard

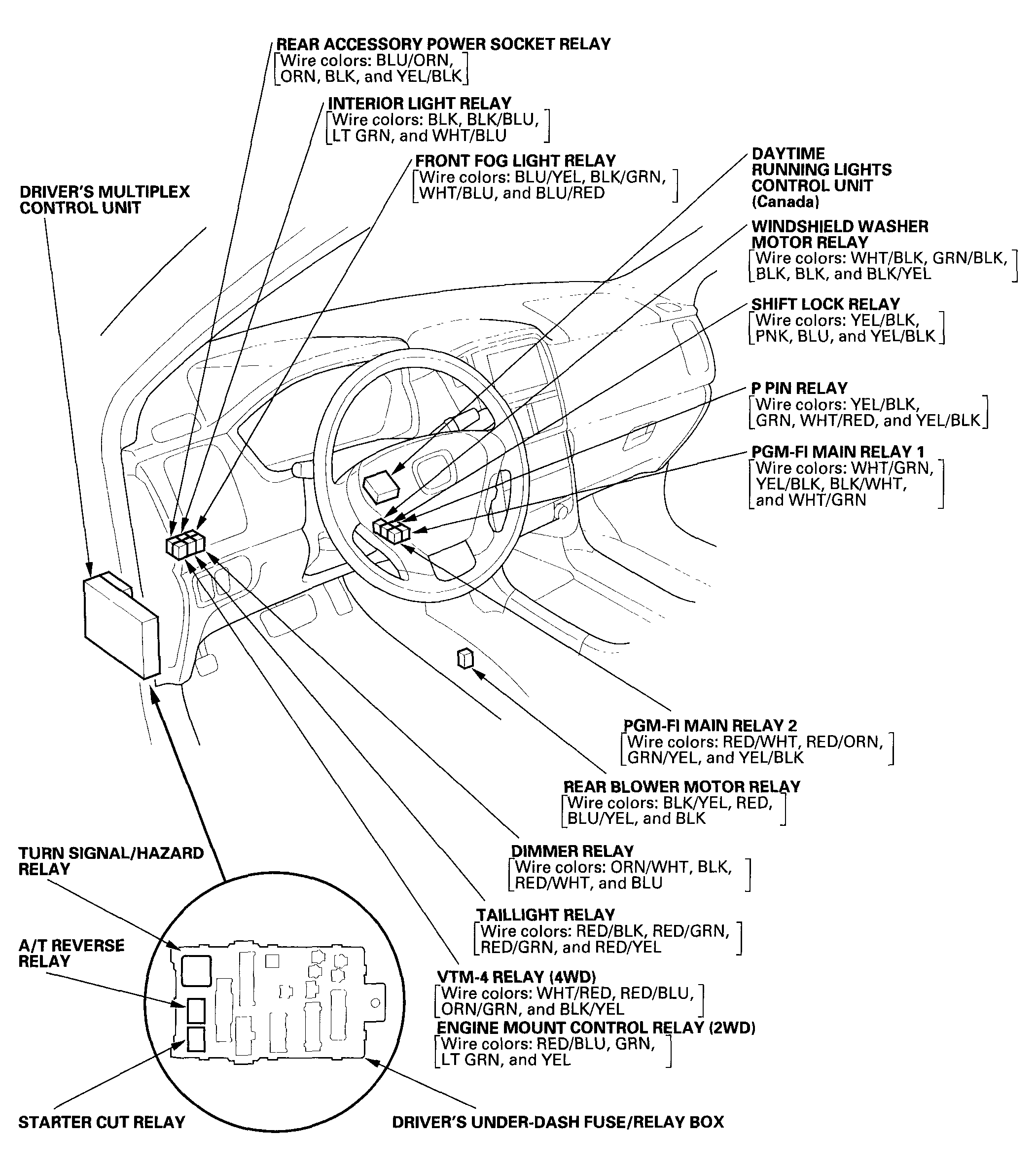

Fig 1: Identifying Control Units And Relays (Dashboard; 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

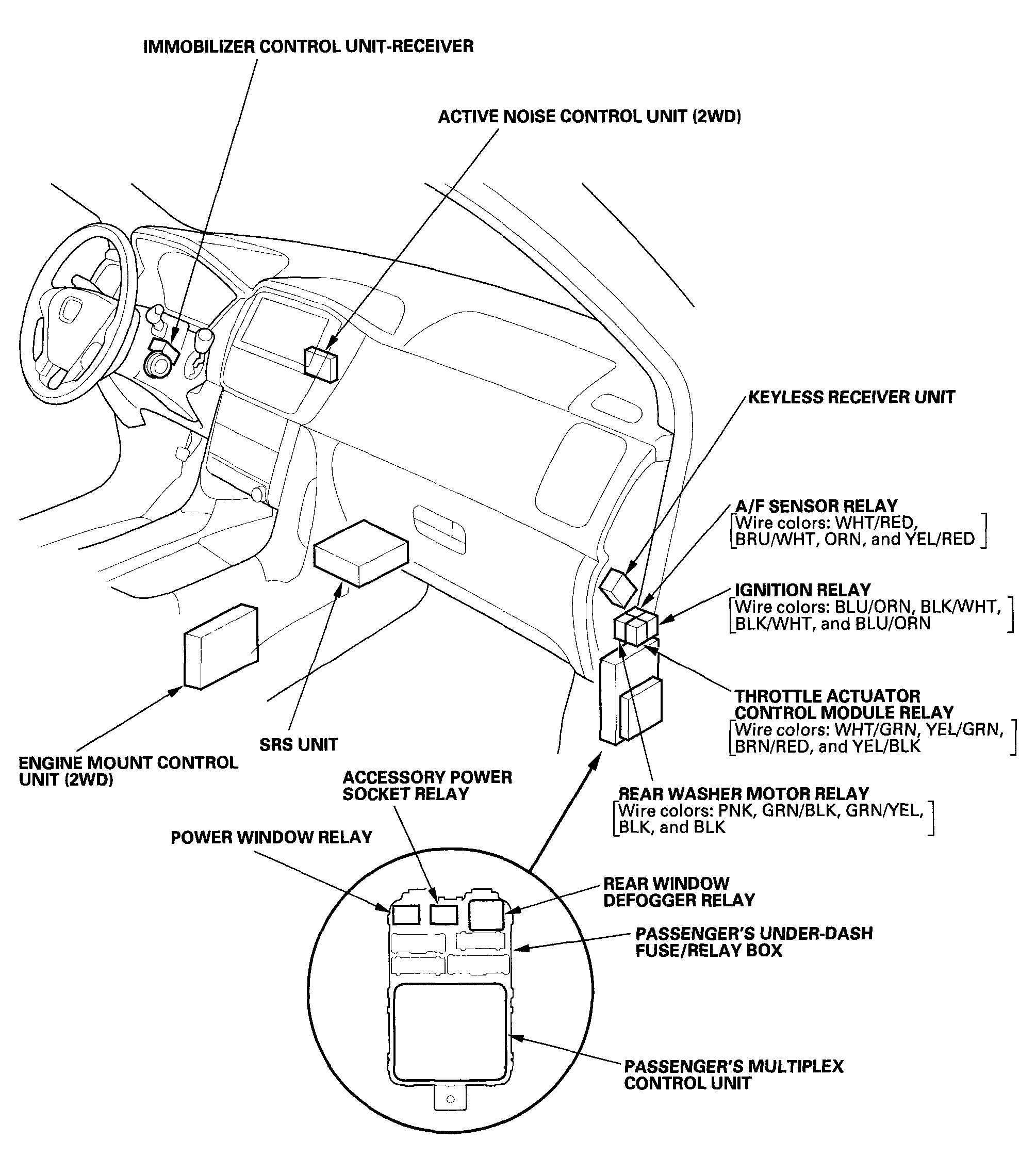

Fig 2: Identifying Control Units And Relays (Dashboard; 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

With Navigation:

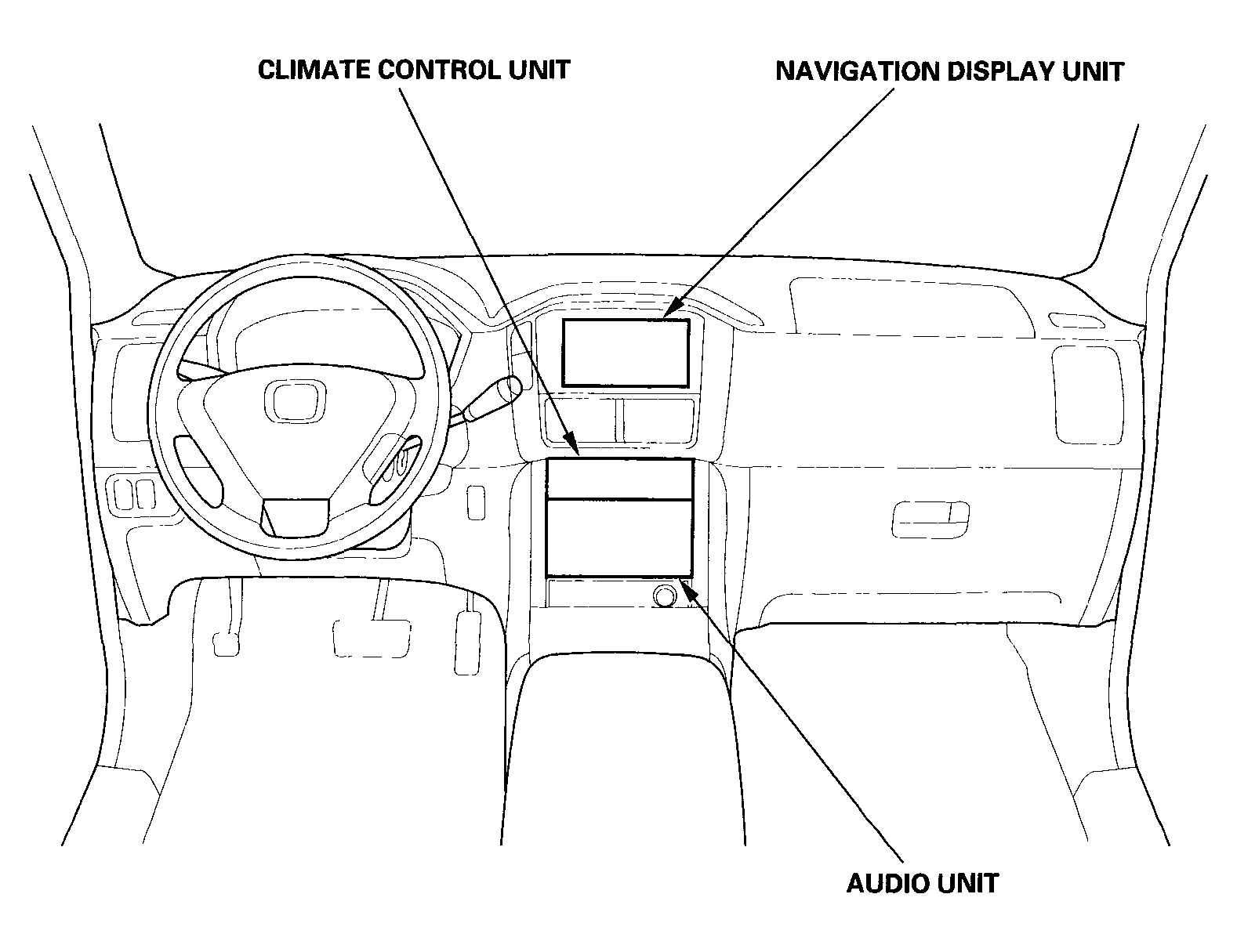

Fig 3: Identifying Control Unit Navigation Display Unit And Audio Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without Navigation:

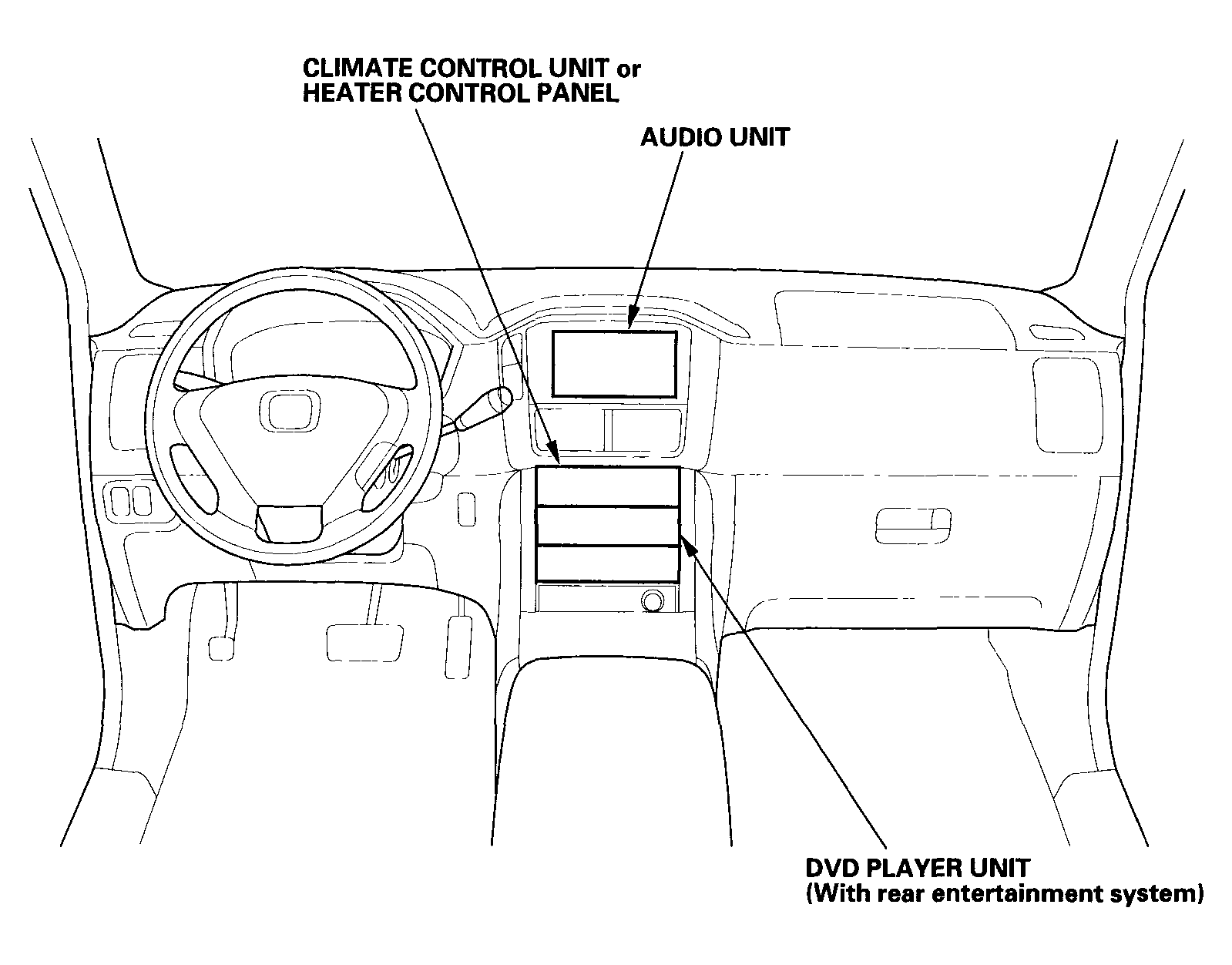

Fig 4: Identifying Climate Control Unit Or Heater Control Panel, Audio Unit And DVD Player Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
