Fuel Line Inspection

Check the fuel system lines, and hoses for damage, leaks, and deterioration. Replace any damaged parts.

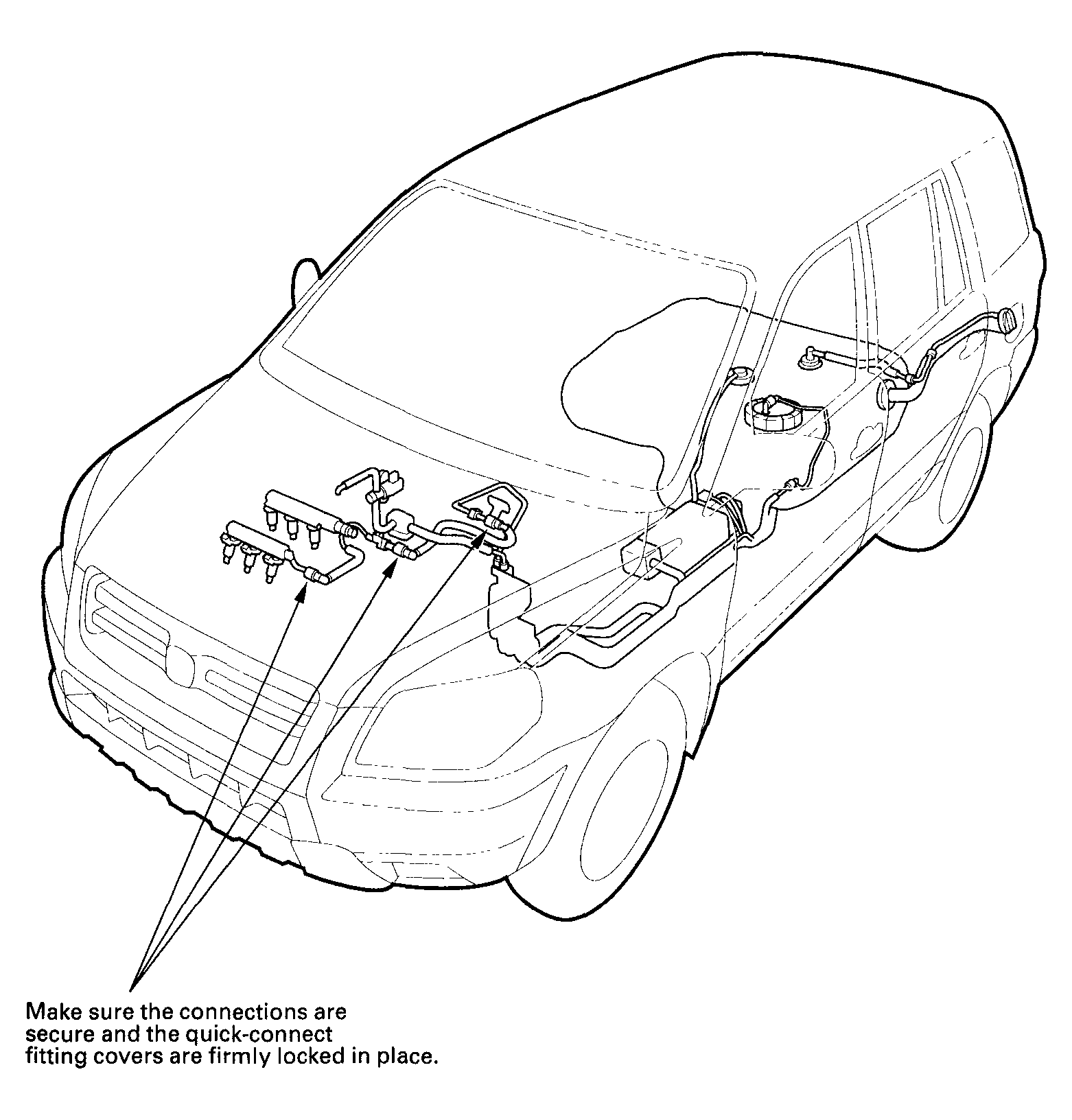

Fig 1: Locating Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.

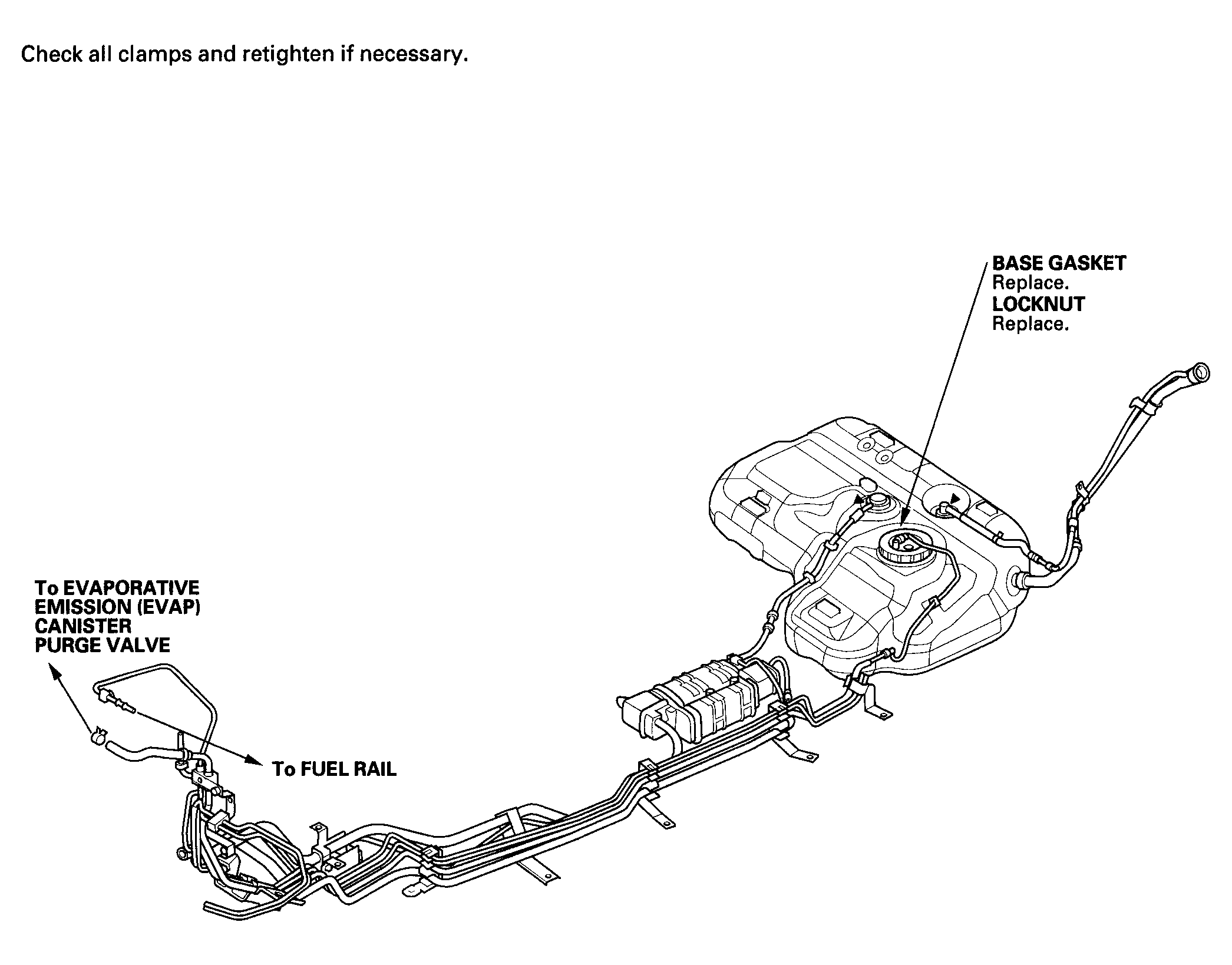

Fig 2: Checking Fuel Line

Courtesy of AMERICAN HONDA MOTOR CO., INC.
