Fuel Pressure Regulator Replacement

  1. Remove the fuel tank unit (see FUEL TANK UNIT REMOVAL/INSTALLATION  ).
  2. Remove the clip (A).

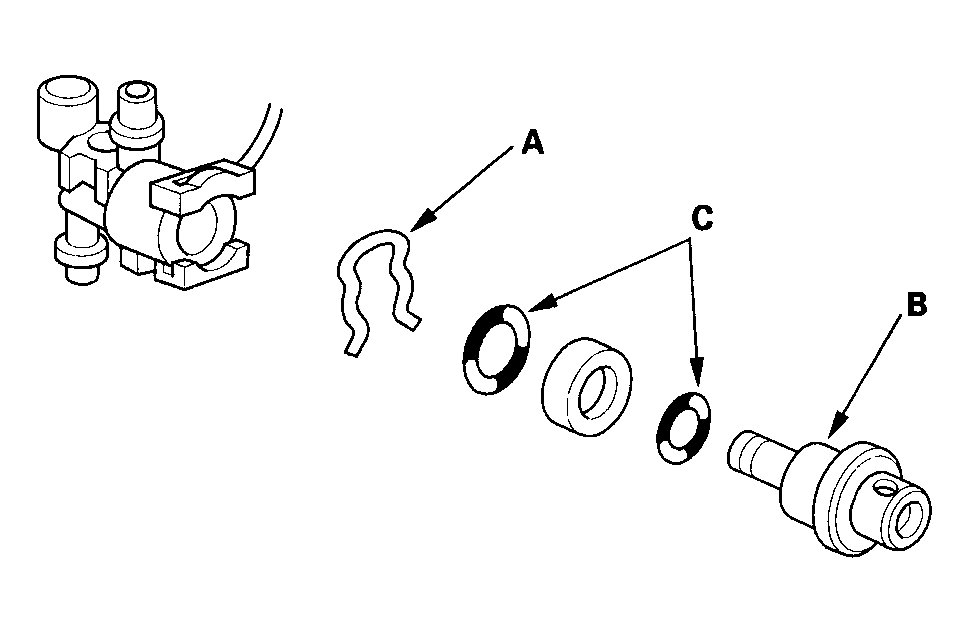

    Fig 1: Removing Clip & Fuel Pressure Regulator
    G04245495Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pressure regulator (B).
  4. Install the regulator in the reverse order of removal with new O-rings (C).
    NOTE:
    • Coat the O-rings with clean engine oil. Do not use any other oils.
    • Be careful not to pinch the O-rings when you install the fuel regulator.
