Air Cleaner Element Inspection/Replacement

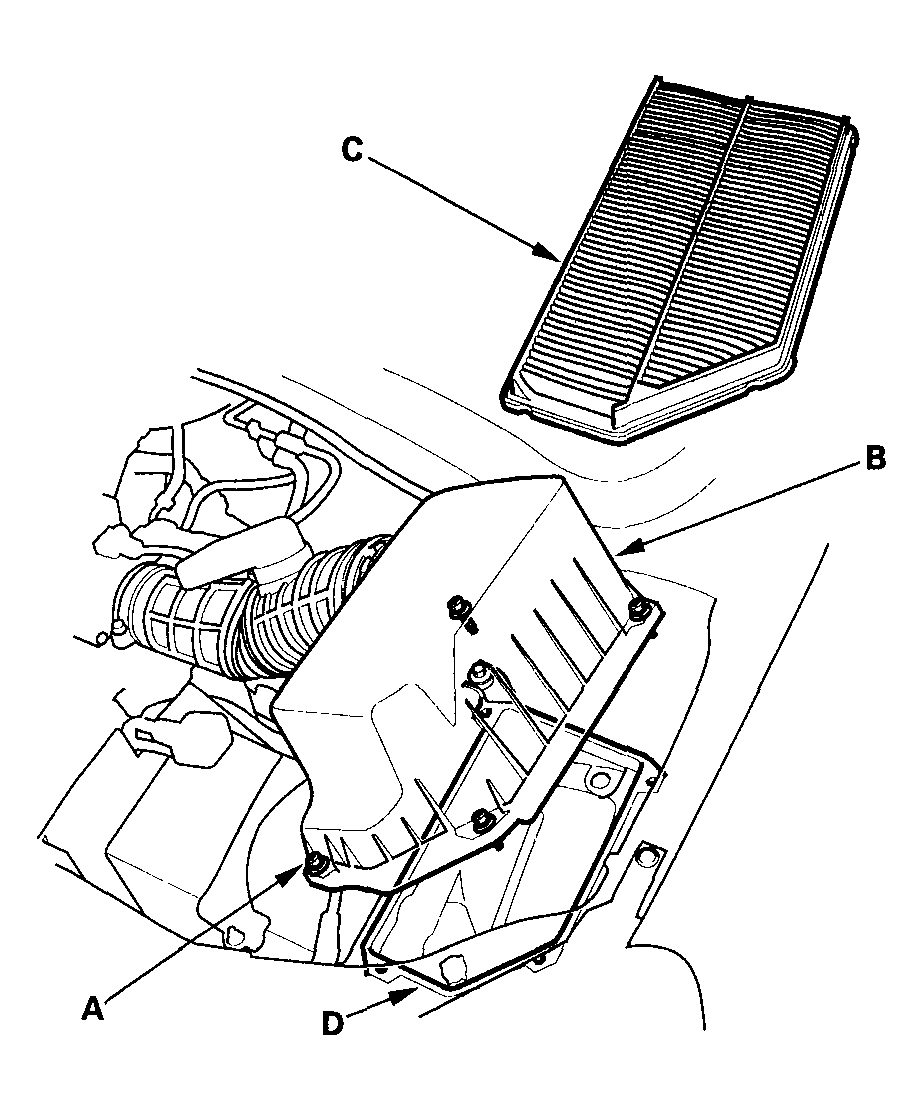

- Remove the air cleaner housing screws (A) and the cover (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the air cleaner element (C) from the air cleaner housing (D).
- Clean and remove any debris from inside the air cleaner housing.
- Check the air cleaner element for damage or clogging. If it is damaged or clogged, replace it.
NOTE:
Do not use compressed air to clean the air cleaner element.
- Install the parts in the reverse order of removal.
- If the maintence minder indicated the air cleaner element required replacement, check for other items that may also be displayed in the maintenance minder main items (see MAINTENANCE MAIN ITEMS
) and the sub items (see MAINTENANCE SUB ITEMS
) before resetting the maintenance minder.
