IMT Actuator Replacement

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Disconnect the IMT actuator 5P connector (A).

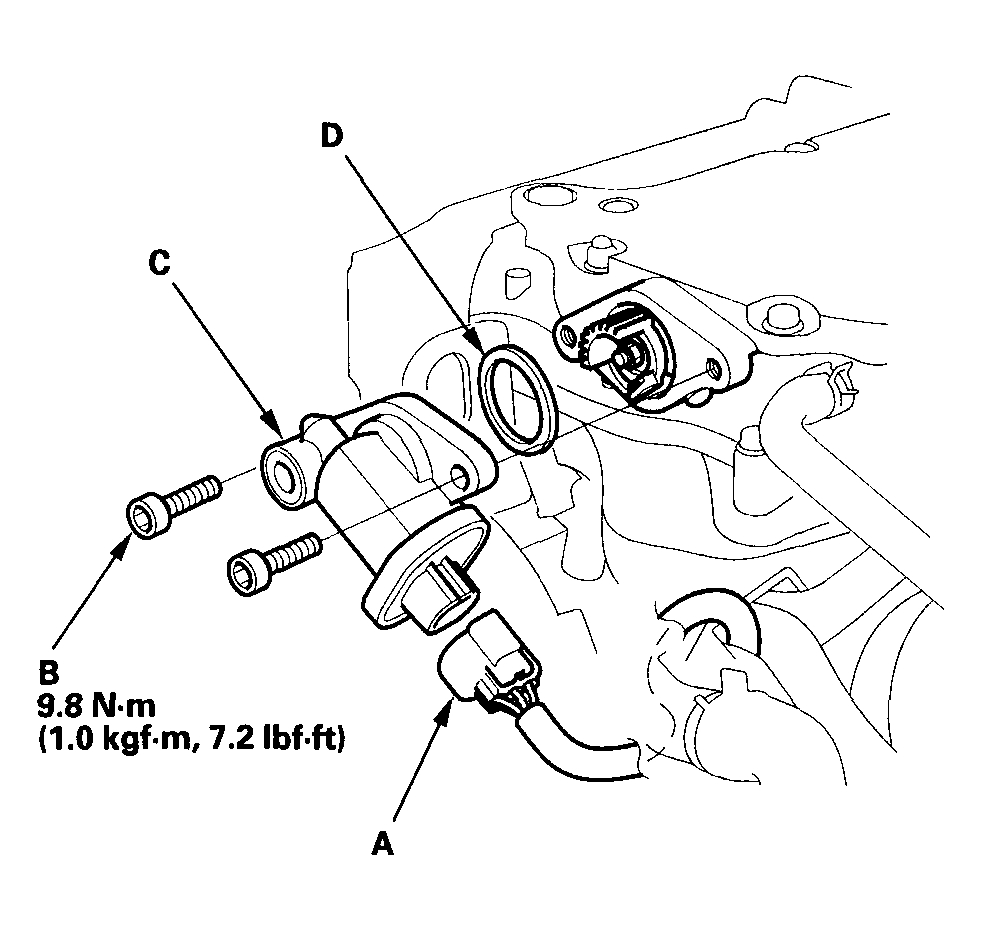

    Fig 1: Disconnecting IMT Actuator 5P Connector With Torque Specifications
    G04245533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the IMT actuator (C).
  4. Install the actuator in the reverse order of removal with a new O-ring (D).
