Rocker Arm Oil Pressure Switch (VTEC Oil Pressure Switch) Replacement

Disconnect the rocker arm oil pressure switch (VTEC oil pressure switch) connector (A), then remove the rocker arm oil pressure switch (VTEC oil pressure switch) (B).

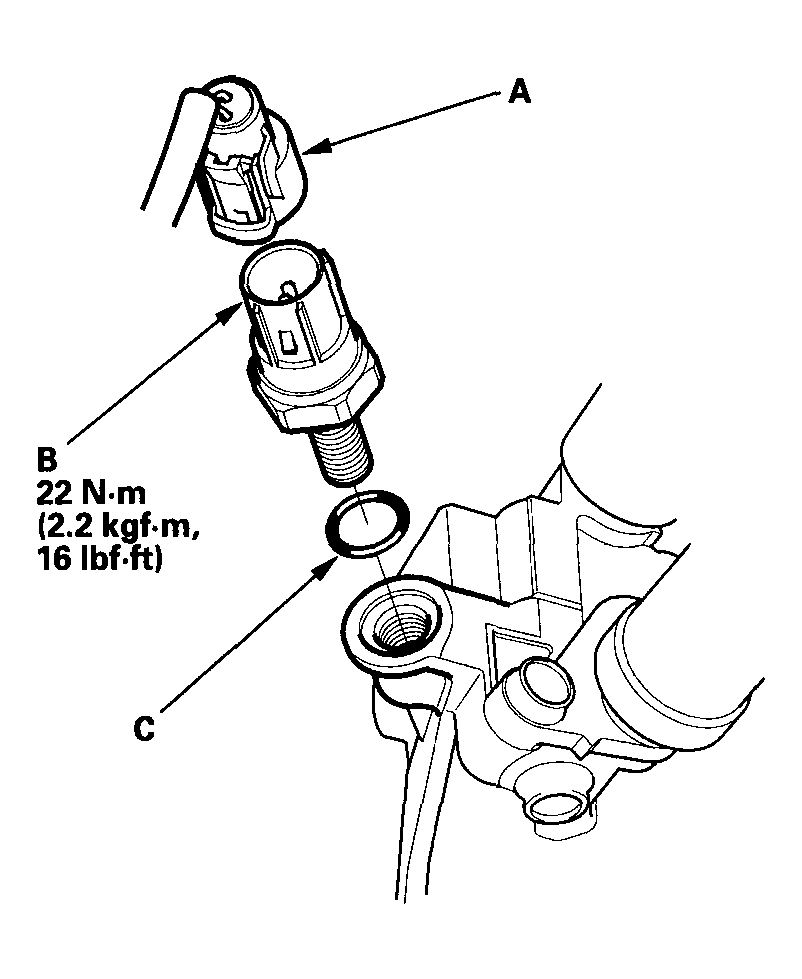

Fig 1: Disconnecting Rocker Arm Oil Pressure Switch Connector (A) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the switch in the reverse order of removal with a new O-ring (C).
