1 Position

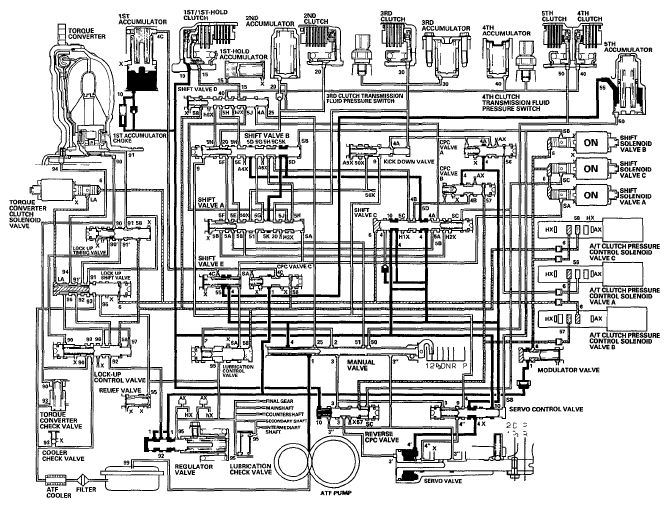

The PCM controls the shift solenoid valves and A/T clutch pressure control solenoid valves A and B. The conditions of the shift solenoid valves and the position of the shift valves are as follows:
- Shift solenoid valve A is turned ON, and shift valve A is in the right side.
- Shift solenoid valve B is turned ON, and shift valve B is in the right side.
- Shift solenoid valve C is turned ON, and shift valve C moves to the right side by the modulator pressure (6).
The PCM also controls A/T clutch pressure control solenoid valve B to apply the LS B pressure (57) to CPC valve B. Line pressure (4) from the manual valve becomes the 1st clutch pressure (10) at shift valve C. The 1st clutch pressure (10) is applied to the 1st clutch, and the 1st clutch is engaged. Line pressure (4) also flows to CPC valve B, and becomes the CPC B pressure (4B). The CPC B pressure (4B) becomes the 1st-hold clutch pressure (15) at shift valve D, via shift valves C, B, and A. The 1st-hold clutch pressure (15) is applied to the 1st-hold clutch, and the 1st-hold clutch is engaged.
