DTC P0974: Open in Shift Solenoid Valve A Circuit: Notes

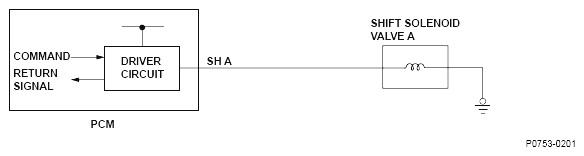

Fig 1: Shift Solenoid Valve A - Circuit Diagram (Short)
G04817117

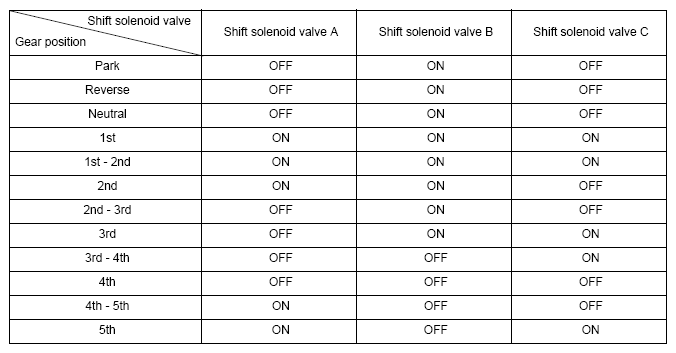

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04838256
