EOP Sensor Removal/Installation

  1. Remove the intake manifold cover (see step 1 in REMOVAL ).
  2. Remove the EOP sensor 3P connector (A).

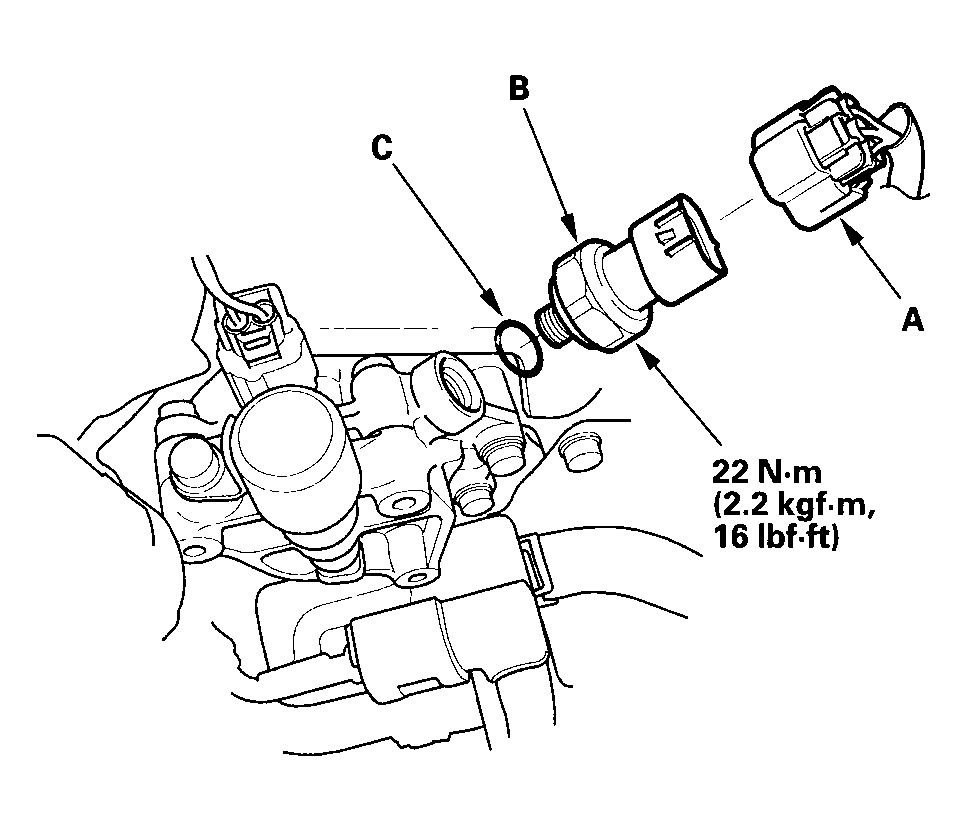

    Fig 1: Removing EOP Sensor 3P Connector (A) With Torque Specifications
    G04245386Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the EOP sensor (B).
  4. Install the EOP sensor in the reverse order of removal with a new O-ring (C).
