Audio Unit Connector for Inputs and Outputs

When replacing an audio unit connector, match the wires to the cavities listed in the following tables.

With navigation

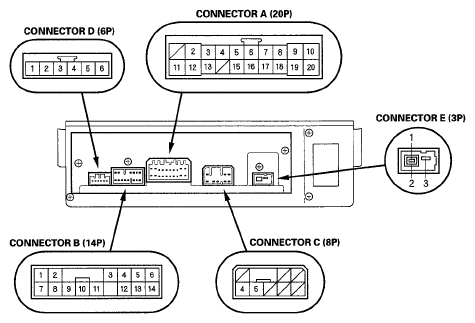

Fig 1: Identifying Audio Unit Connectors
G05593125Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without navigation/6CD type

Fig 2: Identifying Audio Unit Connectors For Without Navigation/6CD Type
G05593126Courtesy of AMERICAN HONDA MOTOR CO., INC.

Without navigation/1 CD type

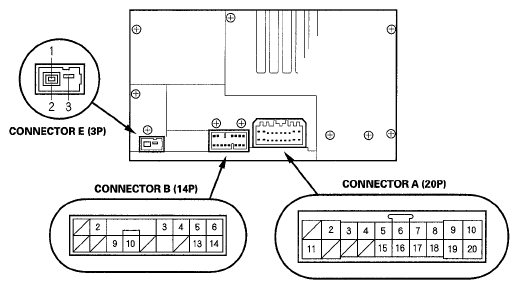

Fig 3: Identifying Audio Unit Connectors For Without Navigation/1 CD Type
G05593127Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO CONNECTOR A (20P)

AUDIO CONNECTOR A (20P) TERMINALS DESCRIPTION

Cavity Wire Connect to
A1 - Not used
A2 YEL/RED ACC (main stereo power supply)
A3 GRN/RED Audio remote switch
A4 GRN/WHT(1) Navigation display (SCTY)
RED/WHT MICU (SCTY)
A5 RED/BLU Right rear speaker (+)
A6 BRN/WHT Left rear speaker (+)
A7 BLU Front passenger's door speaker (+), Right tweeter (+)
A8 LT GRN Driver's door speaker (+), Left tweeter (+)
A9 RED/BLK Lights-on signal
A10 WHT Constant power
A11 BRN Audio remote switch ground
A12 BLU/RED(1) Navigation unit (RG GND)
A13 WHT(1) Navigation unit (RG L+)
A15 YEL Right rear speaker (-)
A16 RED/YEL Left rear speaker (-)
A17 RED Front passenger's door speaker (-), Right tweeter (-)
A18 PUR Driver's door speaker (-), Left tweeter (-)
A19 RED Dash lights brightness controller
A20 BLK Ground (G404)
(1) With navigation

AUDIO CONNECTOR B (14P) With navigation

AUDIO CONNECTOR B (14P) WITH NAVIGATION TERMINALS DESCRIPTION

Cavity Wire Connect to
B1 YEL CD changer (+B GA-NET)
B2 PUR CD changer (SYSTEM ACC)
B3 GRN/BLK* CD changer (AUD BUS GA-NET shield)
B4 LT GRN* CD changer (AUD shield)
B5 BLK CD changer (AUD R+)
B6 GRN CD changer (AUD L+)
B7 BLU CD changer (+B GA-NET2)
B8 GRN/BLK CD changer (ILL+)
B9 RED/BLU CD changer (AUD BUS+ GA-NET)
B10 YEL CD changer (AUD BUS-GA-NET)
B11 GRN/RED CD changer (Ground)
B12 GRN CD changer (GA-NET ILL CTRL)
B13 RED CD changer (AUD R-)
B14 WHT CD changer (AUD L-)

AUDIO CONNECTOR B (14P)

Without navigation/With XM radio

AUDIO CONNECTOR B (14P) TERMINALS DESCRIPTION

Cavity Wire Connect to
B1 - Not used
B2 ORN XM receiver (SAT SYSTEM ACC)
B3 BRN(1) XM receiver (SAT BUS (GA-NET) shield)
B4 GRY(1) XM receiver (SAT shield GND)
B5 WHT XM receiver (SAT R+)
B6 RED XM receiver (SAT L+)
B9 BLU XM receiver (SAT BUS+ (GA-NET))
B10 PNK XM receiver (SAT BUS-(GA-NET))
B13 BLK XM receiver (SAT R-)
B14 GRN XM receiver (SAT L-)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

AUDIO CONNECTOR C (8P) Without Navigation/6CD type

AUDIO CONNECTOR C (8P) TERMINALS DESCRIPTION WITHOUT NAVIGATION/6CD TYPE

Cavity Wire Connect to
C4 YEL/BLK SUBWOOFER (RR WOOFER+)
C5 LT GRN/RED SUBWOOFER (RR WOOFER-)

AUDIO CONNECTOR D With Navigation

AUDIO CONNECTOR TERMINALS DESCRIPTION WITH NAVIGATION

Cavity Wire Connect to
D1 YEL AUXILIARY JACK ASSEMBLY (AUX DET)
D2 BLU AUXILIARY JACK ASSEMBLY (AUX ground)
D3 BRN AUXILIARY JACK ASSEMBLY (R CH)
D4 RED AUXILIARY JACK ASSEMBLY (S ground)
D5 WHT AUXILIARY JACK ASSEMBLY (L CH)
D6 LT GRN/RED(1) AUXILIARY JACK ASSEMBLY (AUX ground shield)
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

CONNECTOR E (3P)

CONNECTOR E TERMINALS DESCRIPTION

Cavity Wire Connect to
1 - AM/FM Antenna Amplifier (SIG)
2 - AM/FM Antenna Amplifier (SH (AM/FM))
3 - AM/FM Antenna Amplifier (SWD+B)
