CD Changer Connector for Inputs and Outputs (With Navigation System)

When replacing a CD changer connector, match the wires to the cavities listed in the following tables.

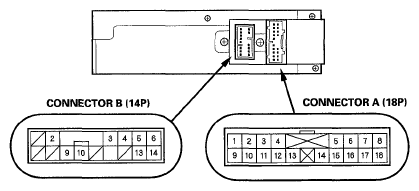

Fig 1: Identifying CD Changer Connectors (With Navigation System)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

CD CHANGER CONNECTOR FOR INPUTS AND OUTPUTS (WITH NAVIGATION SYSTEM)

Cavity

Wire

Connect to

WHT

Audio unit (AUD L-)

RED

Audio unit (AUD R-)

GRN

Audio unit (GA-NET ILL CTRL)

GRN/RED

Navigation display (CD EJECT)

RED/BLU

Audio unit (AUD BUS+(GA-NET))

PUR

Audio unit (SYSTEM ACC)

YEL

Audio unit (+B GA-NET)

YEL

Navigation display (NAVI SCTY2)

GRN

Audio unit (AUD L+)

A10

BLK

Audio unit (AUD R+)

A11

LT GRN⁽¹⁾

Audio unit (AUD shield)

A12

GRN

Navigation display (DISP OPEN)

A13

GRN/RED

Audio unit (Ground)

A14

GRN/BLK⁽¹⁾

Audio unit (AUD BUS (GA-NET) shield)

A15

YEL

Audio unit (AUD BUS- (GA-NET))

A16

GRN/BLK

Audio unit (ILL+)

A17

BLU

Audio unit (+B GA-NET2)

A18

RED/WHT

MICU (SCTY IN)

ORN⁽²⁾

XM receiver (SAT SYSTEM ACC)

LT GRN⁽³⁾

Navigation display (AUDIO BUS (GA-NET) shield)

GRY⁽²⁾, ⁽³⁾

XM receiver (SAT shield)

WHT⁽²⁾

XM receiver (SAT R+)

RED⁽²⁾

XM receiver (SAT L+)

WHT

Navigation display (AUDIO BUS+ (GA-NET))

B10

BLU/RED

Navigation display (AUDIO BUS- (GA-NET))

B13

BLK⁽²⁾

XM receiver (SAT R-)

B14

GRN⁽²⁾

XM receiver (SAT L-)

⁽¹⁾	The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

⁽²⁾	With XM radio

⁽³⁾	The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
