Climate Control Unit Inputs and Outputs

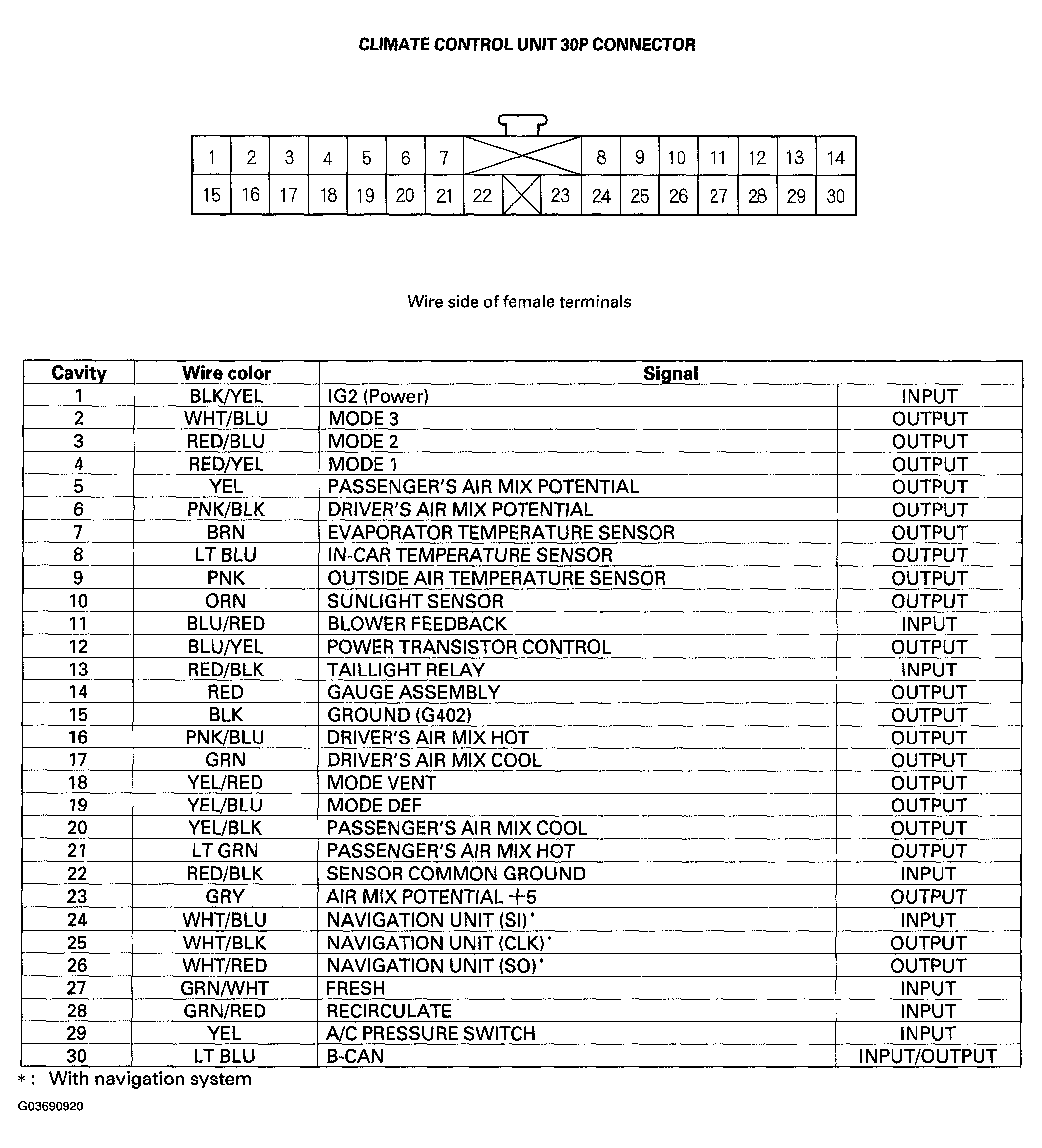

Fig 1: Identifying Climate Control Unit Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
