Back-Up Sensor Control Unit (Honda Accessory) Connector End View

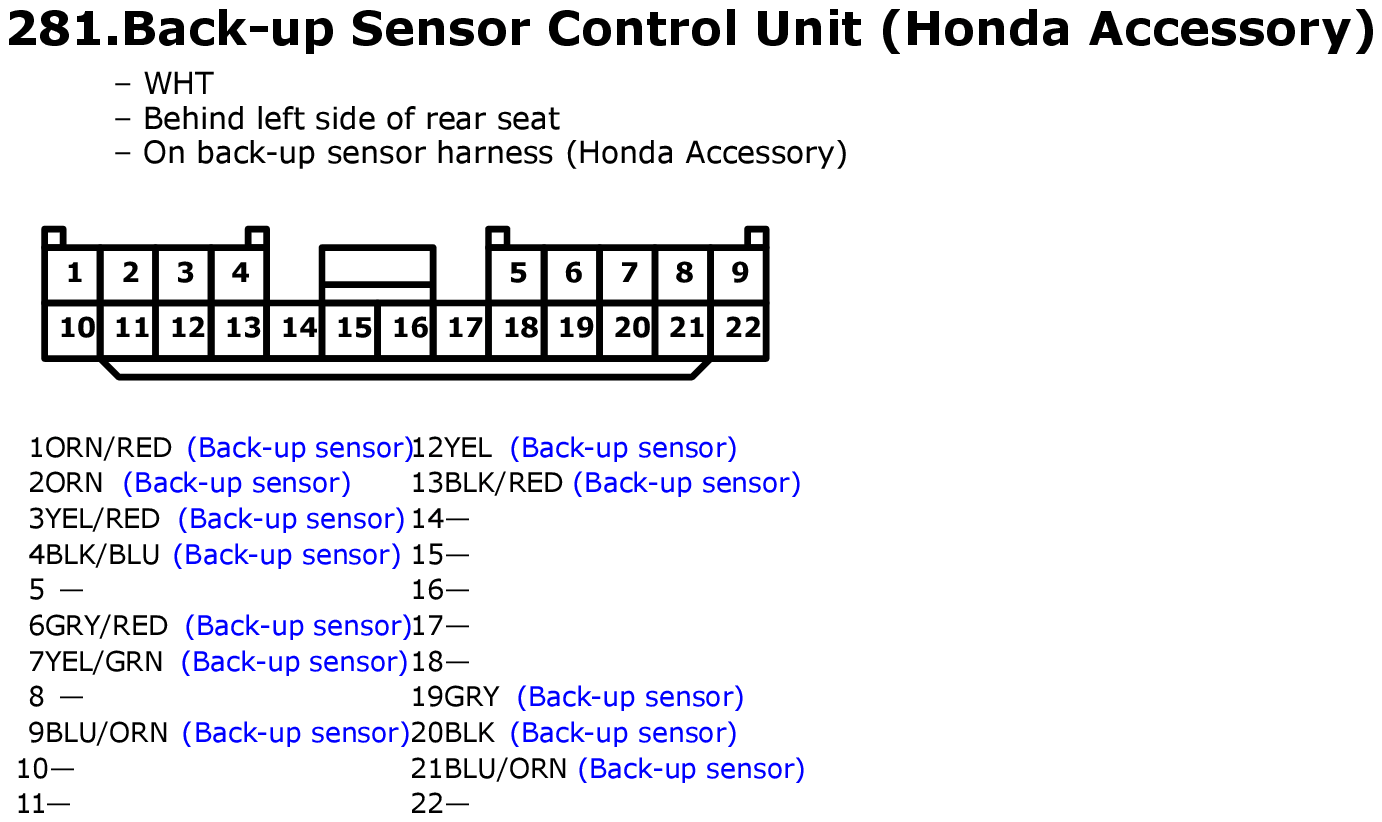

Fig 1: Back-Up Sensor Control Unit (Honda Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
