Trailer Lighting Control Unit (RTX) Connector End View

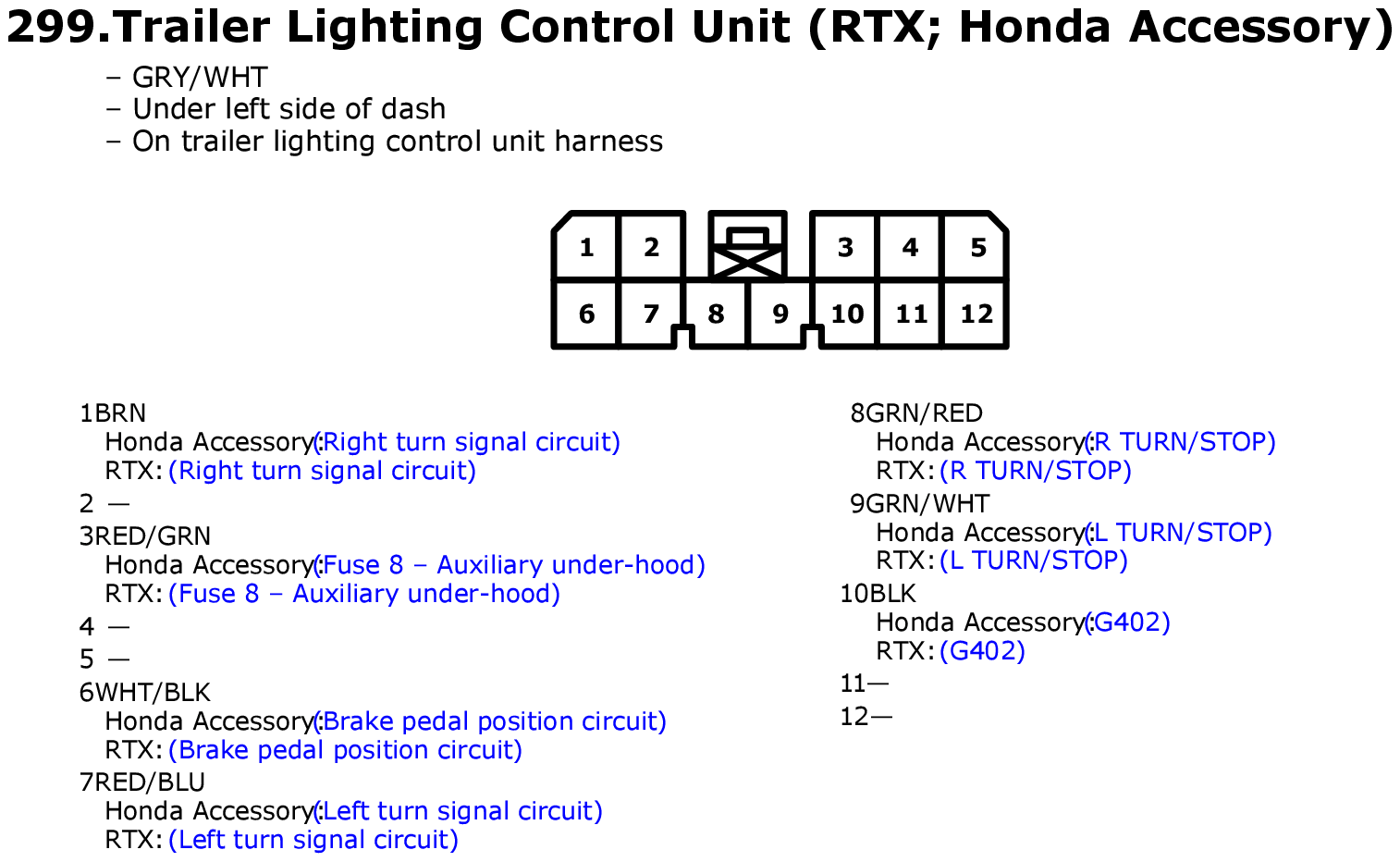

Fig 1: Trailer Lighting Control Unit (RTX) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
