Relays And Control Unit Locations: Roof

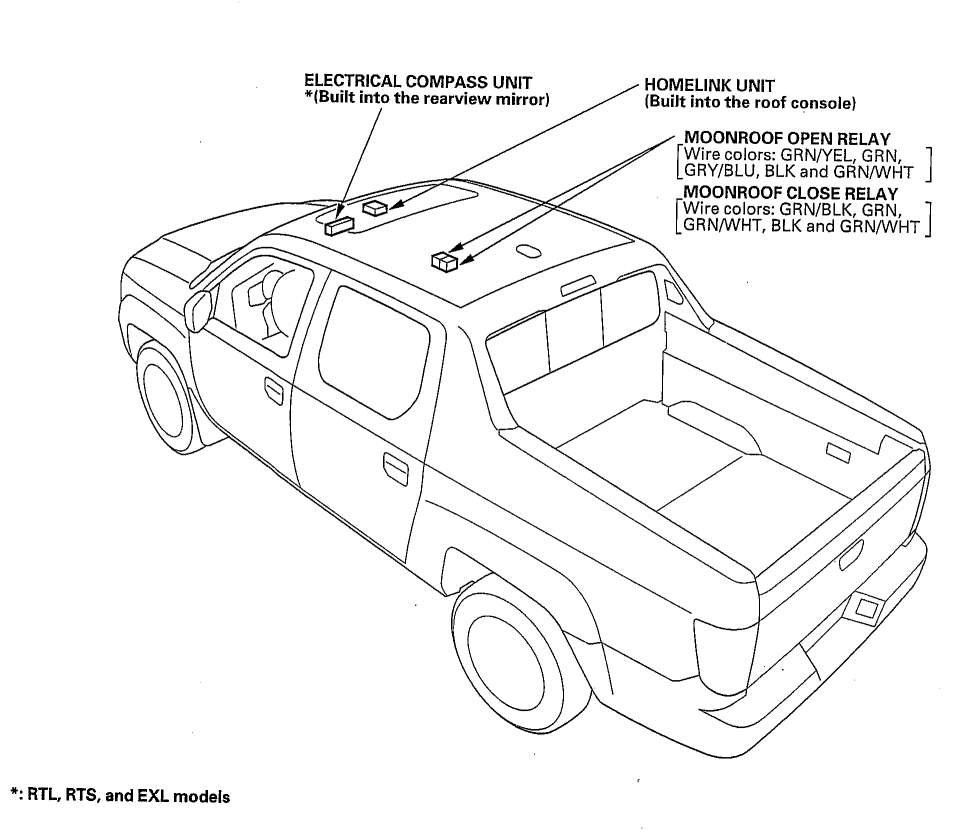

Fig 1: Identifying Relay And Control Unit Locations (Roof)
G03691003Courtesy of AMERICAN HONDA MOTOR CO., INC.
