Air Intake Duct Removal/ Installation

Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).
Remove air intake duct B (A).

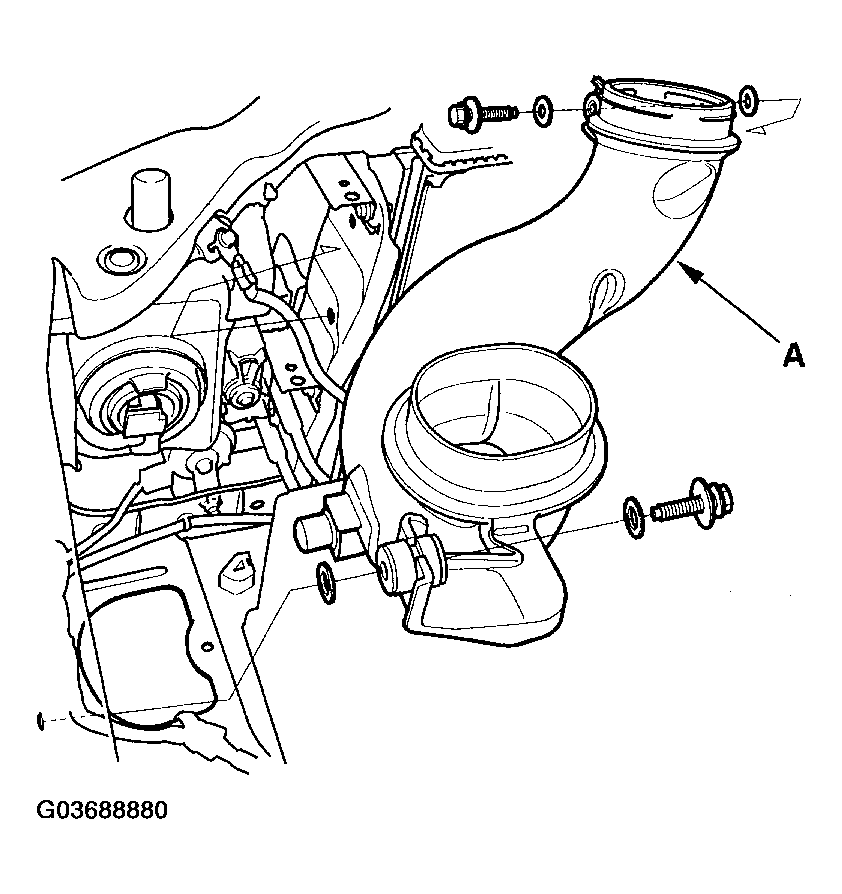

Fig 1: Removing Air Intake Duct (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove air intake duct A (A).

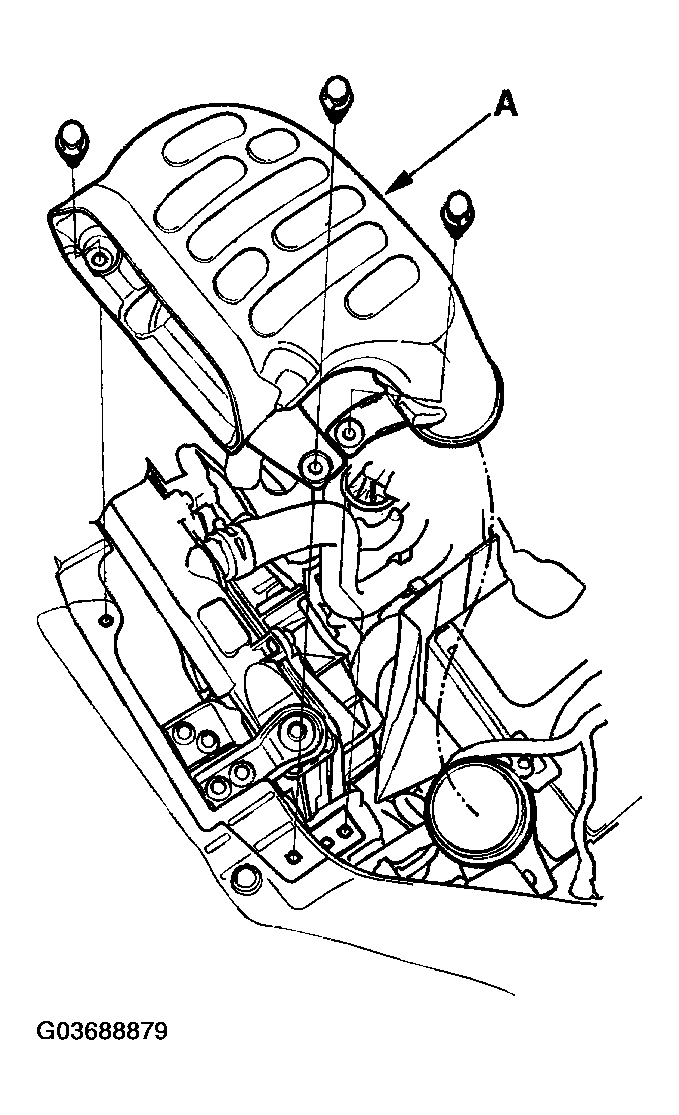

Fig 2: Removing Air Intake Duct (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
