Front Mode Control Motor Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 7P connector (A) from the mode control motor (B). Remove the rods (C) of the mode control motor from the mode control motor linkage (D) and the mode control linkage (E). Remove the self-tapping screws and the mode control motor from the heater unit.

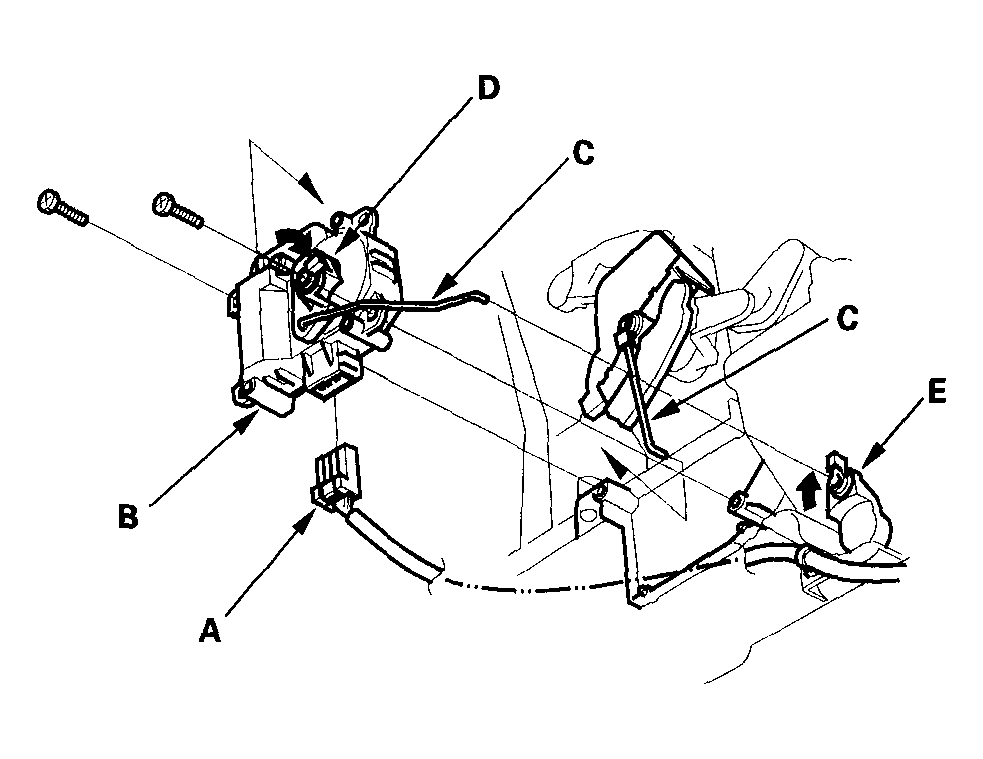

    Fig 1: Removing Mode Control Motor
    G04246867Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the motor in the reverse order of removal. After installation, make sure the motor runs smoothly.
