Recirculation Control Motor Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both glove box stops, then let the glove box hang down (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the wire harness connectors from the evaporator.
  3. Disconnect the 7P connector (A) from the recirculation control motor (B). Remove the self-tapping screws and the recirculation control motor from the blower unit

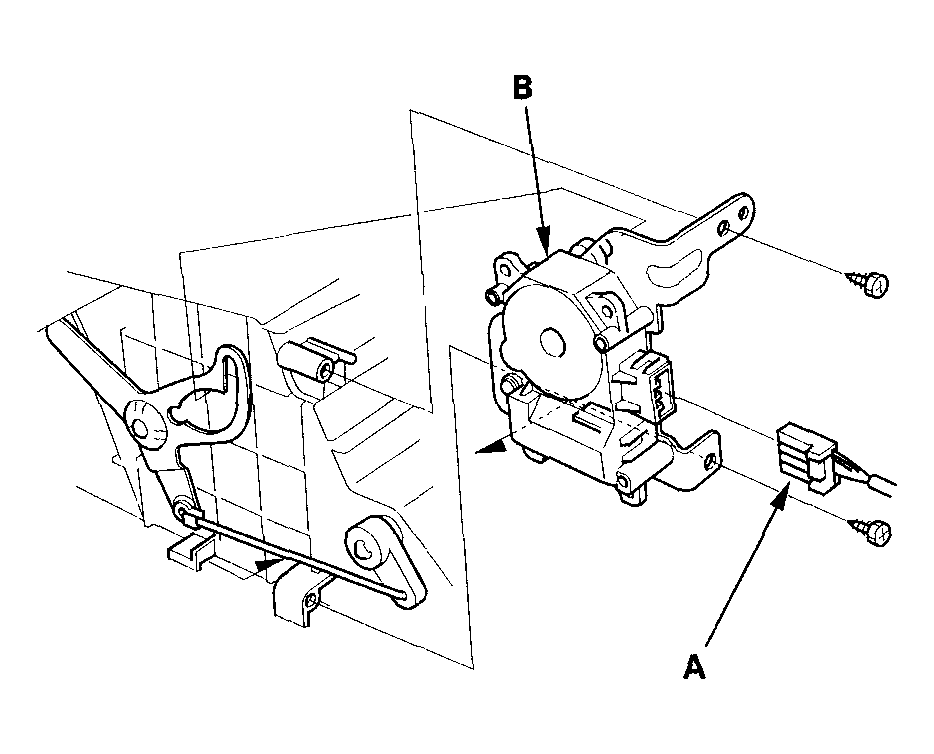

    Fig 1: Disconnecting 7P Connector From Recirculation Control Motor
    G04246869Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
