Passenger's Under-dash Fuse/Relay Box
WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

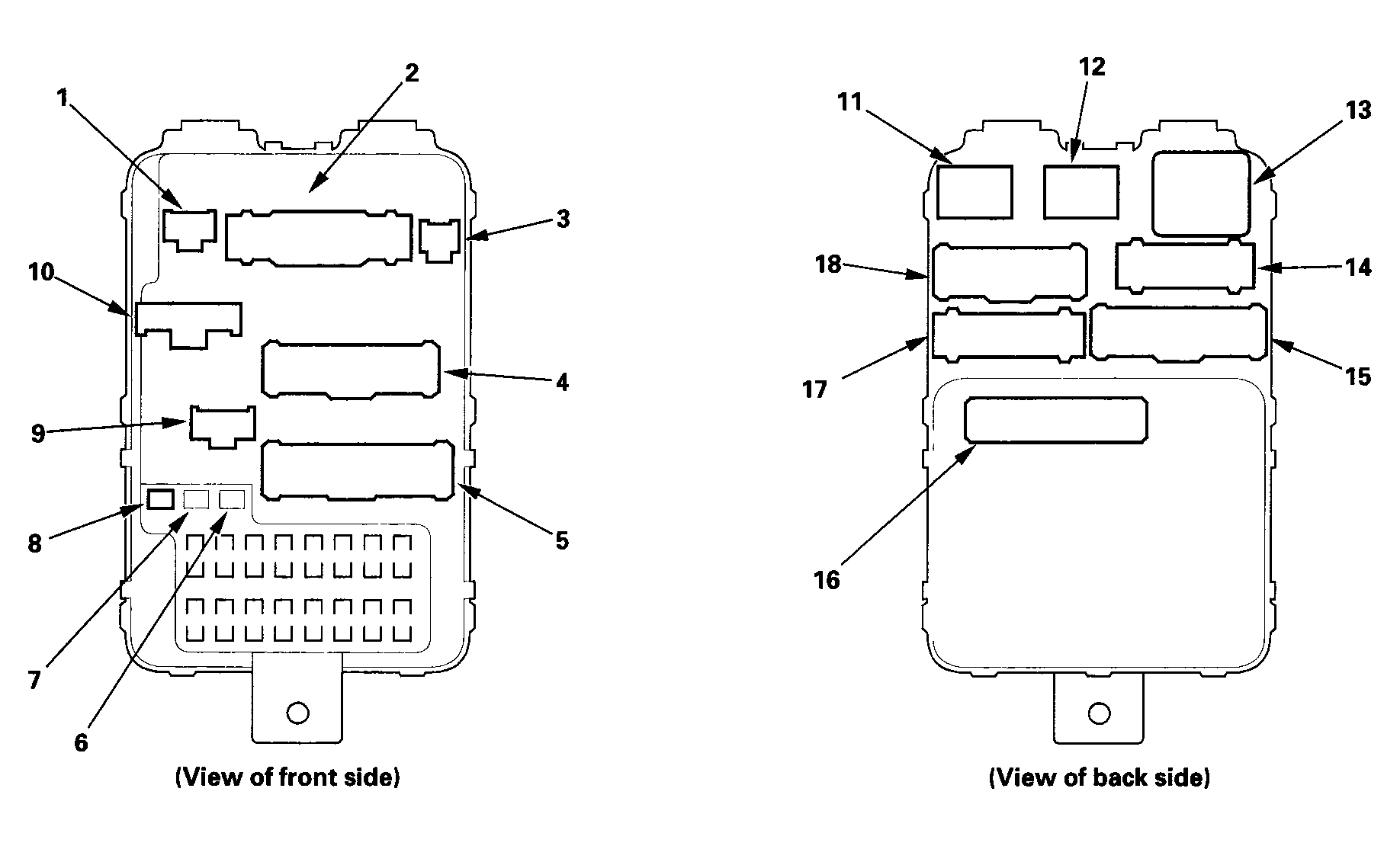

PASSENGER'S UNDER-DASH FUSE/RELAY BOX INDEX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 10 | 3 | RIGHT ENGINE COMPARTMENT WIRE HARNESS |
| Accessory power socket relay | 12 | 4 | |
| B | 4 | 18 | RIGHT ENGINE COMPARTMENT WIRE HARNESS |
| C | 5 | 20 | RIGHT SIDE WIRE HARNESS |
| D | 9 | 4 | FRONT PASSENGER'S DOOR WIRE HARNESS |
| Dimmer relay diode | 6 | - | Dimmer relay |
| Diode | 7 | - | Not used |
| Diode | 8 | - | Front passenger's door courtesy light |
| E | 2 | 20 | FRONT PASSENGER'S DOOR WIRE HARNESS |
| F | 3 | 2 | FRONT PASSENGER'S DOOR WIRE HARNESS |
| G | 15 | 18 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ) |
| H | 17 | 18 | Dashboard wire harness A (see DASHBOARD WIRE HARNESS A (RIGHT BRANCH) ) |
| I | 14 | 16 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (RIGHT BRANCH) ) |
| J | 18 | 16 | Dashboard wire harness B (see DASHBOARD WIRE HARNESS B (RIGHT BRANCH) ) |
| K | 1 | 3 | RIGHT ENGINE COMPARTMENT WIRE HARNESS (see ) |
| Passenger's multiplex control unit connector A | 16 | 24 | (Plugs directly into the fuse box) |
| Power window relay | 11 | 4 | |
| Rear window defogger relay | 13 | 4 |
