DVD-ROM Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When the DVD-ROM is re-inserted or replaced, a map match must be done (see MAP MATCHING ).
Make sure that the correct color DVD is installed (white).
Go on-line and check for any service bulletins or other service information regarding the navigation system.

Slide the passenger's seat (A) to the rear.

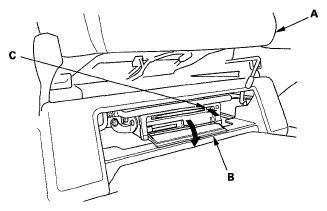

Fig 1: Opening Front Cover Of Navigation Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch ON (II).
Open the front cover (B) of the navigation unit.
Press the EJECT button (C).
Remove the DVD-ROM.
Insert the new DVD-ROM with the white label facing up.
Close the front cover.
- Do not turn the ignition switch OFF until data is down loaded to navigation unit.
NOTE: After servicing, the front cover must be closed. If you start up the navigation system with the front cover open, the display will indicate. "Navigation unit door is open or No DVD Disk installed. Please check system".
Do the Map Matching procedure after servicing (see MAP MATCHING ).
