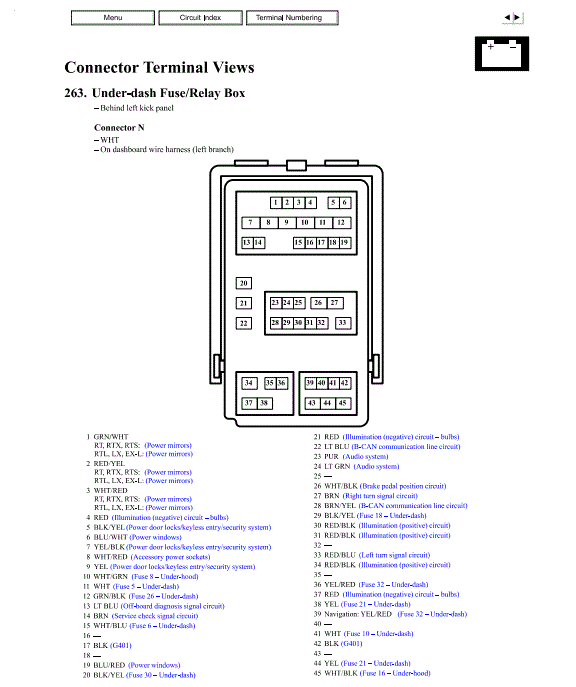

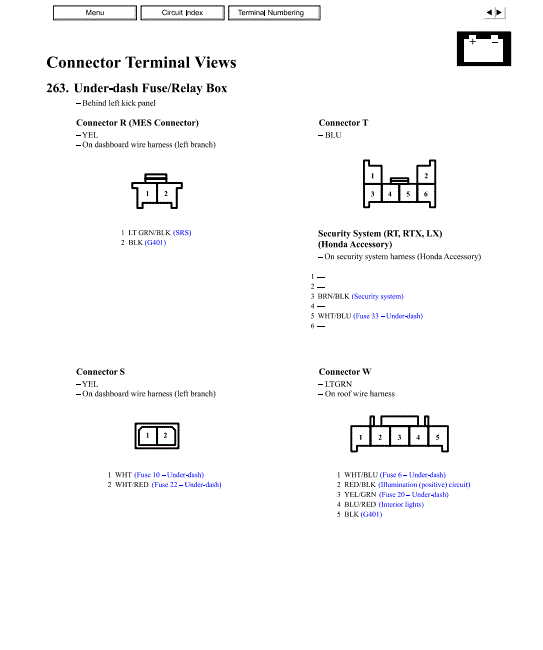

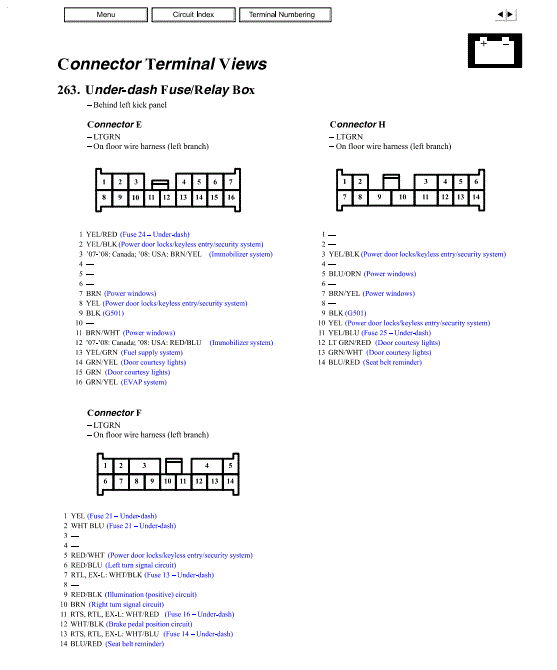

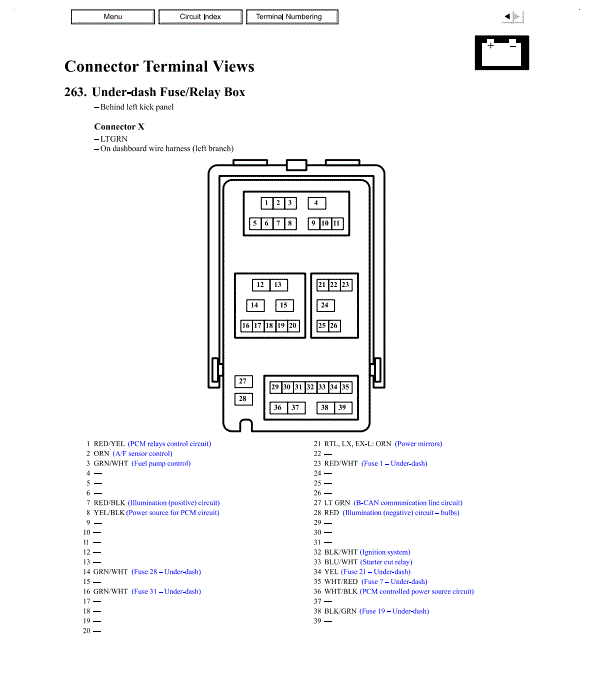

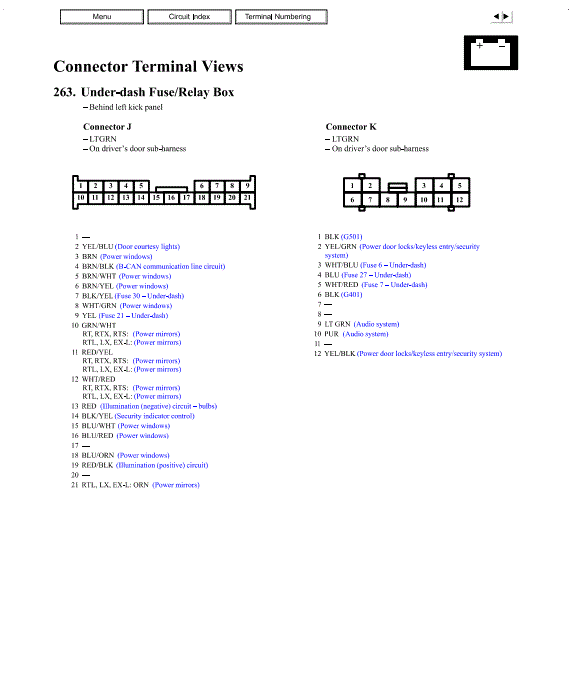

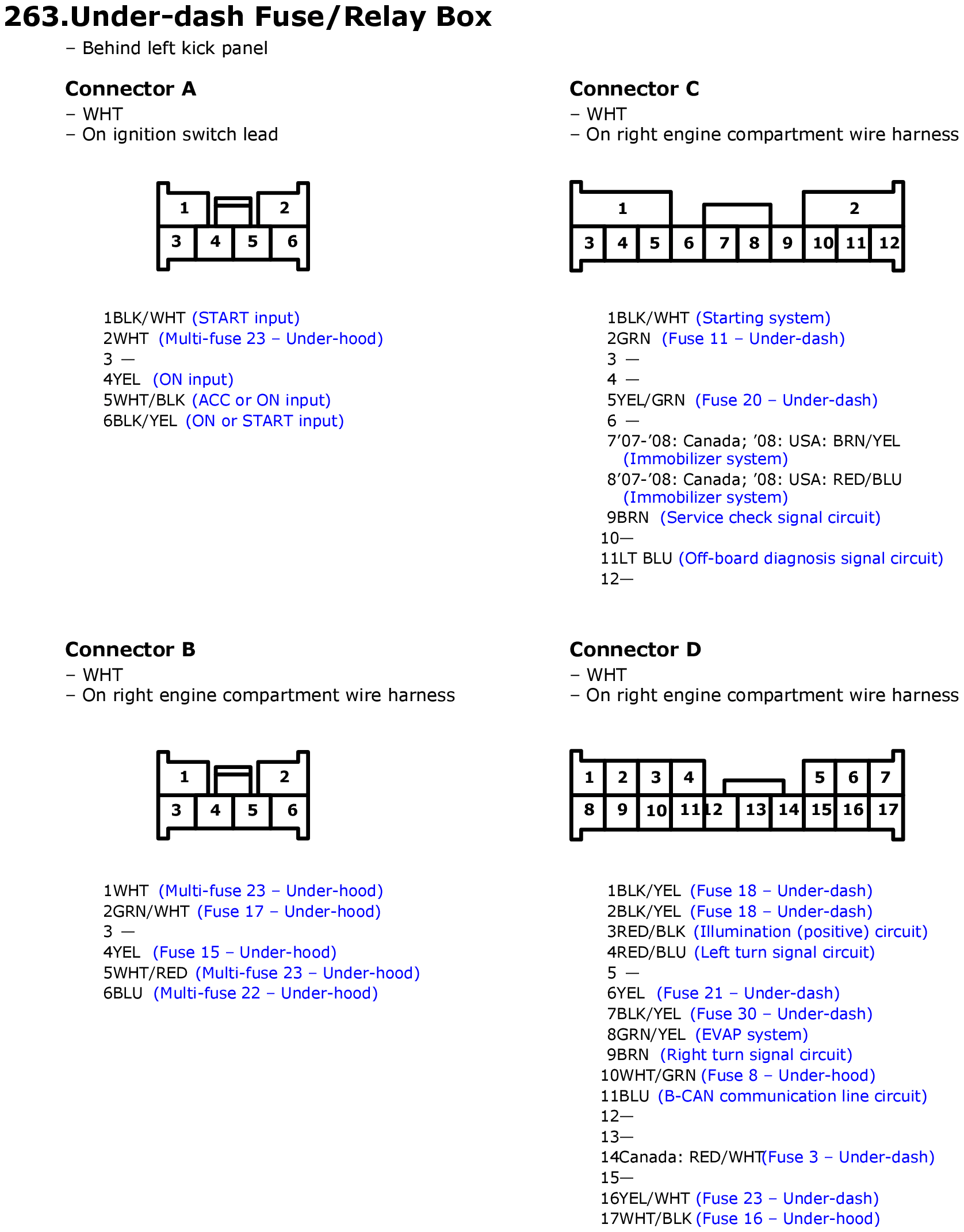

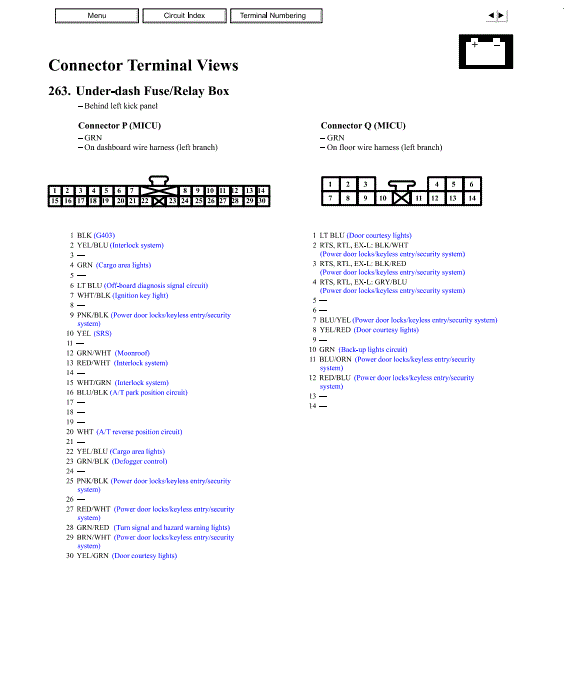

Under-Dash Fuse/Relay Box Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Courtesy of AMERICAN HONDA MOTOR CO., INC.
