Subframe Torque

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

After removing the subframe mounting bolts, be sure to replace them with new ones.

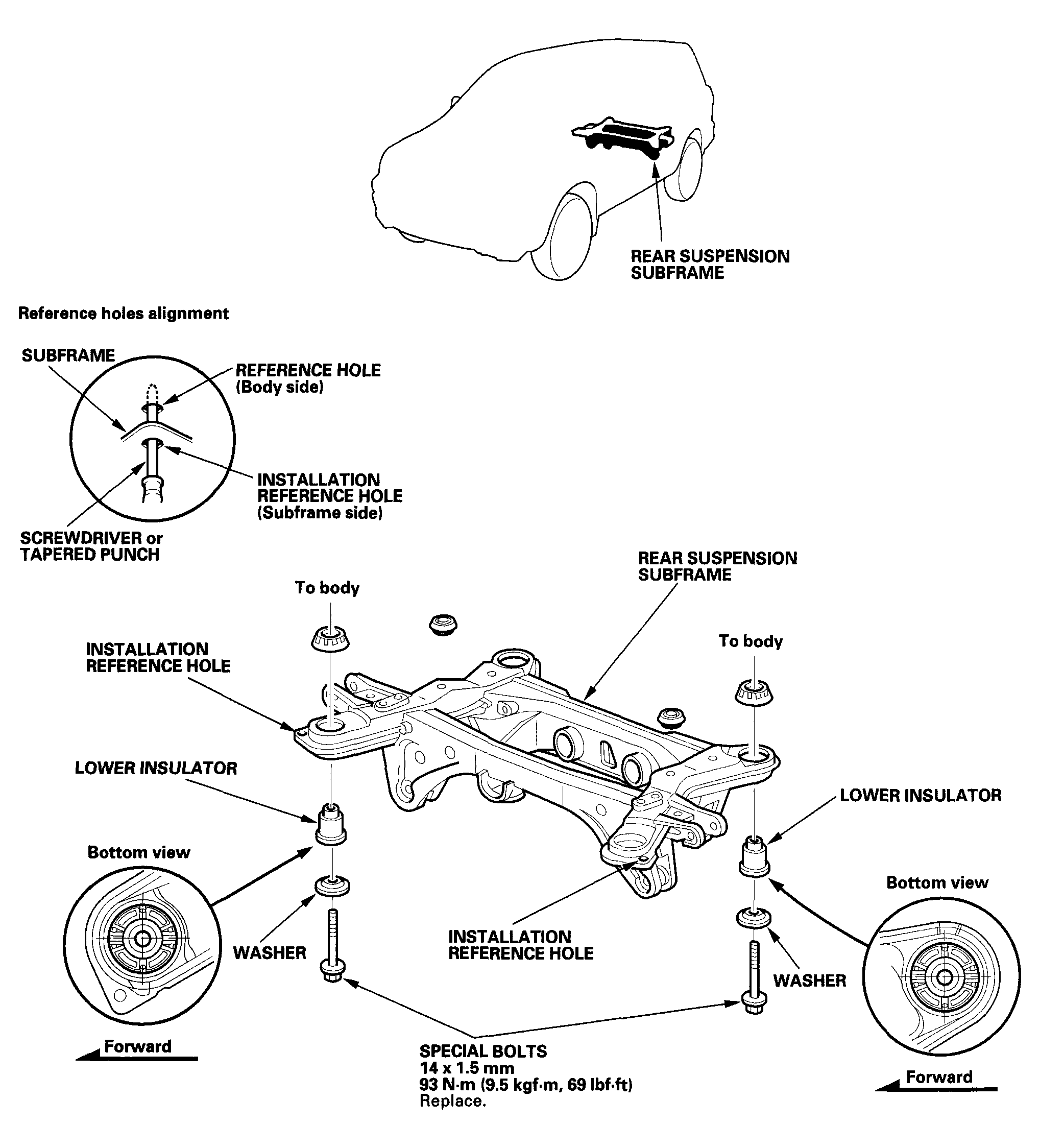

Fig 1: Replacing Rear Subframe With Torque Specifications
G04248430Courtesy of AMERICAN HONDA MOTOR CO., INC.
