Circuit Diagram
WARNING:
This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

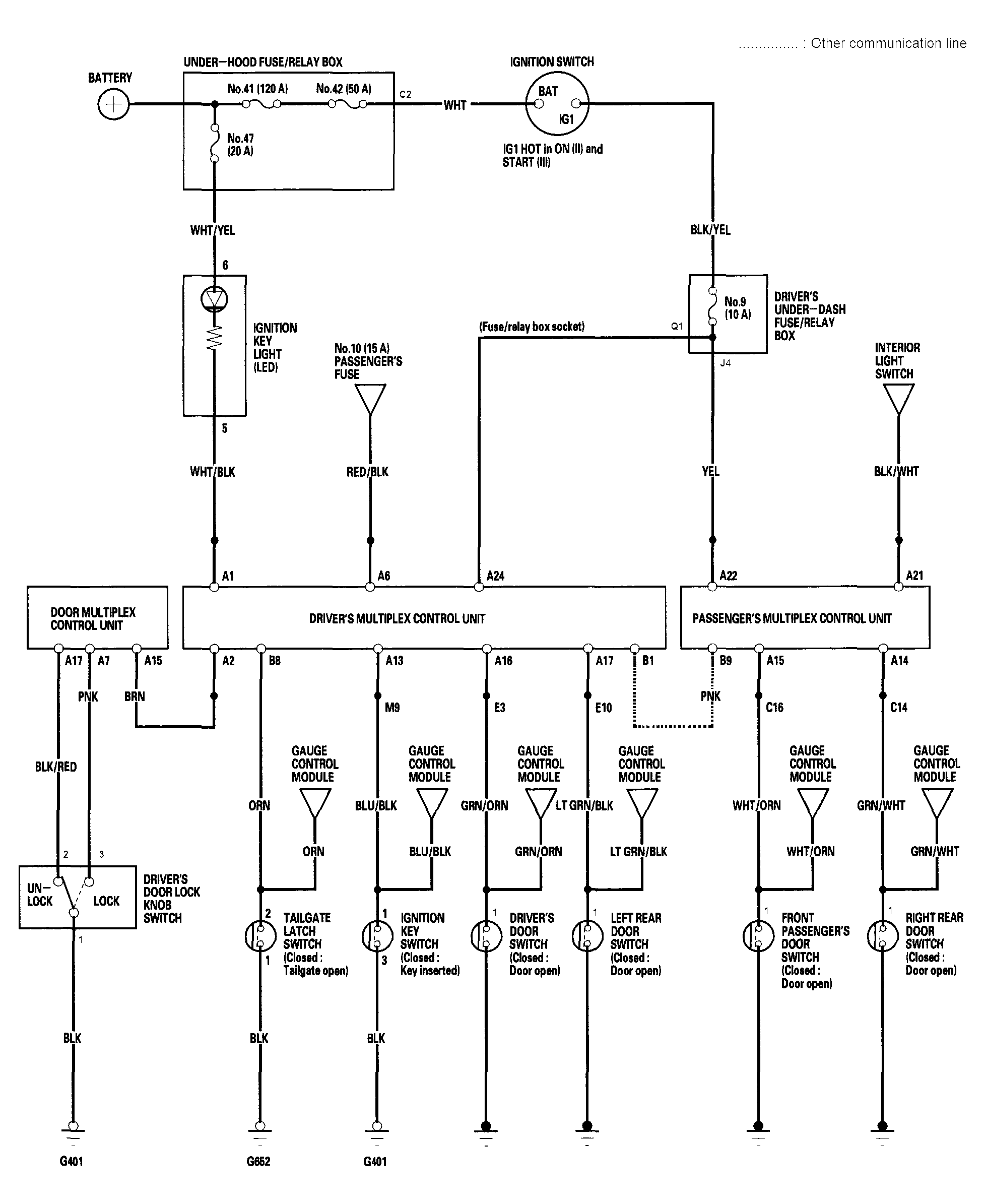

Fig 1: Entry Lights Control System - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
