Ignition Key Light Test

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column upper and lower covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 7P connector.
    NOTE: Lock tab (A) points down when installed.

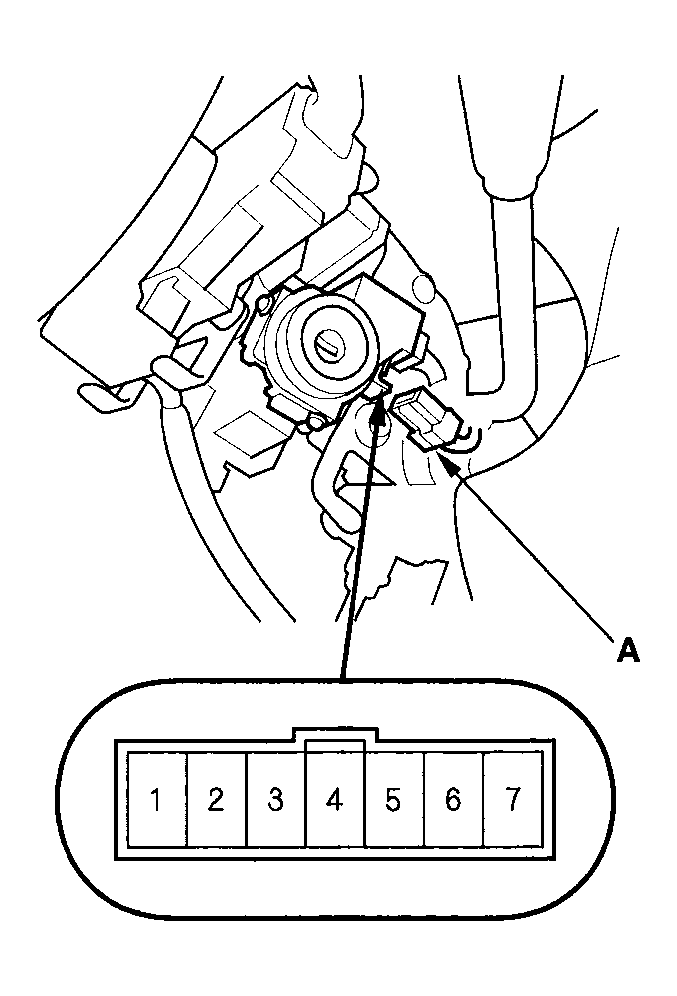

    Fig 1: Identifying Terminals Of 7P Connector
    G04247209Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. The LED should come on when power is connected to the No. 7 terminal and ground is connected to No. 6 terminal.
  4. If the LED does not come on, replace the ignition key switch.
