Programming and Relearning

Registration for Immobilizer System

1. Turn the ignition switch ON (II).
2. Connect the HDS to the data link connector.
3. Select IMMOBILIZER from the SYSTEM SELECT menu.

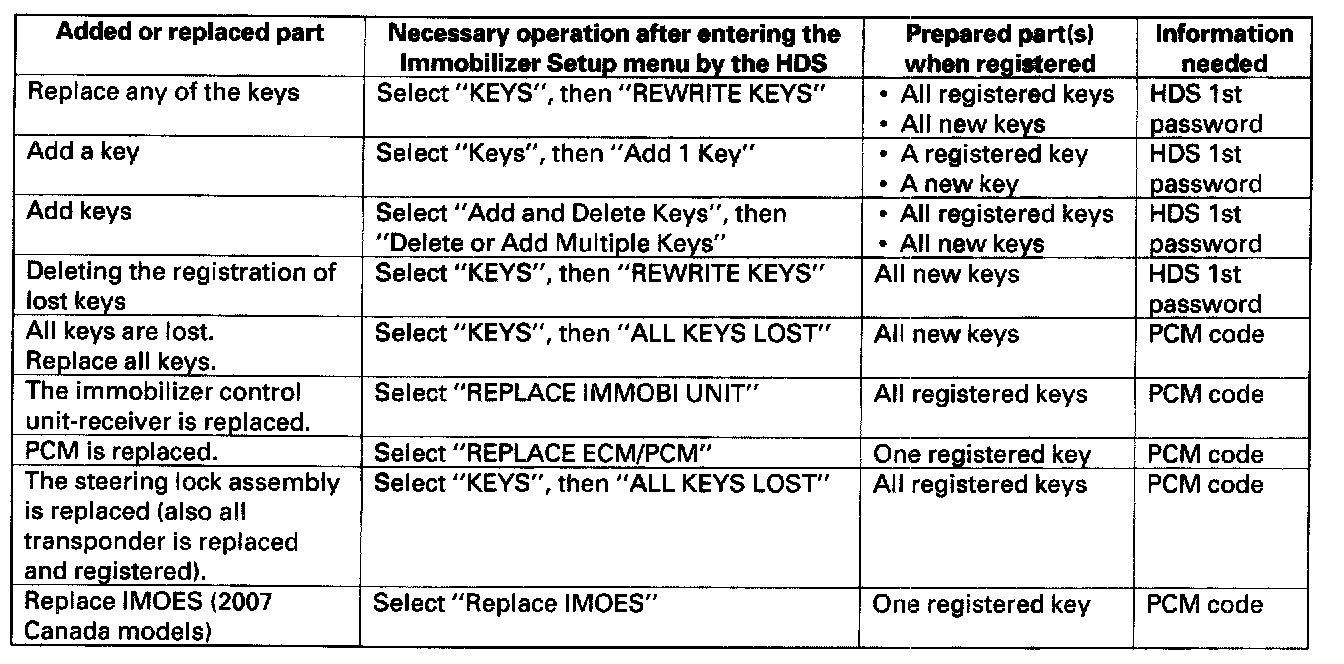

4. Select the suitable menu from the HDS indications as follows.

NOTE: The immobilizer control unit-receiver can store up to six transponder codes.
