Navigation Module: Locations

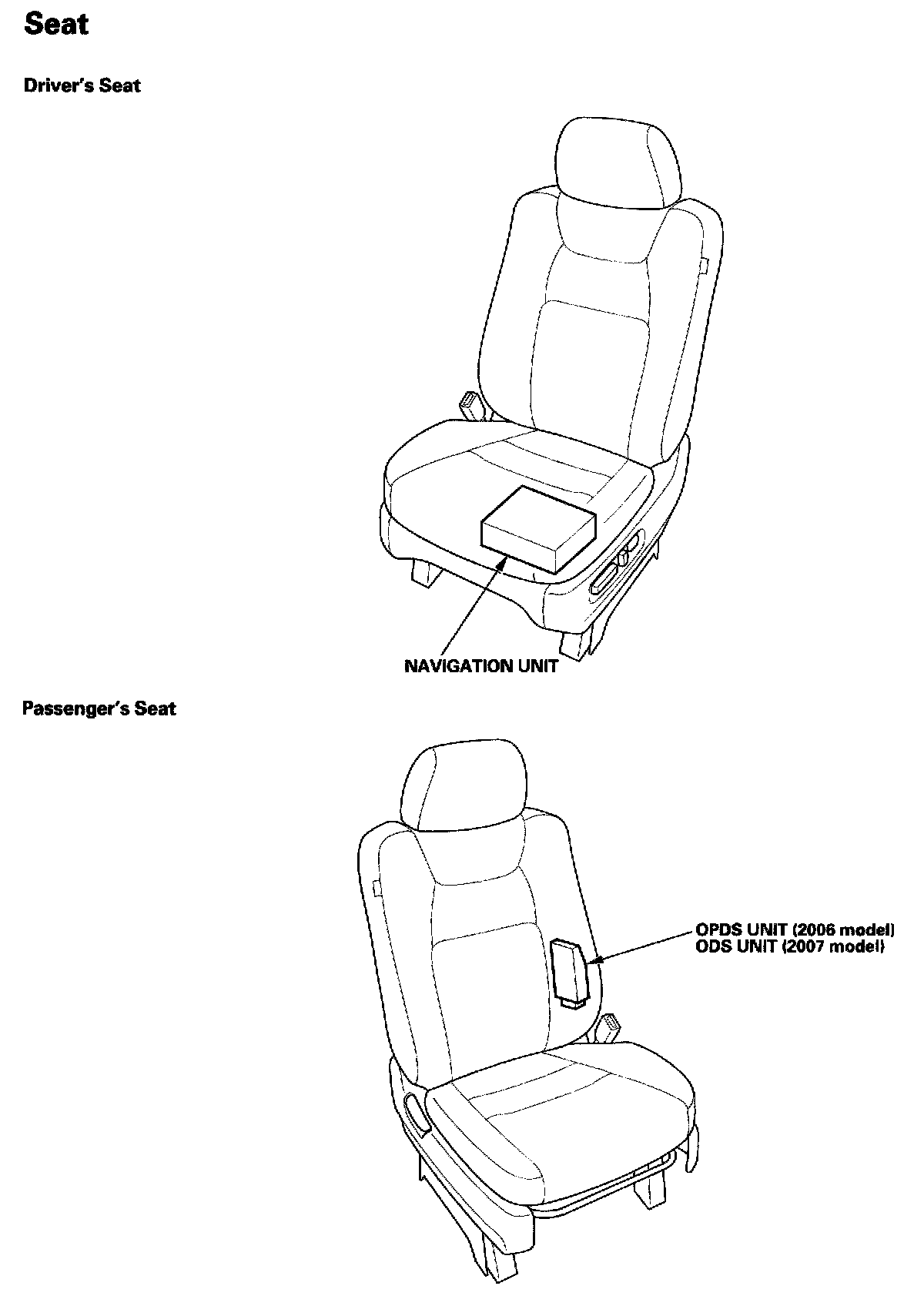

Relays And Control Unit Locations Seat:

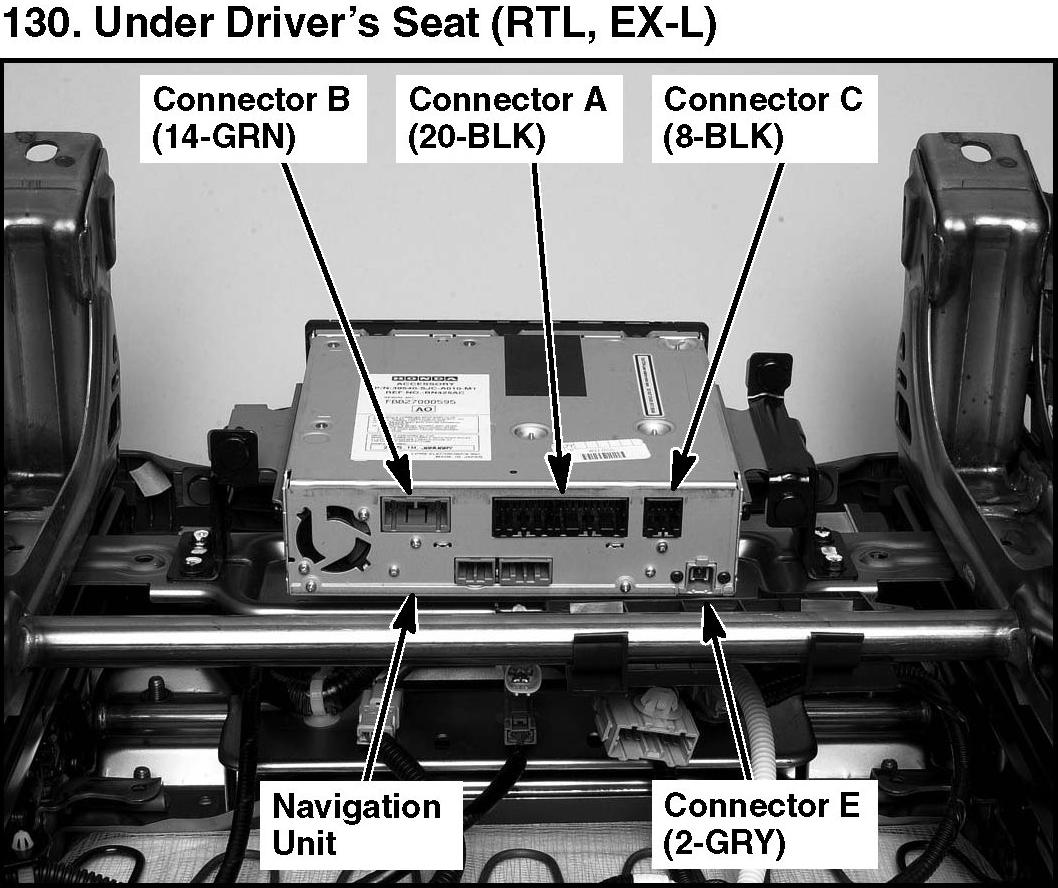

130. Under Driver's Seat (RTL, EX-L):

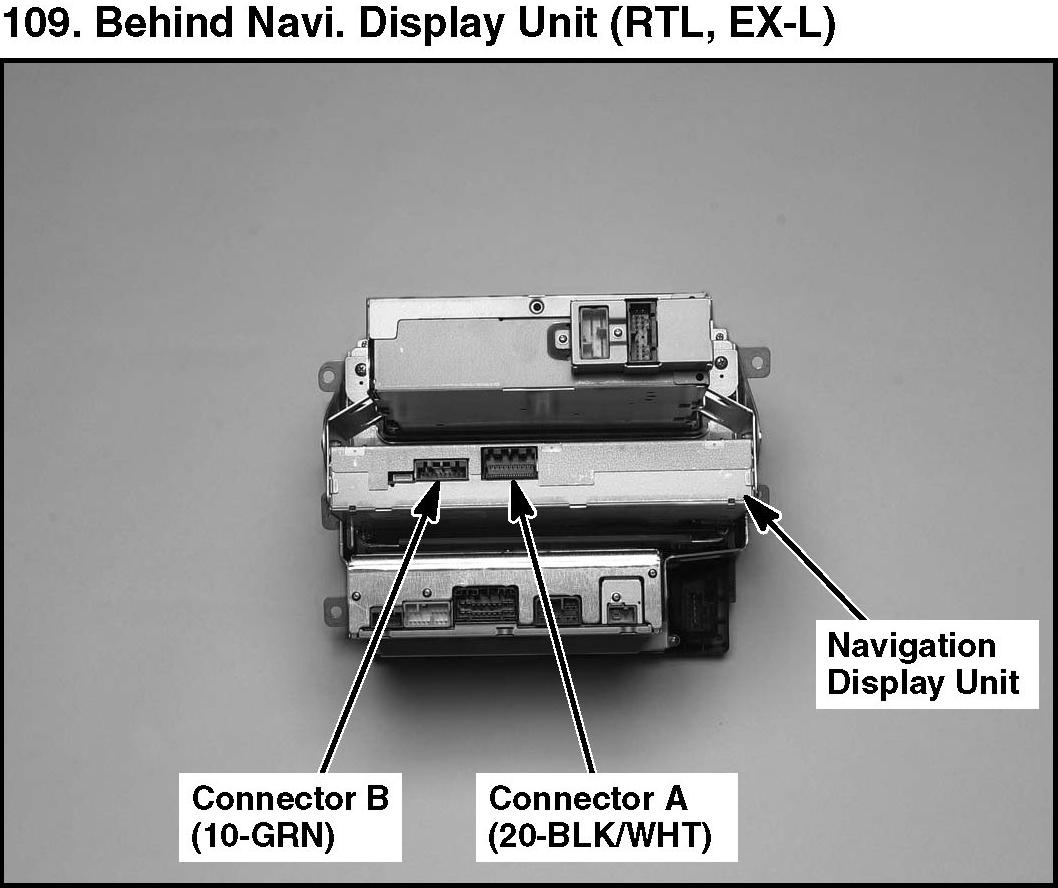

109. Behind Navi. Display Unit (RTL, EX-L):
