Navigation Connectors

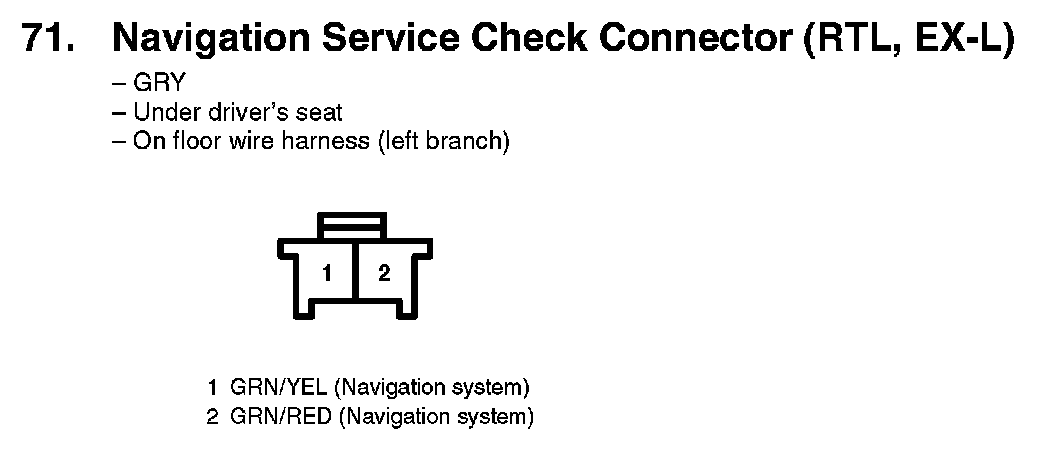

71. Navigation Service Check Connector (RTL, EX-L):

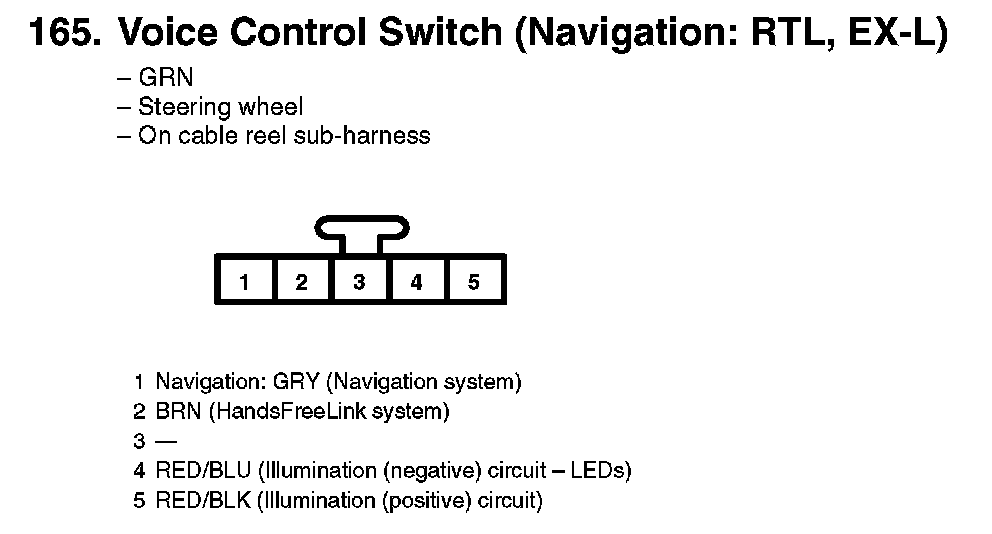

165. Voice Control Switch (Navigation: RTL, EX-L):
